Product Details:
|
| CPU: | Rockchip 3399 Hexa-Core | GPU: | Mali-T860MP4 |
|---|---|---|---|
| Camera: | MIPI / USB Type Supported | RTC: | YES |
| 4G Lte Network: | Optional | Network: | WIFI, BT, LAN, 4G Lte |
| USB: | USB 3.0 X2, USB 2.0 X4 | Expansion: | Micro SD Card |
| Highlight: | RK3399 Board with BT 5.3,RK3399 Board with USB 3.0,Mali-T860MP4 RK3399 Board |
||
RK3399 advertising Board digital signage full hd embedded display board for vending machine POS device Medical application
Model: AD-B03

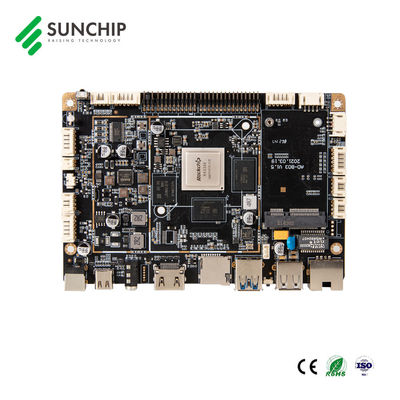

Meet the impressive AD-B03-V1.5 all-in-one board featuring a six-core RK3399 Android decoder.
Delivering superior performance and reliability, this board is sure to enhance your business operations.
If you're looking for flexible and reliable technology for your business, the AD-B03-V1.5 all-in-one board is the perfect option. It's essential tech for businesses that need enhanced productivity and impeccable performance every single time.
Intelligent industrial all in one board, using Rockchip RK3399 six-core chip program, support Google Android7.1 or higher system. Powerful computing power. Support H.265 4K video playback. Rich interface and enhanced power management circuit. Suitable for intelligent remote network control: industrial, medical, large advertising, educational video terminals and other equipment.
--It also supports 7-inch to 84-inch LVDS interface displays (point-to-point full HD display 1920*1080) and EDP interface display.
--Multiple interactive mode interfaces: capacitive touch, infrared touch, infrared remote control, USB mouse and keyboard, multi-point optical touch.
--A variety of network interfaces: Ethernet, 4G, WIFI, Bluetooth.
--Multi-channel USB interface, serial output.
--Support 4K video play with HD-MI 2.0 HD output.
--Strong anti-electromagnetic interference and electromagnetic compatibility.
RK3399 Android 7 9 10 development motherboard industrial level PCBA board for digital signage player and digital menu etc.
| Operating system | Android 7.0 and above |
| Basic software function | Web browsing, email, e-book, resource manager |
| Sound mode | Clock, alarm clock, calculator, recording |
| Voice support | Multinational voice |
| Recording | Support MP3, WMA format recording |
| Network | With RJ45 interface, support 10/100/1000 Ethernet |
| Support 4G PCIE interface | |
| With WIFI & BT module, support Wi-Fi 802.11a / b / g / n / ac protocol. Support BT 5.0 | |
| Image rotation | Support 0 degree, 90 degrees, 180 degrees, 270 degrees manual / automatic rotation, support gravity sensing function |
| Real Time Clock | External real-time clock power supply battery |
| Interface device | Support MIPI camera x2 |
| USB HOST x 3 (support usb camera@500W usb printer, U disk, mouse, keyboard and standard USB peripherals), 1x USB3.0 | |
| 3x UART/(2 UART, 1 SPI), support external serial device (NFC module, printer, card reader, etc.) | |
| TF card, maximum support 64GB | |
| Class D amplifier: 5W*2 8 ohms, support microphone | |
| HDMI 2.0 output | |
| Audio | MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, 3GPP format |
| Video | Supports H.264, MPEG2, VP6, VP8, MVC and other video formats. Online videos such as YouTube, up to 4K, HTML5 video playback, Flash 10.1 playback |
| Picture | Support JPG, BMP, PNG, GIF and other image formats to browse and support rotation / image enlargement |
| Power Adapter | Input:AC100-240V.50-60HZ, Output: DC12V/3A |
| CPU | Rockchip RK3399 dual core Cortex-A72+ quad core Cortex-A53 CPU |
| GPU | ARM Mali-T860MP4 GPU |
| Deposit | LPDDR4 4G |
| Built-in storage capacity | EMMC 8GB/16G/32G/64G optional (Default 16GB) |
| Display interface | LVDS interface (single, 6-bit dual, 8-bit dual). Supports a maximum resolution of 1920x1080, support 7"-84" display |
| EDP screen interface, support resolution 1920x1080 | |
| Screen voltage | Support 3.3V/5V/12V optional |
The Sunchip AD-B03 and AD-C39 are high-performance PCBA Android boards that are designed to cater to a wide range of industrial and commercial applications. These boards are equipped with the powerful RK3399 processor that delivers exceptional computing power, making them ideal for applications that require high-speed processing and graphics performance.
The Sunchip RK3399 boards are widely used in various scenarios, such as:
Our Product Customization Services for the Sunchip RK3399 Android Board (Model Number: AD-B03, AD-C39) include:
Available Customization that from Sunchip:
Regarding software:
1. Booting logo/animation
2. Model number of the Android System
3. Build number of the Android System
4. Pre-install APK
5. Delete APK
6. Set defaulted time zone
7. Set defaulted language
8. Virtual Keyboard (the current defaulted is English Keyboard)
9. Other requirements etc.
Regarding hardware: ODM layout
……More customization is waiting for your checking.
The RK3399 Board is a powerful single-board computer designed for a wide range of applications.
Sunchip support and Services:
1, More than 10 years of PCBA design and production experience.
2, A R&D team of more than 80 people, including hardware engineers (layout, debugging) and software engineers (drivers, kernels, testing, apk engineers).
ID Design engineer, Mechanical Design engineer, -> Support OEM/ODM.
3, Team of more than 160 people.
4, One-stop service: PCB design, prototype, production, PCBA SMT, testing, shell design, assembly, software customization, QC control, after-sales.
5, Got ISO9001 factory certification.
6, More than 3500 square meters of office and factory area
Q: Do you have any discount?
A: Based on the different quantities, better prices if better quantities.
Q: How about the lead time?
A: Samples 1-7 days, MP 25-30 days.
Q: What kinds of customization do you support?
A: Hardware customization, software customization, product silkscreen and label customization.
Q: What is the camera type does it can support?
A: MIPI and USB camera.
Q: What is the brand of your product screen ?
A: Usually, they are BOE, AUO, LG, Innolux, …
Q: Does it support RS485, RS232?
A: Some of models support RS232 port,but not support RS485,so, need to use RS232 or RS485 converter board.
Our main products:
-Android embedded motherboard
-4K/8K player box of media or industrial
-Different kinds of AIO lcd digital signage display machine
Let me know if any interest, will be happy to show you more details by return. thanks!
