Product Description:
Network Android Digital Signage Player Hardware Only, High-Performance Kiosk Processor and Octa-Core 8K Media Player
| System |
CPU |
RK3588 8-core CPU 8nm process 4 Cortex-A76 and 4 Cortex-A55 |
| GPU |
ARM Mali G610 MP4 GPU |
| NPU |
INT4/INT8/INT16/FP16 mixed computing capability with up to 6TOPs of computing power (INT8) |
| RAM |
8GB/16G (optional) |
| ROM |
32GB/64GB/128GB/256GB (optional) |
| OS |
Android 12 |
| Network |
WiFi |
IEEE 802.11 a/b/g/n/ac |
| Ethernet |
Support 1000M wired network network*2 |
| Mobile Network |
Support wireless 4G network |
| Bluetooth |
Bluetooth 5.0 |
Technical Parameters:

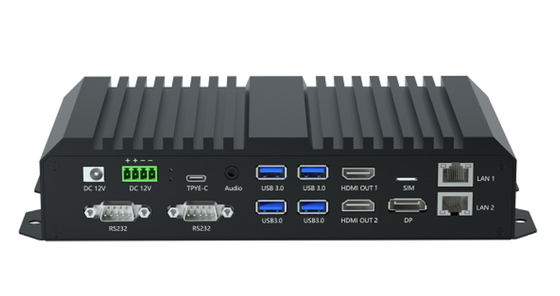

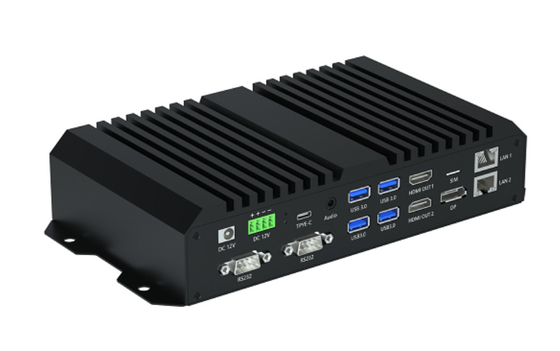

| Motherboard Interface |
TYPE_C |
Standard Type_c*1 |
| DC holder*1 |
Front 5.5/2.5mm |
| DC terminal input interface*1 |
4PIN pitch 3.81 terminal power input port*1 |
| Headphones |
3.5MM support stereo with MIC headphone output port |
| USB 3.0 |
USB 3.0_A port*2 |
| HDMI_OUT 1 |
Support HDMI 2.1 _OUT*1 (maximum support 7680*4320 60HZ output for single HDMI display) |
| SIM card |
SIM card port*1 |
| Ethernet port |
Support 10/100/1000M Ethernet*1 |

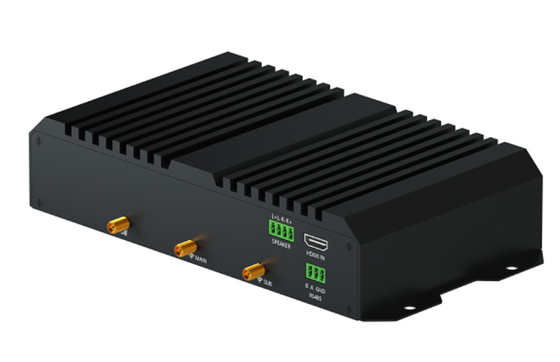

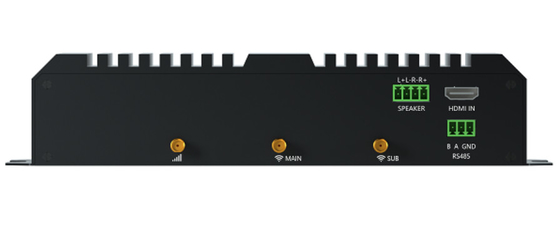

| Horn |
Dual channel 4 Europe 5W speaker interface 4PIN spacing 3.81mm green terminals * 1 |
| HDMI_IN |
Support HDMI 2.0_4K input*1 |
| Motherboard Interface |
RS232 COM port |
RS232 output port DB9*2 |
| USB 3.0 |
USB 3.0_A port*2 |
| HDMI_OUT 2 |
HDMI 4K 60HZ output*1 (this interface does not work when HDMI_OUT 1 is selected to output 8K) |
| DP display interface |
DP display output interface*1 7680x4320@30Hz output*1 |
| Ethernet port |
Support 10/100/1000M Ethernet*1 |
| M.2 internal SSD interface |
M.2 built-in SSD expansion interface*1 |
| RS485 |
RS485 3PIN pitch 3.81 green terminal block*1 |
Applications:
Customization:
Available Customization that from Sunchip:
Regarding software:
1. Booting logo/animation
2. Model number of the Android System
3. Build number of the Android System
4. Pre-install APK
5. Delete APK
6. Set defaulted time zone
7. Set defaulted language
8. Virtual Keyboard (the current defaulted is English Keyboard)
9. Other requirements etc.
Regarding hardware: ODM layout
……More customization is waiting for your checking.
Support and Services:
1, More than 10 years of PCBA design and production experience.
2, A R&D team of more than 80 people, including hardware engineers (layout, debugging) and software engineers (drivers, kernels, testing, apk engineers).
ID Design engineer, Mechanical Design engineer, -> Support OEM/ODM.
3, Team of more than 160 people.
4, One-stop service: PCB design, prototype, production, PCBA SMT, testing, shell design, assembly, software customization, QC control, after-sales.
5, Got ISO9001 factory certification.
6, More than 3500 square meters of office and factory area
Sunchip can provide AIO machine, can provide android board+ lcd touch panel, also can provide only android board.
Hardware and software solution are our biggest advantage.
8K Octa-Core: RK3588;
4K Hexa-Core: RK3399;
4K Quad-Core: RK3566, RK3568, RK3288, RK3328, RKPX30, RK3188, RK3128;
SUNCHIP ARM board Solution list:
RK3588, RK3566, RK3568, RK3399, RK3288, RK3328, RKPX30, RK3188, RK3128 etc.
Display interface: HDMI output, HDMI input, LVDS, EDP, MIPI.
Network optional: WIFI, Bluetooth, Ethernet, 4G, Optical.
FAQ:
Q: What is the product lifetime?
A: If the product is with lcd screen, usually it has 30K hours, 50K hours or other specification according to the screen datasheet. If it is not LCD product, 3~5 years.
Q: How did I trust your company?
A: SUNCHIP a software and hardware solution provider which has 12-year experience from Shenzhen, China. We have a good reputation in this industrial area when you check it with almost all of Shenzhen industrial suppliers.
Q: How long will you ship out the goods after I place the order on you?
A: If in-stock, usually, it’ll take 1-3 days to prepare and ship out. Before shipping, we should do aging testing and normal function testing, QC inspection, then, ship out. If out of stock and need to re-produce the goods, it will take different lead time.
For android board, android media player box, android LCD digital signage machine, will take about 15-30 days, depending the product quantities and types.
