Product Details:
|
| Cpu: | RK3588 | Touch Screen: | I2C Interface |
|---|---|---|---|
| Frequency: | 2.4GHz | Edp Interface: | Support Resolution 8K @60FPS |
| Bluetooth: | BT5.2 | Operating System: | Android 12 Version |
| Display Port: | HD, MIPI, EDP, LVDS, | Gpu: | ARM Mali-G610 MC4 |
| Highlight: | Android 12 Version Industrial ARM Board,Computer Industrial ARM Board,RK3588 Single Board |
||

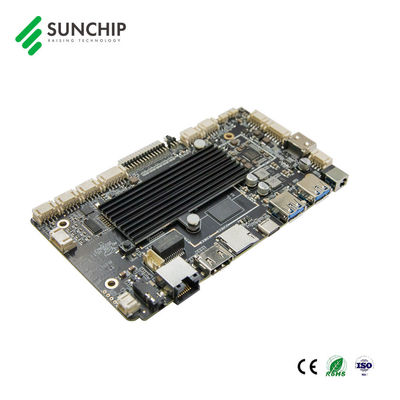

Model NO.: AD-C58
The Industrial ARM Board is equipped with an ARM Mali-G610 MC4 GPU, ensuring top-notch graphics performance for your industrial applications. It also boasts of 3 USB 2.0 and 3 USB 3.0 ports, providing ample connectivity options for your peripherals.
For display output, the Industrial ARM Board offers HD, MIPI, EDP, and LVDS ports, making it compatible with a wide range of displays. Additionally, it also supports touch screen input through its I2C interface, making it an ideal choice for applications that require user interaction.
Designed with industrial applications in mind, the Industrial ARM Board is built to withstand harsh environments. Its rugged construction ensures reliable operation even in extreme temperatures and high humidity.
Whether you're looking for a vending machine control board or an Android OS control board for your industrial application, the Industrial ARM Board is the perfect choice. With its powerful GPU, ample connectivity options, and rugged construction, it's sure to meet your needs and exceed your expectations.
| CPU | Rockchip RK3588 octa-core 64-bit size core architecture,4*Cortex-A76 + 4*Cortex-A55 |
| Main frequency | The main frequency of the large core is 2.1GHz, and the main frequency of the small core is 1.7GHz |
| GPU | ARM Mali-G610 MC4 |
| OpenGL ES 1.1/2.0/3.1/3.2 | |
| Vulkan 1.1,1.2 | |
| OpenCL 1.1,1.2,2.0 | |
| Embedded high-performance 2D image acceleration module | |
| NPU | 6TOPS AI computing power, triple-core architecture, support int4/int8/int16/FP16/BF16/TF32, enabling various AI scenarios |
| Memory | 4GB/8GB/16GB(Up to 32GB)64bit LPDDR4/LPDDR4x |
| Built-in storage capacity | EMMC 32G/64G/128G/256G(optional) |
| Display interface | HDMI OUT(Up to 8K@60FPS) |
| HDMI IN(Up to 8K@60FPS) | |
| LVDS display interface | |
| EDP display interface | |
| MIPI display interface |
| Screen voltage | Support 3.3V/5V/12V optional | |
| Touch screen | Provide I2C interface (can support multi-point resistive touch, multi-point capacitive touch). Support USB multi-point infrared touch, multi-point acoustic wave touch, multi-point optical touch. | |
| Network | With RJ45 interface, support 10/100/1000M Ethernet. | |
| Equipped with AP6275S industrial WiFi-6 module SIDO/PCIE dual-channel Bluetooth WiFi module 2T2R 802.11 ax/ac/a/b/g/n Wi-Fi + BT 5.0 Module | ||
| Image rotation | Support 0-degree, 90-degree, 180-degree, 270-degree manual/automatic rotation, support gravity sensing function | |
| Real Time Clock | Built-in real-time clock powered by battery | |
|
Interface device |
Support MIPI interface camera, support 500W pixels | |
| 3 USB HOST 2.0 (4PIN2.0 spacing connectors) | All support usb camera@500W usb printer, U disk, mouse, keyboard, standard usb peripherals | |
| 2 USB HOST3.0 (standard interface) | ||
| 1 full-featured Type-C interface (OTG) | ||
| 3 sets of serial ports, support external serial device modules (NFC module, printer, card reader, etc.) | ||
| TF card, maximum support 128GB | ||
| Class D power amplifier: default 3W*2 8 ohms, support microphone | ||
| Audio | MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A,3GPP Format | |
| Video |
Support H.265/H.264/AV1/VP9/AVS2 video decoding, up to 8K60FPS Support H.264/H.265 video encoding, up to 8K30FPS |
|
| Picture | Support JPG, BMP, PNG and other image formats to browse and support rotation/slide show/image enlargement functions | |
| Power Adapter |
Input: AC100-240V.50-60HZ, Output: DC12V 3A (positive inside and negative outside) |
|
Product Name: Android Embedded ARM Board
Application Scenario: Industrial, Medical, Advertising machine, LCD digital signage, Education etc.
Application products:
It can be directly applied to a variety of products. Such as Computing Storage, Smart Robot, Game Equipment, Commercial Display, Medical Equipment, Vending Machine, Intelligent POS, Interactive Printer etc.
Available Customization that from Sunchip:
Regarding software:
1. Booting logo/animation
2. Model number of the Android System
3. Build number of the Android System
4. Pre-install APK
5. Delete APK
6. Set defaulted time zone
7. Set defaulted language
8. Virtual Keyboard (the current defaulted is English Keyboard)
9. Other requirements etc.
Regarding hardware: ODM layout
……More customization is waiting for your checking.
1, More than 10 years of PCBA design and production experience.
2, A R&D team of more than 80 people, including hardware engineers (layout, debugging) and software engineers (drivers, kernels, testing, apk engineers).
ID Design engineer, Mechanical Design engineer, -> Support OEM/ODM.
3, Team of more than 160 people.
4, One-stop service: PCB design, prototype, production, PCBA SMT, testing, shell design, assembly, software customization, QC control, after-sales.
5, Got ISO9001 factory certification.
6, More than 3500 square meters of office and factory area
Here are the frequently asked questions and answers for the Sunchip Industrial ARM Board AD-C58:
Q1. What is the brand name of this product?
A1. The brand name of this product is Sunchip.
Q2. What is the model number of this product?
A2. The model number of this product is AD-C58.
Q3. Where is this product made?
A3. This product is made in China.
Our main products:
-Android embedded motherboard
-4K/8K player box of media or industrial
-Different kinds of AIO lcd digital signage display machine
Let me know if any interest, will be happy to show you more details by return. thanks!
