Product Description:
Model: AD-B03 BOX (AD-0150)
RK3399 Hexa-Core Android 7-10 Gigabit Ethernet Capacity DDR 32GB Signage Box Android Box with Various HD screen Support

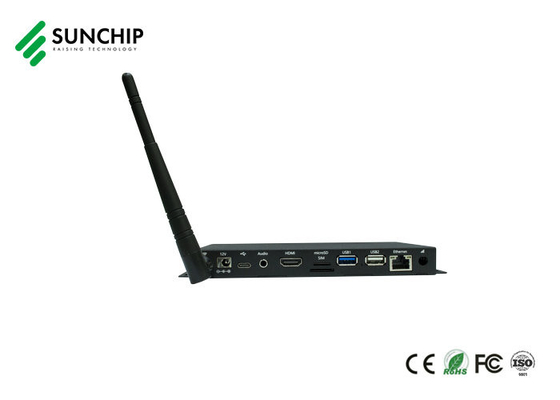

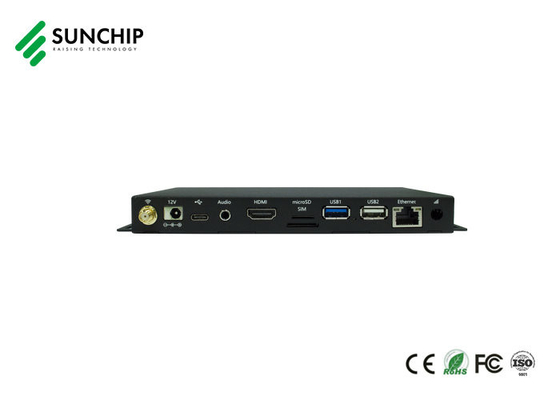

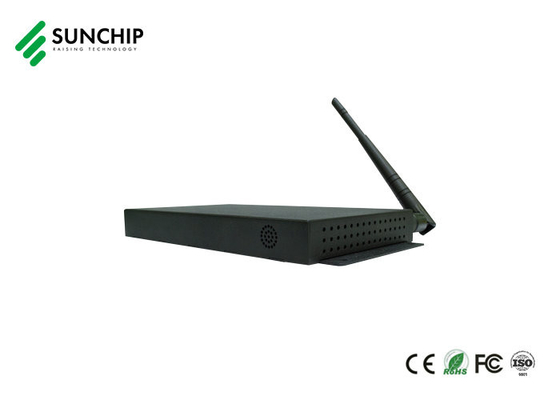

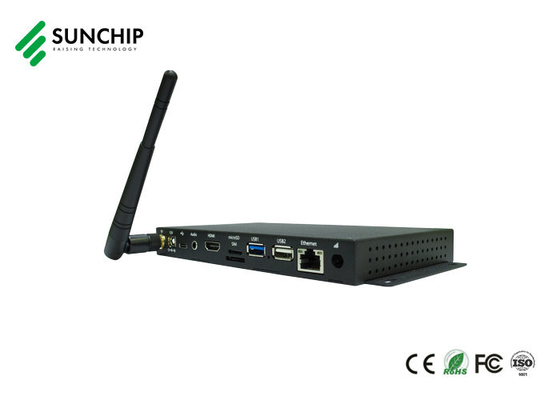

Sunchip Android Media Player Box for Digital Signage
The Sunchip Android Media Player Box is specifically designed for industrial grade applications where Full HD or 4K video playback is required. This media player is equipped with optional WIFI, Bluetooth, Ethernet, Optical and 4G functions to ensure seamless connectivity.
Metal Case and Heat Dissipation
The media player comes with a metal case that offers durability and longevity. The casing features multiple holes and a heat sink to provide the best heat dissipation in industrial settings.
Auto Rotation and G-Sensor
The media player comes with a G-sensor that enables automatic or manual rotation of the display. This feature is highly useful when displaying digital signage content in portrait or landscape mode.
Android OS
The media player runs on Android 7.1 OS and is upgradeable to the latest Android 10 OS version. This ensures compatibility with the latest applications and maximum performance.
24/7 Operation Support
The media player is designed to run 24/7 without any downtime. This makes it ideal for digital signage applications that require uninterrupted operation.
CMS Support
The media player is CMS supported, enabling easy content management and scheduling. Users can choose from a wide range of CMS options to suit their requirements.
| System |
CPU |
RK3399 dual core Cortex-A72+quad core Cortex-A53,GPU ARM Mali-T860MP4 |
| RAM |
4GB/8GB(optional) |
| ROM |
16GB/32GB/64GB(optional) |
|
|
|
|
|
|
| OS |
Android 7-10 |
|
|
|
|
|
|
|
|
| Network |
WiFi |
802.11ac/a/b/g/n (2.4G/5G optional) |
| Ethernet |
10M/100M/1000M Ethernet |
| Mobile Network |
Support full Netcom 4G (optional) |
| Bluetooth |
Bluetooth 5.2 |
Technical Parameters:
| Interactive |
Interactive mode |
Support infrared remote control, support external expansion |
| Interfaces |
USB interface |
Support USB2.0 host*1 +USB3.0 HOST*1 |
| Type-c interface |
Type-c*1 |
| DC |
DC power 12V input |
| TF card |
Maximum support 64GB |
| sim card slot |
4G MINI PCIE port |
| HDMI |
Support HDMI_4K 2.0 out |
| Screen interface |
EDP screen interface_2K output / LVDS screen interface 1080P output(optional) |
| speaker |
8Ω*5W * 2(optional) |
| UART |
UART2*1(optional) |
| RJ45 |
Ethernet port |
| Headset |
3.5mm stereo headphone output |
Applications:
Introducing the Android Embedded ARM Board -- an ideal product for various industries such as Industrial, Medical, Advertising machines, LCD digital signage, Education, and more. This compact and powerful board enables seamless integration into a wide range of applications.
Application Scenario:
- Industrial
- Medical
- Advertising machines
- LCD digital signage
- Education
Application products:
The Android Embedded ARM Board can be directly applied to various products within different industries, including:
- Computing Storage
- Smart Robot
- Game Equipment
- Commercial Display
- Medical Equipment
- Vending Machine
- Intelligent POS
- Interactive Printer
Customization:
Available Customization that from Sunchip:
Regarding software:
1. Booting logo/animation
2. Model number of the Android System
3. Build number of the Android System
4. Pre-install APK
5. Delete APK
6. Set defaulted time zone
7. Set defaulted language
8. Virtual Keyboard (the current defaulted is English Keyboard)
9. Other requirements etc.
Regarding hardware: ODM layout
……More customization is waiting for your checking.
Support and Services:
Packing and Shipping:
FAQ:
Q: What is the working and storage temperature?
A: Working temperature 0~50℃,Storage temperature -20~60℃
Q: How about your defect rate?
A: less than 3/1000
Q: Can I have firmware OTA update?
A: Yes, USB OTA or Online OTA.
Q: How about the packing list for the android motherboard?
A: Based on different board style,60pcs or 90pcs/carton.
Q: Can you open the ROOT?
A: Yes.
Q: Can the OTG USB-A be USB-C?
A: Yes.
