Product Description:
Sunchip Android Media Player Box for Digital Signage
The Sunchip Android Media Player Box is designed for industrial grade applications, providing Full High Definition (FHD) and 4K playback capabilities.
With optional WIFI, Bluetooth, Ethernet, and 4G functions available, the Sunchip Media Player Box is a versatile device suitable for a range of use cases.
The metal case features multiple holes and a heat sink to provide the best possible heat dissipation and keep the device running smoothly.
In addition to its hardware features, the Sunchip Media Player Box also boasts a G-Sensor that allows for automatic or manual rotation.
Supporting Android operating system versions 11, the Sunchip Media Player Box can handle a variety of digital signage applications.
Thanks to its durable design and reliable performance, the Sunchip Media Player Box is capable of running 24 hours a day, 7 days a week without interruption.
For even more flexibility and control, the Sunchip Media Player Box is compatible with a range of Content Management Systems (CMS).

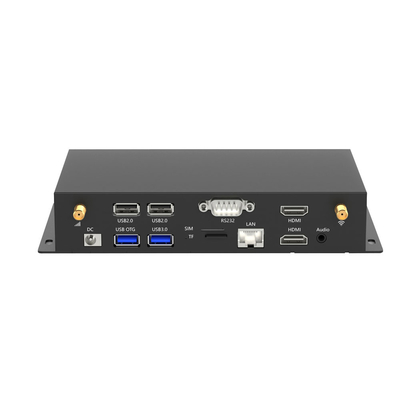

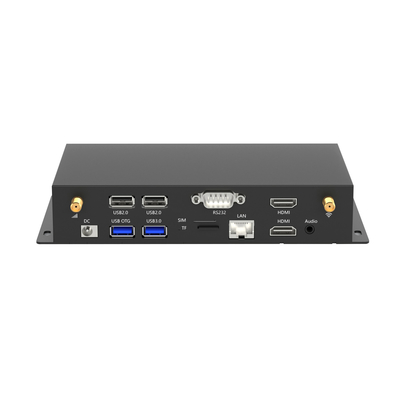

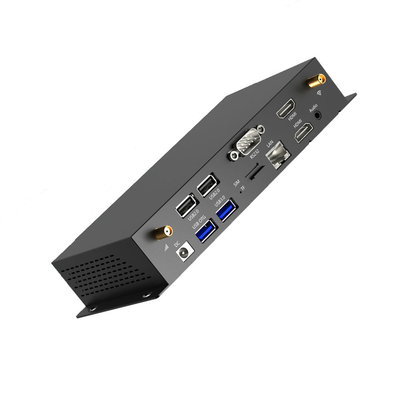

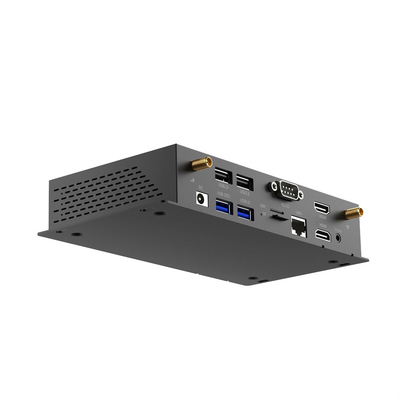

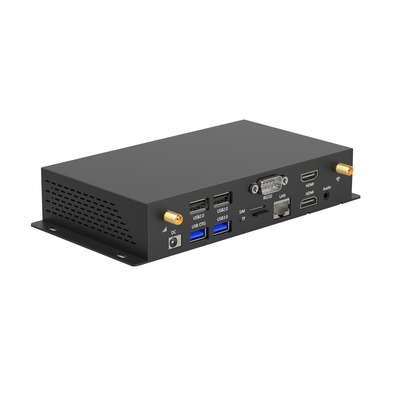

RK3568 Android 11 Metal Digital Signage Box Edge Computing Device GPU NPU AI For Digital Signage
Technical Parameters:
| System |
CPU |
Quad-core 64 bits Cortex-A55,main frequency up to 2.0GHz |
| GPU |
ARM G52 2EE, supporting OpenGL ES 1.1/2.0/3.2,OpenCL 2.0,Vulkan 1.1, Embedded with high performance 2D acceleration hardware |
| NPU |
Support 1T computing power |
| RAM |
2GB/4GB (optional) |
| ROM |
8GB/16GB/32GB/64GB (optional) |
| OS |
Android 11 |
| Network |
WiFi |
IEEE 802.11b/g/n (Optional) |
| Ethernet |
Support 10/100/1000M Ethernet |
| Mobile Network |
Support 4G lte netowkr (Optional) |
| Bluetooth |
Bluetooth 5.2 |
| Interfaces |
Upper Layer Interfaces |
RS232 |
RS232 Male DB9*1 |
| USB 2.0 |
USB 2.0_A *2 |
| HDMI_OUT_2 |
HDMI-A display port and support 1920*1080 60HZ output |
| Lower Layer Interfaces |
DC*1 |
DC_12V input and 5.5*2.1mm plug |
| Earphone |
3.5mm and support Stereo headphone output |
| USB_OTG |
USB_A *1 |
| USB 3.0 |
USB 3.0_A *1 |
| HDMI_OUT_1 |
HDMI-A 2.0 display output(Support 3840*2160 60HZ output) |
| SIM Card Slot |
SIM Card Slot *1(Optional) |
| Extended Memory port |
TF Card Slot *1 |
Applications:
Customization:
- Brand Name: Sunchip
- Model Number: AD-0130, AD-0140, AD-0150, AD-0146, AD-0160
- Place of Origin: China
- Certification: ISO 90001, ISO 27001 ,CE, ROHS
- Minimum Order Quantity: 2pcs
- Price: Negotiation
- Packaging Details: 1pc/box
- Delivery Time: 1-5days
- Payment Terms: TT in advance
- Supply Ability: 60000/Month
- GPS support: Yes, Optional
- Material: Metal
- Ethernet: 100M LAN Or 1000M LAN, Gigabit Ethernet X2
- BT Support: Yes, BT5.2
- Display support: HD X1 Or HD X2, Or /DP/Type-C
- Customization Options: RK3288 digital signage box, industrial AI player box, RK3588 digital signage box
Support and Services:
Available Customization that from Sunchip:
Regarding software:
1. Booting logo/animation
2. Model number of the Android System
3. Build number of the Android System
4. Pre-install APK
5. Delete APK
6. Set defaulted time zone
7. Set defaulted language
8. Virtual Keyboard (the current defaulted is English Keyboard)
9. Other requirements etc.
Regarding hardware: ODM layout
……More customization is waiting for your checking.
digital signage media player
advertising player
lcd advertising player
open frame lcd display
wall mounted advertising display
Packing and Shipping:
Product Packaging:
- Media Player device
- Power adapter
Shipping Information:
- Shipping method: Standard Shipping
- Expected delivery time: 5-7 business days
FAQ:
Q: Are you trading company or factory?
A: We are OED & ODM factory, and we have own hardware and software R&D team.
Q: How can I pay for samples and bulk order?
A: bank T/T,PayPal, Alibaba platform,West link,all of them are acceptable.
Q: What is the warranty time?
A: Defaulted 1-year. If need to add the warranty time, price will be increased.
Q: Do you have any discount?
A: Based on the different quantities, better prices if better quantities.
Q: How about the lead time?
A: Samples 1-7 days, MP 25-30 days.
Q: What kinds of customization do you support?
A: Hardware customization, software customization, product silkscreen and label customization.
