Product Description:

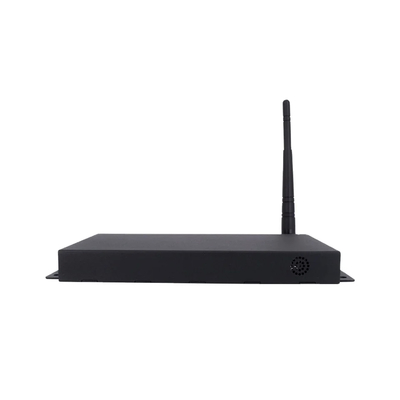

Signage Player Full Black High-Performance Kiosk Processor and 4K Media Player RK3288 Quad-Core
Model: AD-0140 (AD-B02P BOX)
Sunchip Android Media Player Box for Digital Signage:
The Sunchip Android Media Player Box is an ideal solution for industrial-grade digital signage applications.
This FHD & 4K media player box boasts optional WIFI, Bluetooth, Ethernet, Optical, and 4G functions to meet your specific needs.

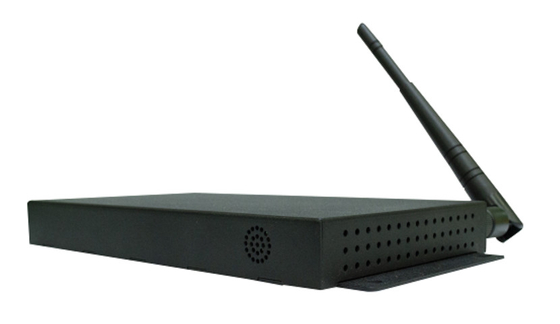

The metal casing is equipped with lots of holes for the best heat dissipation, and also houses a heat sink to keep the device cool during prolonged use.
Additionally, the box features a G-sensor for automatic or manual rotation, making it versatile and ideal for various digital signage setups.
The Sunchip Android Media Player Box runs on Android 7.1 up to Android 10 OS version, ensuring compatibility with various software versions and applications. Its 7*24 hours working capability ensures that it can operate without stopping, and it also supports CMS for options for easy remote management.
Technical Parameters:
| System |
CPU |
RK3288 quad-core Cortex-A17 @1.8G GPU Mali T764 |
| RAM |
2GB/4GB (optional) |
| ROM |
16GB/32GB(optional) |
| OS |
Android 6-10 optional |
| Network |
WiFi |
802.11b/g/n (2.4G/5G optional) |
| Ethernet |
10M/100M Ethernet |
| Mobile Network |
Support full Netcom 4G (optional) |
| Bluetooth |
Bluetooth 5.2 |
| Interactive |
Interactive mode |
Support infrared remote control, support external expansion |

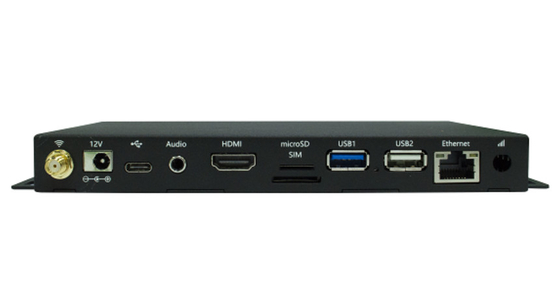

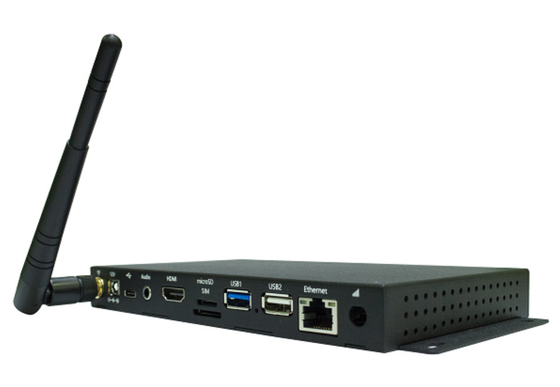

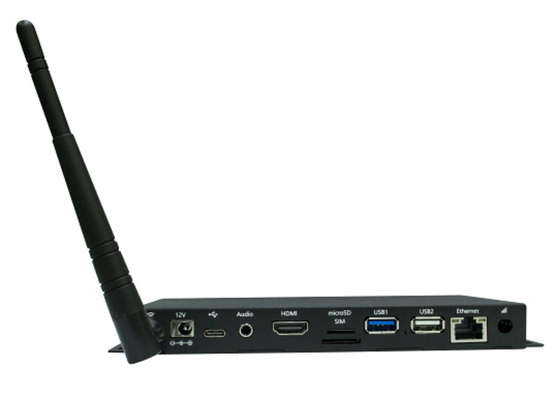

| Interfaces |
USB interface |
Support USB host*2 |
| TYPE-C |
type-c interface*1 |
| DC |
DC power 12V input |
| TF card |
Maximum support 64GB |
| sim card slot |
4G mini PCIE port |
| HDMI |
Support HDMI output |
| Screen interface |
EDP screen interface_2K output / LVDS screen interface 1080P output (optional) |
| speaker |
8Ω*5W * 2(optional) |
| UART |
UART3*1 (optional) |
| USB port expander |
USB port expandert*1 (optional) |
| RJ45 |
Ethernet port |
| Headset |
3.5mm stereo headphone output |
| Media play |
Video format |
MPEG-1,MPEG-2,MPEG-4,H.263,H.264,H.265,VC1,VP8,RV etc.,support up to 3840x2160 |
| Audio format |
MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP etc. |
| Text processing |
EPUB, WORD, EXCEL, POWERPOINT, PDF, |
| E-book |
PDF,TXT,CHM,DOC,EXCEL,EPUB,RTF,FB2 |
| Photo |
JPG,BMP,PNG |
system management |
APK install |
APK installer |
| Root permission |
Original ecological Android system, open root permissions, customizable development |
| Remote control |
Real-time remote monitoring, system crash self recovery, 7*24 hours unattended |
| OTA upgrade |
Support OTA remote upgrades |
| Others |
Dual display |
Support dual display different contents play(optional) |
| Gravity sensor |
Support 0°90°180°270°manual automatic rotation |
| Adapter |
Adapter |
12V/2A |
Applications:
Sunchip Android Media Player Box for digital signage:
(1) FHD & 4K media player Box is used for industrial grade application.
(2) WIFI/Bluetooth/Ethernet/Optical/4G functions optional
(3) Metal case, lots of Holes on the case, heat sink etc. for the best heat dissipation
(4) G-Sensor, rotation automatically or manually
(5) Android 7.1 until android 12 OS version
(6) 7*24hours for not-stopping working
(7) CMS supported for options
Customization:
Available Customization that from Sunchip:
Regarding software:
1. Booting logo/animation
2. Model number of the Android System
3. Build number of the Android System
4. Pre-install APK
5. Delete APK
6. Set defaulted time zone
7. Set defaulted language
8. Virtual Keyboard (the current defaulted is English Keyboard)
9. Other requirements etc.
Regarding hardware: ODM layout
……More customization is waiting for your checking.
Support and Services:
Our Media Player product comes with comprehensive technical support and services to ensure a seamless user experience.
Packing and Shipping:
About Sunchip:
FAQ:
Q: Are you trading company or factory?
A: We are OED & ODM factory, and we have own hardware and software R&D team.
Q: How can I pay for samples and bulk order?
A: bank T/T,PayPal, Alibaba platform,West link,all of them are acceptable.
Q: What is the warranty time?
A: Defaulted 1-year. If need to add the warranty time, price will be increased.
Q: Do you have any discount?
A: Based on the different quantities, better prices if better quantities.
Q: How about the lead time?
A: Samples 1-7 days, MP 25-30 days.
Q: What kinds of customization do you support?
A: Hardware customization, software customization, product silkscreen and label customization.
Q: What is the working and storage temperature?
A: Working temperature 0~50℃,Storage temperature -20~60℃
Q: How about your defect rate?
A: less than 3/1000
Q: Can I have firmware OTA update?
A: Yes, USB OTA or Online OTA.
Q: Can you open the ROOT?
A: Yes.
