Product Description:

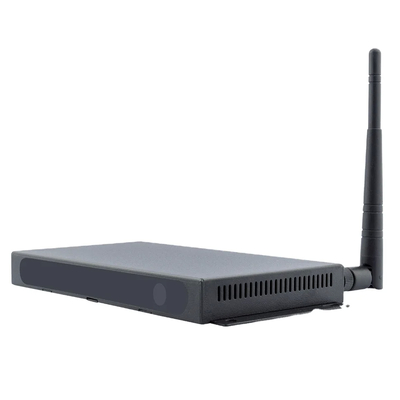

Black Media Player Network Android Digital Signage Player RK3288 Quad-Core 4K
Model: AD-0140 (AD-B02P BOX)
Sunchip Android Media Player Box for digital signage
The Sunchip Android Media Player Box is specifically designed for industrial grade applications and is perfect for digital signage needs with its FHD & 4K media player Box capabilities.
Multiple connectivity options are available including WIFI/Bluetooth/Ethernet/Optical/4G, ensuring that the device can connect to any type of network. The metal case provides durability and the design ensures the best heat dissipation with lots of holes on the case and a heat sink. Plus, the device is equipped with a G-Sensor which allows for automatic or manual rotation.
The Android 7.1 up until Android 10 OS version is supported, making the device future-proof and compatible with multiple operating systems.
The Sunchip Android Media Player Box is built for 24-hour non-stop working, ensuring that it can handle any workload. It can also be configured with a CMS for further customization and options.
Technical Parameters:
| System |
CPU |
RK3288 quad-core Cortex-A17 @1.8G GPU Mali T764 |
| RAM |
2GB/4GB (optional) |
| ROM |
16GB/32GB(optional) |
| OS |
Android 6-10 optional |
| Network |
WiFi |
802.11b/g/n (2.4G/5G optional) |
| Ethernet |
10M/100M Ethernet |
| Mobile Network |
Support full Netcom 4G (optional) |
| Bluetooth |
Bluetooth 5.2 |
| Interactive |
Interactive mode |
Support infrared remote control, support external expansion |
| Interfaces |
USB interface |
Support USB host*2 |
| TYPE-C |
type-c interface*1 |
| DC |
DC power 12V input |
| TF card |
Maximum support 64GB |
| sim card slot |
4G mini PCIE port |
| HDMI |
Support HDMI output |
| Screen interface |
EDP screen interface_2K output / LVDS screen interface 1080P output (optional) |
| speaker |
8Ω*5W * 2(optional) |
| UART |
UART3*1 (optional) |
| USB port expander |
USB port expandert*1 (optional) |
| RJ45 |
Ethernet port |
| Headset |
3.5mm stereo headphone output |
| Media play |
Video format |
MPEG-1,MPEG-2,MPEG-4,H.263,H.264,H.265,VC1,VP8,RV etc.,support up to 3840x2160 |
| Audio format |
MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP etc. |
| Text processing |
EPUB, WORD, EXCEL, POWERPOINT, PDF, |
| E-book |
PDF,TXT,CHM,DOC,EXCEL,EPUB,RTF,FB2 |
| Photo |
JPG,BMP,PNG |
system management |
APK install |
APK installer |
| Root permission |
Original ecological Android system, open root permissions, customizable development |
| Remote control |
Real-time remote monitoring, system crash self recovery, 7*24 hours unattended |
| OTA upgrade |
Support OTA remote upgrades |
| Others |
Dual display |
Support dual display different contents play(optional) |
| Gravity sensor |
Support 0°90°180°270°manual automatic rotation |
| Adapter |
Adapter |
12V/2A |
Applications:
Sunchip Android Media Player Box for digital signage:
(1) FHD & 4K media player Box is used for industrial grade application.
(2) WIFI/Bluetooth/Ethernet/Optical/4G functions optional
(3) Metal case, lots of Holes on the case, heat sink etc. for the best heat dissipation
(4) G-Sensor, rotation automatically or manually
(5) Android 7.1 until android 12 OS version
(6) 7*24hours for not-stopping working
(7) CMS supported for options
Customization:
Available Customization that from Sunchip:
Regarding software:
1. Booting logo/animation
2. Model number of the Android System
3. Build number of the Android System
4. Pre-install APK
5. Delete APK
6. Set defaulted time zone
7. Set defaulted language
8. Virtual Keyboard (the current defaulted is English Keyboard)
9. Other requirements etc.
Regarding hardware: ODM layout
……More customization is waiting for your checking.
Support and Services:
Packing and Shipping:
About Sunchip:
FAQ:
Q: How about the lead time?
A: Samples 1-7 days, MP 25-30 days.
Q: What kinds of customization do you support?
A: Hardware customization, software customization, product silkscreen and label customization.
Q: How about your defect rate?
A: less than 3/1000
Q: Can I have firmware OTA update?
A: Yes, USB OTA or Online OTA.
Q: Can you open the ROOT?
A: Yes.
Q: Can the OTG USB-A be USB-C?
A: Yes.
Q: Can I replace the booting LOGO by myself?
A: Yes, you can do it by ADB command, but we also can help you to add it to the system and finally generate a new firmware.
