Product Description:

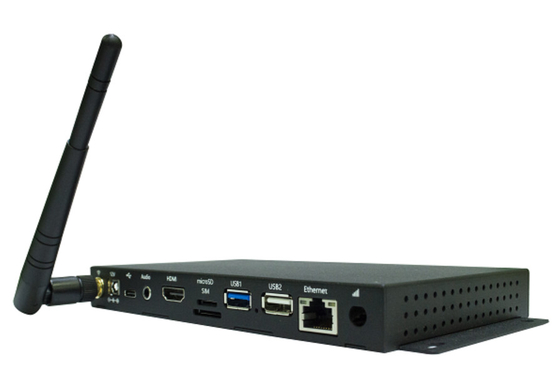

RK3328 Metal Media Player Android 7 100M LAN WIFI BT Optical For advertisingDigital Signage Player / Android Player
Model NO.: AD-0130 (AD-B01 BOX)
Digital Signage Player / Android Player
Basic
- CPU: RK3328 quad-core Cortex-A53, clocked up to 1.5GHz GPU Mali-450MP2
- Ram: 1G / 2G
- Memory: 8GB /16GB eMMC
- OS: Android 7.1
- Wifi: 802.11b/g/n
- BT: Bluetooth 3.0/4.0
- RJ45: 10/100M
I/O
- TF Card micro SD up to 64G
- HDMI out up to 4K
- USB x 1
- USB OTG x 1
- Wifi Antenna x 1
- Wifi Antenna x 1 (Optional)
Power
Android Player, Digital Signage Player Tags: 4K UHD Display, Advertisment Player, Android Board, Android Player, Digital Menu Display, Digital Signage Display, Digital Signage LCD Monitor, Digital Signage Player, Digital Signage Player box, Menu Boar Player, Rockchip Android Player, Rockchip RK 3328, Transport Information Display

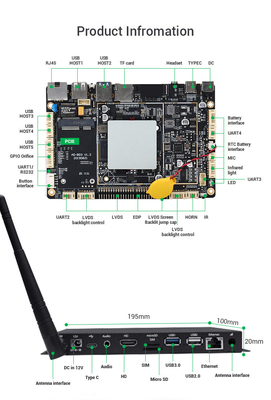

Technical Parameters:
| System |
CPU |
RK3328 quad-core Cortex-A53, clocked up to 1.5GHz GPU Mali-450MP2 |
| RAM |
1GB/2GB (optional) |
| ROM |
8GB/16GB/32GB(optional) |
| OS |
Android 7.1 |
| Network |
WiFi |
802.11 a/b/g/n_2.4G (802.11 a/b/g/n/ac_5G optional) |
| Ethernet |
10M/100M Ethernet |
| Mobile Network |
Support full Netcom 4G (optional) |
| Bluetooth |
Bluetooth 5.2 |
| Interactive |
Interactive mode |
Support infrared remote control, support external expansion |

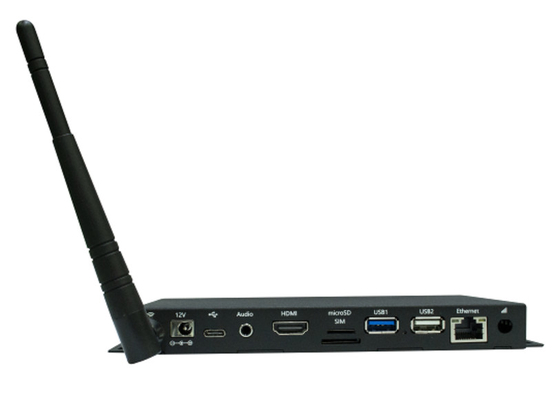

| Interfaces |
USB interface |
Support USB 2.0(1) & USB 3.0(1) |
| TYPE C interface |
TYPE C interface |
| DC |
DC power 12V input |
| TF card |
Maximum support 64GB |
| sim Card slot |
4G mini PCIE port |
| HDMI |
Support HDMI output Support 4K 60FPS frame rate |
| RJ45 |
Ethernet port |
| Headset |
3.5mm stereo headphone output |
| Fiber |
Support fiber output (optional) |
| Speaker |
8Ω*5W * 2(optional) |
| USB port expander |
Support USB port expandert*1(optional) |
| LED light |
Support USB port expandert*1(optional) |
| UART |
Support UART2*1(optional) |
Applications:
Rockchip RK3328: Only android 7 OS, 4K Quad-Core, Model AD-B01 BOX.
(1) FHD & 4K media player Box is used for industrial grade application.
(2) WIFI/Bluetooth/Ethernet/Optical/4G functions optional

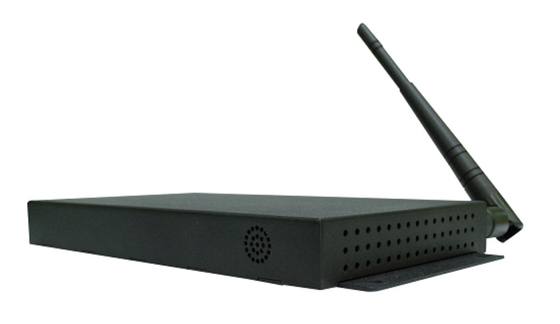

(3) Metal case, lots of Holes on the case, heat sink etc. for the best heat dissipation
(4) G-Sensor, rotation automatically or manually
(5) Android 7.1 until android 12 OS version
(6) 7*24hours for not-stopping working
(7) CMS supported for options
Customization:
Available Customization that from Sunchip:
Regarding software:
1. Booting logo/animation
2. Model number of the Android System
3. Build number of the Android System
4. Pre-install APK
5. Delete APK
6. Set defaulted time zone
7. Set defaulted language
8. Virtual Keyboard (the current defaulted is English Keyboard)
9. Other requirements etc.
Regarding hardware: ODM layout
……More customization is waiting for your checking.
Support and Services:
1, More than 10 years of PCBA design and production experience.
2, A R&D team of more than 80 people, including hardware engineers (layout, debugging) and software engineers (drivers, kernels, testing, apk engineers).
ID Design engineer, Mechanical Design engineer, -> Support OEM/ODM.
3, Team of more than 160 people.
4, One-stop service: PCB design, prototype, production, PCBA SMT, testing, shell design, assembly, software customization, QC control, after-sales.
5, Got ISO9001 factory certification.
6, More than 3500 square meters of office and factory area
Sunchip can provide AIO machine, can provide android board+ lcd touch panel, also can provide only android board.
Hardware and software solution are our biggest advantage.
8K Octa-Core: RK3588;
4K Hexa-Core: RK3399;
4K Quad-Core: RK3566, RK3568, RK3288, RK3328, RKPX30, RK3188, RK3128;
Packing and Shipping:
FAQ:
Q: Are you trading company or factory?
A: We are OED & ODM factory, and we have own hardware and software R&D team.
Q: How can I pay for samples and bulk order?
A: bank T/T,PayPal, Alibaba platform,West link,all of them are acceptable.
Q: What is the warranty time?
A: Defaulted 1-year. If need to add the warranty time, price will be increased.
Q: Do you have any discount?
A: Based on the different quantities, better prices if better quantities.
Q: How about the lead time?
A: Samples 1-7 days, MP 25-30 days.
Q: What kinds of customization do you support?
A: Hardware customization, software customization, product silkscreen and label customization.
Q: What is the camera type does it can support?
A: MIPI and USB camera.
Q: What is the brand of your product screen ?
A: Usually, they are BOE, AUO, LG, Innolux, …
Q: Does it support RS485, RS232?
A: Some of models support RS232 port,but not support RS485,so, need to use RS232 or RS485 converter board.
Our main products:
-Android embedded motherboard
-4K/8K player box of media or industrial
-Different kinds of AIO lcd digital signage display machine
Let me know if any interest, will be happy to show you more details by return. thanks!
