Product Details:
|
| Audio: | 3.5mm Jack | Expandable Memory: | Yes, Micro SD Card Support |
|---|---|---|---|
| Cpu: | Rockchip Rk3288 Quad-core | Main Frequency: | 1.8 GHz |
| Built-in Storage: | EMMC 16GB /32GB | Connectivity: | Wi-Fi, BT, Ethernet, 4G LTE |
| Power: | DC 12V | Battery: | RTC Battery |
| Camera: | MIPI / USB Supported | POE: | Optional |
| Highlight: | Rk3399 Android Embedded Board,32GB Storage Android Embedded Board,Customize PCBA Industrial Development Board |
||

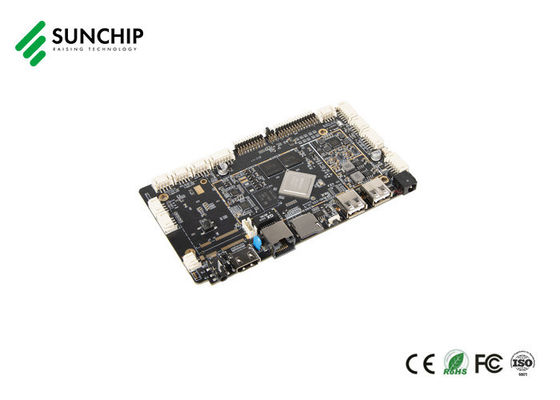

Android Embedded Board 32GB Storage Customize PCBA Industrial Development Board Rk3288/Rk3399
Model: AD-Z33
Android Decoding Driver All-in-one main board based on Quad core RK3288(Model NO.:AD-Z33-V1.5)
Quad-Core High-Performance Board
Uses RK3288 quad-core Cortex-A17processor, supports 4K hardware decoding, has a rich expansion interface, as well as compatible with mainstream displays. It adopts the immersion gold process and has passed various pressure tests, which can be applied to the product directly.
RK3288 development board is an all-in-one high performance multi-core computing platform. Based on the Rockchip RK3288 SoC featuring an Arm Cortex-A17 (MP4) and Arm Mali-T760 (MP4), it features powerful graphics processing and video decoding ability, and support for Android OS.
High-performance Core Configuration
with RK3288 quad-core Cortex-A17 processor, frequency up to 1.8GHz, integrated quad-core Mali-T764 GPU. Its excellent performance makes products more possibilities.
Powerful Hardware Decoding Capability
It supports LVDS/EDP/ HD-MI display interfaces, 4K hardware decoding, dual-screen identical display/dual-screen differential display, and can drive the mainstream 5~100-inch display directly.
| CPU | Rockchip RK3288 Quad-Core Cortex-A17 Quad-Core GPU Mali-T764 |
| Frequency | 1.8 GHz |
| RAM | LPDDR3 2G/4G optional |
| Built-in storage capacity | EMMC 8GB/16G/32G/64G optional |
| Display interface | LVDS interface (single, 6-bit dual, 8-bit dual). Support maximum resolution 1920x1080, support 7"-84" display |
| EDP port | |
| Backlight Voltage | Support 3.3V / 5V / 12V optional |
| Touch screen |
Provides I2C interface (can support multi-point resistance touch, multi-point capacitive touch). Support USB multi-point infrared touch, multi-point sound wave touch, multi-point optical touch. |
| Internet | With RJ45 interface, support Ethernet. |
| With WIFI & BT module, support Wi-Fi 802.11b / g / n protocol. Support BT4.0 | |
| Image rotation | Support 0 degrees, 90 degrees, 180 degrees, 270 degrees manual / automatic rotation, support gravity sensing function |
|
Real Time Clock
|
Built-in real-time clock powered battery |
| Interface device | Support MIPI interface camera, up to 500W pixels |
| 4 USB HOST, 1 USB OTG (support USB camera@500W USB printer, U disk, mouse, keyboard, standard USB peripherals) | |
| 3 sets of serial ports. Support external serial device modules (NFC modules, printers, card readers, etc.) | |
| TF card, maximum support 32GB | |
| Class D amplifier: 3W*2 8 ohms, support microphone | |
| HDMI 2.0 output | |
| Audio | MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A,3GPP format |
| Video | Support H.264, VP8, RV, WMV, AVS, H.263, MPEG4 and other video formats 1080P decoding, YouTube and other online video, up to 1080P, HTML5 video playback, Flash10.1 play |
| Picture | Support JPG, BMP, PNG and other picture formats to browse and support the rotation / slide show / picture zoom |
| Power Adapter | Input:AC100-240V.50-60HZ, Output: DC12V 3A |
| Operating system | Android 5.1 and above |
| Basic software functions | Web browsing, web chat, email, e-books, explorer |
| Sound mode | Clock, Alarm, Calculator, Recording |
| Language support | multi-language |
| Recording | Support MP3,WMA format recording |
| Tool | Calendar |
| Alarm Clock | |
| calculator | |
| note | |
| weather + clock | |
| recording | |
| Document processing | EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT |
| E-book | PDF/TXT/CHM/DOC/EXCEL/EPUB/RTF/FB2 |
| Schedule | calendar |
| Input method | Standard Android keyboard, optional third-party input method (Chinese, Korean, Japanese, etc.) |
| Internet | Browser -Chrome Lite |
| GOOGLE Market | |
| Gmail | |
| Google talk | |
| System Management | Support OTA remote upgrade, U disk upgrade, SD upgrade (silent installation) |
| The original ecological Android system, open root permissions, can be customized for product development | |
| Customizable local or remote server management system | |
| Support a variety of third-party Android remote advertising publishing systems | |
| Support multi-channel serial devices, USB devices, IO control devices |
Product Name: Android Embedded ARM Board
Application Scenario: Industrial, Medical, Advertising machine, LCD digital signage, Education etc.
Application products:
It can be directly applied to a variety of products. Such as Computing Storage, Smart Robot, Game Equipment, Commercial Display, Medical Equipment, Vending Machine, Intelligent POS, Interactive Printer etc.
Our Product Customization Services for the Android Embedded Board are designed to meet your specific needs. Our Embedded Board, also referred to as Android Arm Board or Android SBC, is manufactured by Sunchip, a leading brand in the industry. Our model number, AD-Z33, is produced in China and has the following attributes:
Our team of experts can customize the Embedded Board to your specific requirements, ensuring that it meets your needs perfectly. Whether you need a specific OS or more memory, we can provide it. Contact us today to learn more about our product customization services.
Introduction of the advantages from Sunchip:
1, More than 10 years of PCBA design and production experience.
2, A R&D team of more than 80 people, including hardware engineers (layout, debugging) and software engineers (drivers, kernels, testing, apk engineers).
ID Design engineer, Mechanical Design engineer, -> Support OEM/ODM.
3, Team of more than 160 people.
4, One-stop service: PCB design, prototype, production, PCBA SMT, testing, shell design, assembly, software customization, QC control, after-sales.
5, Got ISO9001 factory certification.
6, More than 3500 square meters of office and factory area
Q: Are you trading company or factory?
A: We are OED & ODM factory, and we have own hardware and software R&D team.
Q: How can I pay for samples and bulk order?
A: bank T/T,PayPal, Alibaba platform,West link,all of them are acceptable.
Q: What is the warranty time?
A: Defaulted 1-year. If need to add the warranty time, price will be increased.
Q: Do you have any discount?
A: Based on the different quantities, better prices if better quantities.
Q: How about the lead time?
A: Samples 1-7 days, MP 25-30 days.
Q: What kinds of customization do you support?
A: Hardware customization, software customization, product silkscreen and label customization.
Our main products:
-Android embedded motherboard
-4K/8K player box of media or industrial
-Different kinds of AIO lcd digital signage display machine
Let me know if any interest, will be happy to show you more details by return. thanks!
