Product Details:
|
| CPU: | RK3566 | OS: | Android 11 |
|---|---|---|---|
| Power Supply: | DC 12V/2A | Audio: | 3.5mm Audio Jack |
| Camera: | 2MP/5MP MIPI/USB Supported | Storage: | 16GB/32GB EMMC |
| RAM: | 2GB | Network: | Wi-Fi 802.11 B/g/n |
| Temperature: | -10℃~50℃ | RTC: | YES |
| Highlight: | RK3566 Quad Core Embedded Arm Board,Android 11 Embedded ARM Board,Interactive Touch Screen Rockchip Motherboard |
||

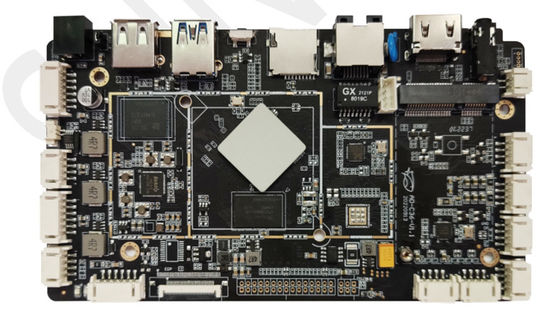

Android 11 Interactive touch screen Rockchip motherboard RK3566 Quad Core LVDS HD-MI 4K arm android embedded arm board
Model NO.: AD-C36
The Intelligent Industrial All-In-One Large Board is equipped with the Rockchip RK3566 quad-core chip solution, making it a powerful device for industrial applications. With support for the latest Android 11 operating system, users can enjoy the latest software features and enhanced performance.
The board comes with an enhanced power management circuit which ensures stable and efficient power delivery for prolonged device usage. Its rich interface allows for a wide range of connectivity options, supporting common external devices such as USB and HDMI devices.
The stable performance of the large board makes it ideal for a range of industrial applications, including remote network control for industrial equipment, medical machines, large advertising displays, educational video terminals, and more. Its versatility and reliability make it a valuable asset for any company looking for advanced industrial-grade technology.
| Display | MIPI/EDP/LVDS/HD 2.0 |
| Power Supply | DC 12V/2A |
| OS | Android 11 |
| USB | 2 X USB 3.0, 3 X USB 2.0 |
| CPU | Quad-core A55 Architecture (RK3566) |
| RAM | 2GB |
| Temperature | -10℃~50℃ |
| Camera | 2MP/5MP MIPI/USB Supported |
| Network | Wi-Fi 802.11 B/g/n |
| BT | 5.2 |
| PCBA | Quad-core A55 Architecture (RK3566) |
Quad-core RK3566 Android Decoding Driver Integrated Board Specification, Product Model:AD-C36-V1.1
| CPU | Rockchip RK3566 Quad-core A55 architecture |
| Main frequency | 1.8GHz |
| GPU | ARM Mali-G52 2EE |
| OpenGL ES 1.1/2.0/3.2 | |
| Vulkan 1.1 | |
| OpenCL 2.0 | |
| Embedded with high performance 2D acceleration hardware | |
| NPU | 1TOPS computing power, support int8/int16 |
| RAM | 2G DDR4 |
| Built-in storage capacity | EMMC 16G/32G/64G optional |
| Display Interface | HDMI2.0(maximum support 4K@60FPS) |
| MIPI display interface (MIPI and LVDS can only be selected as one) | |
| LVDS display interface (MIPI and LVDS can only be selected as one) | |
| EDP display interface |
| Screen voltage | 3.3V/5V/12V optional |
| Touch screen |
Provide I2C interface (can support multi-point resistive touch, multi-point capacitive touch) Support USB multi-point infrared touch, multi-point acoustic touch, multi-point optical touch. |
| Network | With RJ45 interface, support 10/100M Ethernet. |
| With Wifi & BT module, support Wi-Fi 802.11b/g/n protocol. Support BT4.0 | |
| Image rotation | Support 0 degrees, 90 degrees, 180 degrees, 270 degrees manual / automatic rotation, support gravity sensing function |
| Real-time clock | Built-in real-time clock powered battery |
| Interface device | Support MIPI interface camera, support up to 500W pixels |
| 4 USB HOST 2.0, 1 USB HOST3.0, 1 USB OTG (support usb camera @ 500W usb printer, USB stick, mouse, keyboard standard usb peripherals) | |
| 2 groups of serial ports, support external serial device modules (NFC modules, printers, card swipes, etc.) | |
| TF card, supports up to 32GB | |
| Class D amplifier: 3W*2 8 ohms, microphone support | |
| Audio | MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A,3GPP |
| Video |
Support H.265/H.26/VP9 video decoding, up to 4K60FPS Support H.264/H.265 video encoding, up to 4K30FPS |
| Picture | Support JPG, BMP, PNG and other image formats to browse and support rotation / slideshow / image zoom function |
| Power adapter | Input:AC100-240V.50-60HZ, output: DC12V 3A(Internal positive and external negative) |
| Operating system | Android 11 and above |
| Basic software functions | Web browsing, web chat, email, e-book, resource manager |
| Sound mode | Clock, alarm clock, calculator, recording |
| Language | multi-lingual |
| recording | Support MP3, WMA format recording |
| Tool | Calendar |
| Alarm Clock | |
| Calculator | |
| Note | |
| Weather + clock | |
| Recording | |
| Word processing | EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT |
| E-book | PDF/TXT/CHM/DOC/EXCEL/EPUB/RTF/FB2 |
| schedule | Calendar |
| Input | Standard Android keyboard, optional third-party input method (Chinese, Korean, Japanese, etc.) |
| Internet | Browser -Chrome Lite |
| GOOGLE Market | |
| Gmail | |
| Google talk | |
| System Management | Support OTA remote upgrade, U disk upgrade, SD upgrade (silent installation) |
| Original Android system with open root access for product customization and development | |
| Customizable local or remote server management system | |
| Support multiple third-party Android remote ad distribution systems | |
| Support multi-channel serial devices, USB devices, IO control devices |
Product Name: Android Embedded ARM Board
Application Scenario: Industrial, Medical, Advertising machine, LCD digital signage, Education etc.
Application products:
It can be directly applied to a variety of products. Such as Computing Storage, Smart Robot, Game Equipment, Commercial Display, Medical Equipment, Vending Machine, Intelligent POS, Interactive Printer etc.
Available Customization that from Sunchip:
Regarding software:
1. Booting logo/animation
2. Model number of the Android System
3. Build number of the Android System
4. Pre-install APK
5. Delete APK
6. Set defaulted time zone
7. Set defaulted language
8. Virtual Keyboard (the current defaulted is English Keyboard)
9. Other requirements etc.
Regarding hardware: ODM layout
……More customization is waiting for your checking.
1, More than 10 years of PCBA design and production experience.
2, A R&D team of more than 80 people, including hardware engineers (layout, debugging) and software engineers (drivers, kernels, testing, apk engineers).
ID Design engineer, Mechanical Design engineer, -> Support OEM/ODM.
3, Team of more than 160 people.
4, One-stop service: PCB design, prototype, production, PCBA SMT, testing, shell design, assembly, software customization, QC control, after-sales.
5, Got ISO9001 factory certification.
6, More than 3500 square meters of office and factory area
Q: What is the brand of your product screen ?
A: Usually, they are BOE, AUO, LG, Innolux, …
Q: Does it support RS485, RS232?
A: Some of models support RS232 port,but not support RS485,so, need to use RS232 or RS485 converter board.
Q: Does it support 12MP MIPI camera?
A: Yes, some of our models can support max. 12MP camera.
Q: What is the working and storage temperature?
A: Working temperature 0~50℃,Storage temperature -20~60℃
Q: How about your defect rate?
A: less than 3/1000
Glad to tell you we got ISO 9001:2015 Quality Certificate, CE/FCC certificates and we’re Rockchip strategic partner.
Our main products:
-Android embedded motherboard
-4K/8K player box of media or industrial
-Different kinds of AIO lcd digital signage display machine
Let me know if any interest, will be happy to show you more details by return. thanks!
