Product Details:
|
CPU: | RK3288 Quad-core Cortex-A17@1.8G GPU Mali T764 | Ram: | 2GB |
---|---|---|---|
Rom: | 16GB | Material: | Metal |
OS: | Android 7.1, 9.0, 10.0 Etc. | WIFI: | 802.11 B/g/n |
Charger Type: | US/UK/EU Optional | Resolution: | 2k / 4K Optional |
Customizable Interface: | Yes | Name: | Media Player |
Highlight: | RK3288 Media Player Box,RK3399 Media Player Box,RK3328 Media Player Box |
RK3328 RK3288 RK3399 RK3568 RK3588 Android 7-12 OS Digital Signage Media Player Box With WIFI BT LAN 4G LTE Optical etc.
Industrial player for advertising 24/7
Advertising media box 2GB+16GB WIFI/BT/LAN/4G lte Android OS
Android Digital Signage Advertising Media Player Box android 7.1-10.0
digital signage advertising 4k player Box

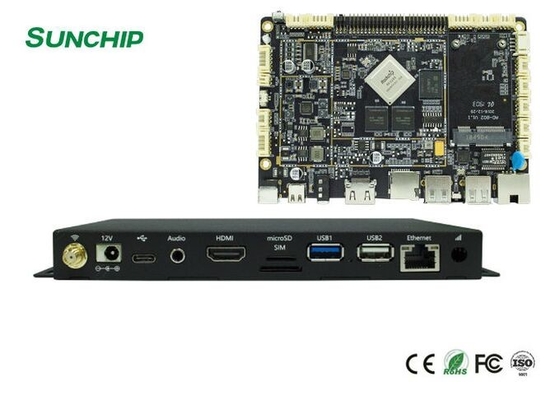

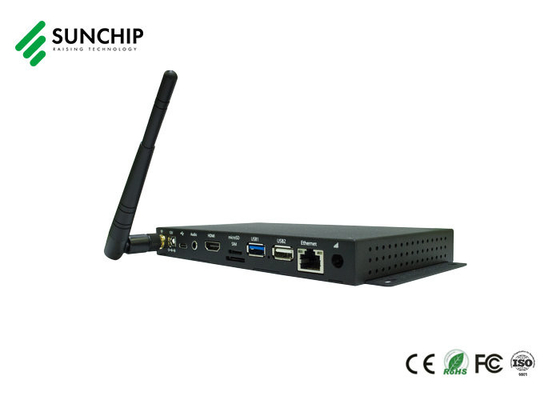

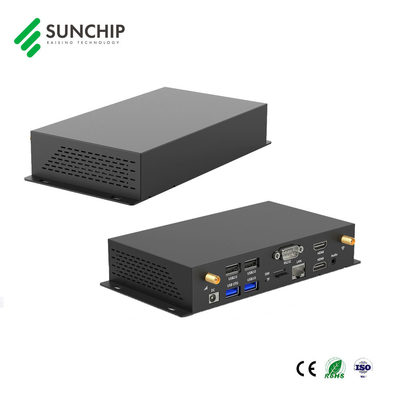

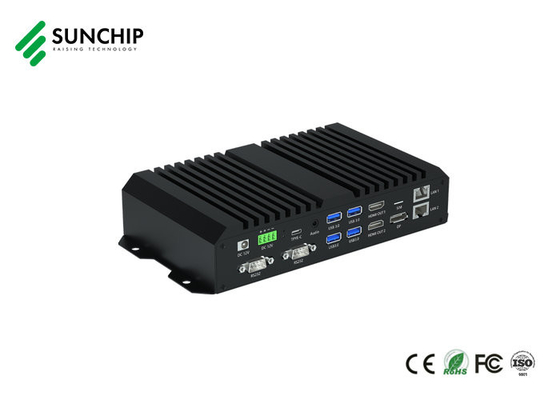

Sunchip Android Media Player Box for digital signage:
(1) FHD & 4K media player Box is used for industrial grade application.
(2) WIFI/Bluetooth/Ethernet/Optical/4G functions optional
(3) Metal case, lots of Holes on the case, heat sink etc. for the best heat dissipation
(4) G-Sensor, rotation automatically or manually
(5) Android 6.0 until android 11 OS version
(6) 7*24hours for not-stopping working
1)Rockchip RK3328: Only android 7 OS, 4K Quad-Core, Model AD-B01 BOX.
2)Rockchip RK3288: android 7, 9, 10 OS, 4K Quad-Core, Model AD-B02P BOX.
3)Rockchip RK3399: android 7, 9, 10 OS, 4K Hexa-Core, Model AD-B03 BOX.
4)Rockchip RK3568: android 11 OS, 4K Quad-Core, Model AD-0146 BOX.
5)Rockchip RK3588: android 12 OS, 8K Octa-Core, Model AD-0160 BOX.
Model No.: | AD-0140 BOX | Model Name: | Android Media player box | ||
Size: | 170*96*20MM | ||||
|
Hardware Spec | |||||
Operation System | Android 7, 9.0 Android 10 | ||||
Language | Chinese,English...Multi-Language support | ||||
CPU | RK3288 Quad-core ARM Cortex-A17 MPCore processor | ||||
GPU | ARM Mali-T764 GPU | ||||
SDRAM | DDR3 2GB | ||||
Flash | 16gb, 32GB(EMMC) | ||||
Network | RJ45 10/100M Ethernet | ||||
WIFI Module | AP6212 | ||||
Power Supply | DC 12V/3A 5.5mm DC-in | ||||
Camera | 200W /500W | ||||
Interface | |||||
support maximum 4Kx2K@30fps max resolution output |
|||||
USB Port | 1*USB Host 1*USB OTG | ||||
AUDIO Out | 1*3.5mm Headphone Jack | ||||
Network | 1*RJ45 10/100/1000M Ethernet | ||||
Power Supply | 1*DC Jack 12V/3A 5.5mm DC-in | ||||
TF card Interface | TF Card, up to 32GB | ||||
External antenna | 2.4G/ 5G 3dbi optional | ||||
Media Parameter | |||||
Audio Container | Supports MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP | ||||
Video Decoder | Supports *.mkv,*.wmv,*.mpg, *.mpeg, *.dat, *.avi, *.mov, *. *.mp4, and *.jpg file formats | ||||
Video Encoder | H.264/MVC/VP8 encoder by 1080p@30fps | ||||
Resolution | Maximum resolution is 4Kx2K | ||||
H.265 Data Rate | H.265 decoder by 2160p@60fps | ||||
Software Extension | APK install | ||||
Infrared remote control | IR remote | ||||
IM Software | Support Skype/QQ/MSN/GTALK (Depends on APK) | ||||
Offic Software | WORD/EXCEL/PDF(Depends on APK install) | ||||
Others Parameters | |||||
Operationg Temperature | 0~70℃ | ||||
Storage Temperature | -10~70℃ | ||||
Humidity environment | 5%-90%(No condensation) | ||||
Package | |||||
Dimension | 258*147*67MM | ||||
Net weight | 0.534kg | ||||
Gift Box Size | 195*153*70mm | ||||
Packing accessories | |||||
1, AC cable 2, 12V/3A adapter 3, Remote control 4, External antenna |
Restaurant Digital Menu Boards:
Retail shop - Digital Menu Boards:
Retail Digital Signage:
About Sunchip :
Introduction of the advantages from Sunchip:
1, More than 10 years of PCBA design and production experience.
2, A R&D team of more than 80 people, including hardware engineers (layout, debugging) and software engineers (drivers, kernels, testing, apk engineers).
ID Design engineer, Mechanical Design engineer, -> Support OEM/ODM.
3, Team of more than 160 people.
4, One-stop service: PCB design, prototype, production, PCBA SMT, testing, shell design, assembly, software customization, QC control, after-sales.
5, Got ISO9001 factory certification.
6, More than 3500 square meters of office and factory area
We want to update you that,
Sunchip can provide AIO machine, can provide android board+ lcd touch panel, also can provide only android board.
Hardware and software solution are our biggest advantage.
8K Octa-Core: RK3588;
4K Hexa-Core: RK3399;
4K Quad-Core: RK3566, RK3568, RK3288, RK3328, RKPX30, RK3188, RK3128;
Glad to tell you we got ISO 9001:2015 Quality Certificate, CE/FCC certificates and we’re Rockchip strategic partner.
Our main products:
-Android embedded motherboard
-4K/8K player box of media or industrial
-Different kinds of AIO lcd digital signage display machine
Let me know if any interest, will be happy to show you more details by return. thanks!
FAQ
1) Q: Is SUNCHIP a factory or simply a trading company?
A: We are a TRUE OEM/ODM factory. Please read our COMPANY PROFILE, for more information on this issue.
2) Q: What payment methods are available to me?
A: We accept most of the payment methods: accept VISA, Pay Later,T/T,Western Union,Paypal and Cash.
3) Q: How long is the warranty time?
A: 1 Year.
4) Q: What are the shipment terms and delivery times of your company?
A: Delivery / production time is directly affected by the size of the order. Also depending in which season you are shipping.
5) Q: Do you give any discounts ?
A: Prices are directly affected by the quantity. We have many ways to help our partners when starting the sample processes. Make sure to ask our sales on how we can make you save some charges.
6) Q: I would like to add my company logo on your products, is this possible?
A: SURE.We customize on a regular basis products for many large retaillers and brands. If your order is at the below 10 units, we can consider this as a SAMPLE order, some fees might apply for the logo prints.
Different methodes are used for logos, please ask our sales for more information on this issue, we will surely find the right solution for you!
SUNCHIP: Digital Signage manufacturer in Shenzhen, China.
digit signage player,rk3288,rk3288 board,advertising,advertising equipment,display,
digital signage,signage,terminal,display screen,other advertising equipment,
wholesale advertising,advertising display,motherboard,motherboards,rk3588,digit kiosk,industrial motherboard,media player,media player box,touch screen,touch screen board,rk3399,android board with touch screen,android digital signage,android embedded board.
Hope to get your kindly advice and let's work together to create something amazing !
