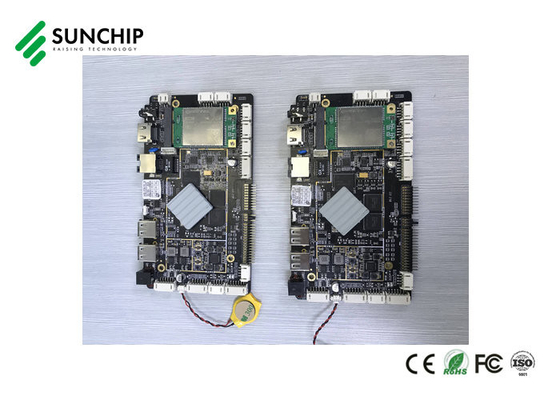

RK3288 RK3399 Board For Media Player Pos Machine Vending Machine, Android Board For Digital Sigange

RK3288 RK3399 Board For Media Player Pos Machine Vending Machine, Android Board For Digital Sigange
RK3288 RK3399 Board For Media Player Pos Machine Vending Machine, Android Board For Digital Sigange
RK3288 RK3399 Board For Media Player Pos Machine Vending Machine, Android Board For Digital Sigange RK3288 RK3399 Board For Media Player Pos Machine Vending Machine, Android Board For Digital Sigange RK3288 RK3399 Board For Media Player Pos Machine Vending Machine, Android Board For Digital Sigange RK3288 RK3399 Board For Media Player Pos Machine Vending Machine, Android Board For Digital Sigange

Large Image :  RK3288 RK3399 Board For Media Player Pos Machine Vending Machine, Android Board For Digital Sigange

Product Details:
Place of Origin: CHINA
Brand Name: ADW, SUNCHIP
Certification: ISO9001
Model Number: AD-Z33
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: $40~$60
Packaging Details: 1pc/bubble bag, proper qty in a carton
Delivery Time: 1~3days if have stock, 30 days if out of stock
Payment Terms: T/T, Western Union, PayPal
Supply Ability: 1,000,000pcs per month

RK3288 RK3399 Board For Media Player Pos Machine Vending Machine, Android Board For Digital Sigange

Description
CPU: Rockchip RK3288 Quad-Core Cortex-A17 Quad-Core GPU: GPU Mali-T764
Diaplay Interface: LVDS & EDP & HD Touch Screen: Supported
RAM: LPDDR3 2G/4G Optional EMMC: EMMC 8GB/16G/32G/64G Optional
OS: Android 7.1 Or Above Network: 2.4G WIFI (5G Wifi Optional)
Bluetooth: 5.2 LAN: Support Ethernet
Backlight Voltage: Support 3.3V / 5V / 12V Optional RTC: YES
High Light:

RK3399 board for Media Player

,

Android Board For Digital Sigange

,

RK3288 board for Pos Machine

RK3288 RK3399 board for Media Player Pos Machine vending machine android board for digital sigange

Android Decoding Driver All-in-one main board based on Quad core RK3288

(Model NO.:AD-Z33-V1.5)



Features:

1. Supports various LVDS interface displays from 7 inches to 84 inches

(point-to-point full HD display 1920*1080).



2.Support EDP interface display.



3. Multiple interactive mode interfaces:

capacitive touch, infrared touch, infrared remote control, USB mouse and keyboard, multi-point optical touch.



4. Multiple network interfaces: Ethernet, Wireless Wifi, Bluetooth.



5. Multi-channel USB interface, serial port.



6. Strong anti-electromagnetic interference and electromagnetic compatibility.



Basic hardware specifications:

CPU

Rockchip RK3288 Quad-Core Cortex-A17 Quad-Core GPU Mali-T764

Frequency

1.8 GHz

RAM

LPDDR3 2G/4G optional

Built-in storage capacity

EMMC 8GB/16G/32G/64G optional

Display interface

LVDS interface (single, 6-bit dual, 8-bit dual). Support maximum resolution 1920x1080, support 7"-84" display

EDP port

Backlight Voltage

Support 3.3V / 5V / 12V optional

Touch screen

Provides I2C interface (can support multi-point resistance touch, multi-point capacitive touch).

Support USB multi-point infrared touch, multi-point sound wave touch, multi-point optical touch.

Internet

With RJ45 interface, support Ethernet.

With WIFI & BT module, support Wi-Fi 802.11b / g / n protocol. Support BT4.0

Image rotation

Support 0 degrees, 90 degrees, 180 degrees, 270 degrees manual / automatic rotation, support gravity sensing function

Real Time Clock



Built-in real-time clock powered battery

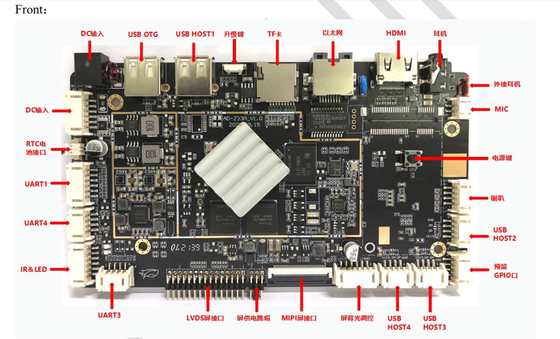

Interface device

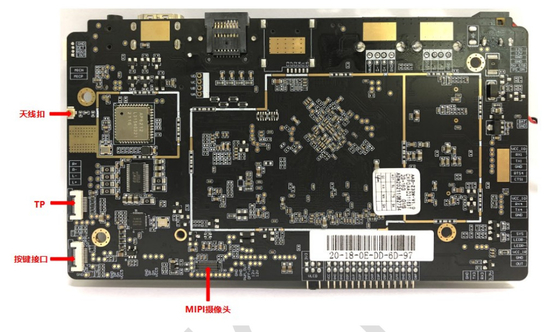

Support MIPI interface camera, up to 500W pixels

4 USB HOST, 1 USB OTG (support USB camera@500W USB printer, U disk, mouse, keyboard, standard USB peripherals)

3 sets of serial ports. Support external serial device modules (NFC modules, printers, card readers, etc.)

TF card, maximum support 32GB

Class D amplifier: 3W*2 8 ohms, support microphone

HDMI 2.0 output

Audio

MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A,3GPP format

Video

Support H.264, VP8, RV, WMV, AVS, H.263, MPEG4 and other video formats 1080P decoding, YouTube and other online video, up to 1080P, HTML5 video playback, Flash10.1 play


Support JPG, BMP, PNG and other picture formats to browse and support the rotation / slide show / picture zoom

Power Adapter

Input:AC100-240V.50-60HZ, Output: DC12V 3A



Basic software specifications:

Operating system Android 7.1 and above
Basic software functions Web browsing, web chat, email, e-books, explorer
Sound mode Clock, Alarm, Calculator, Recording
Language support multi-language
Recording Support MP3,WMA format recording
Tool Calendar
Alarm Clock
calculator
note
weather + clock
recording
Document processing EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT
E-book PDF/TXT/CHM/DOC/EXCEL/EPUB/RTF/FB2
Schedule calendar
Input method Standard Android keyboard, optional third-party input method (Chinese, Korean, Japanese, etc.)
Internet Browser -Chrome Lite
GOOGLE Market
Email
Gmail
Google talk
System Management Support OTA remote upgrade, U disk upgrade, SD upgrade (silent installation)
The original ecological Android system, open root permissions, can be customized for product development
Customizable local or remote server management system
Support a variety of third-party Android remote advertising publishing systems
Support multi-channel serial devices, USB devices, IO control devices



Application Scenarios:



RK3288 RK3399 Board For Media Player Pos Machine Vending Machine, Android Board For Digital Sigange 0

RK3288 RK3399 Board For Media Player Pos Machine Vending Machine, Android Board For Digital Sigange 1

RK3288 RK3399 Board For Media Player Pos Machine Vending Machine, Android Board For Digital Sigange 2

RK3288 RK3399 Board For Media Player Pos Machine Vending Machine, Android Board For Digital Sigange 3



Support 4G lte network:

RK3288 RK3399 Board For Media Player Pos Machine Vending Machine, Android Board For Digital Sigange 4





Sunchip introduction:

RK3288 RK3399 Board For Media Player Pos Machine Vending Machine, Android Board For Digital Sigange 5

RK3288 RK3399 Board For Media Player Pos Machine Vending Machine, Android Board For Digital Sigange 6



RK3288 RK3399 Board For Media Player Pos Machine Vending Machine, Android Board For Digital Sigange 7



SUNCHIP mainly manufactures:



1, Android industrial Embedded ARM board: RK3588, RK3566, RK3568, RK3288, RK3399,

RK3328, RKPX30, RK3188, RK3128 etc.

2, 【4K】Android player box for digital signage advertising: RK3399, RK3288, RK3328 & RK3568.

3, 【8K】Android Player Box for Industrial-Control Application: RK3588.

4, Open frame LCD display signage: 8inch, 10.1inch, 13.3inch, 15.6inch, 21.5inch etc.

5, SKD Kit: Android board + LCD panel with touch or not:

7inch, 8inch, 10.1inch, 13.3inch, 15.6inch.

6, Other types of Wall Mounted / Floor Standing / Desktop LCD digital signage.

7, Embedded touch desk: such as 32inch.

8, Face recognition temperature detection terminal machine: such as 8inch.



RK3288 RK3399 Board For Media Player Pos Machine Vending Machine, Android Board For Digital Sigange 8
