Product Details:
|
| BT Support: | Wifi 6 | Audio Format: | MP3, WAV, WMA, AAC, OGG, Etc. |
|---|---|---|---|
| DDR: | 4GB/8GB/16GB Optional | Ethernet: | Gigabit Ethernet X2 |
| CPU: | RK3588 | Color: | Black |
| Material: | Metal | GPS Support: | Yes, Optional |
| USB: | USB 3.0 X4 | Communicate Ports: | RS232 X2 , RS485 |
| NPU: | 6.0 Top | ||
| Highlight: | 8K Android Media Player,LCD Digital Signage Media Player,RK3588 Android Media Player |
||

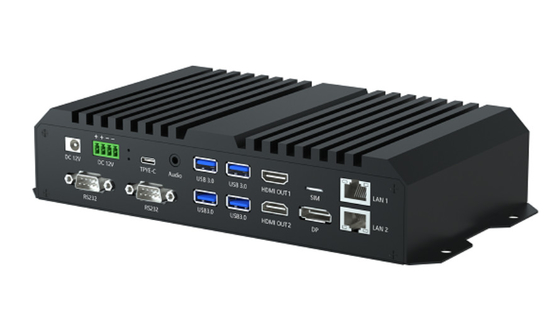

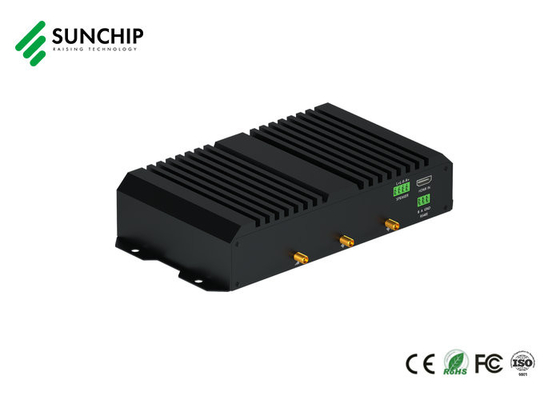

Sunchip AD-0160, a 1080p fullhd digital media player, is a perfect digital signage box. It is certified by ISO 90001, ISO 27001 ,CE, ROHS and is qualified to meet all your needs. With BT support, WIFI support, and the powerful RK3588 CPU, it is capable of playing any image format (JPEG, PNG, GIF, Etc.) and advertisement smoothly.
The box player advertisement comes with 2pcs in each box, with power adapter, AC cable, and antenna as accessories. The minimum order quantity is 2pcs and the price can be negotiated accordingly. With a supply ability of 60000/Month, it guarantees a fast and efficient delivery time of 1-5 days, and it accepts payment terms of TT in advance.
1. Product Name: Edge computing device
2. EMMC: 32GB/64GB/128GB/256GB, Optional
3. Audio Format: MP3, WAV, WMA, AAC, OGG, Etc.
4. Image Format: JPEG, PNG, GIF, Etc.
5. GPS support: Yes, Optional
6. Operation system: Android 12
7. Signage Player: 8K UHD Digital Media Player
8. 8K max , support 1080P/4K/8K
| System | CPU | RK3588 8-core CPU 8nm process 4 Cortex-A76 and 4 Cortex-A55 |
| GPU | ARM Mali G610 MP4 GPU | |
| NPU | INT4/INT8/INT16/FP16 mixed computing capability with up to 6TOPs of computing power (INT8) | |
| RAM | 8GB/16G (optional) | |
| Memory | 32GB/64GB/128GB/256GB (optional) | |
| Operating System | Android 12 |
| Network | WiFi | IEEE 802.11 a/b/g/n/ac |
| Dual wired network | Support 1000M wired network network*2 | |
| Mobile Network | Support wireless 4G network | |
| Bluetooth | BT5.0 |

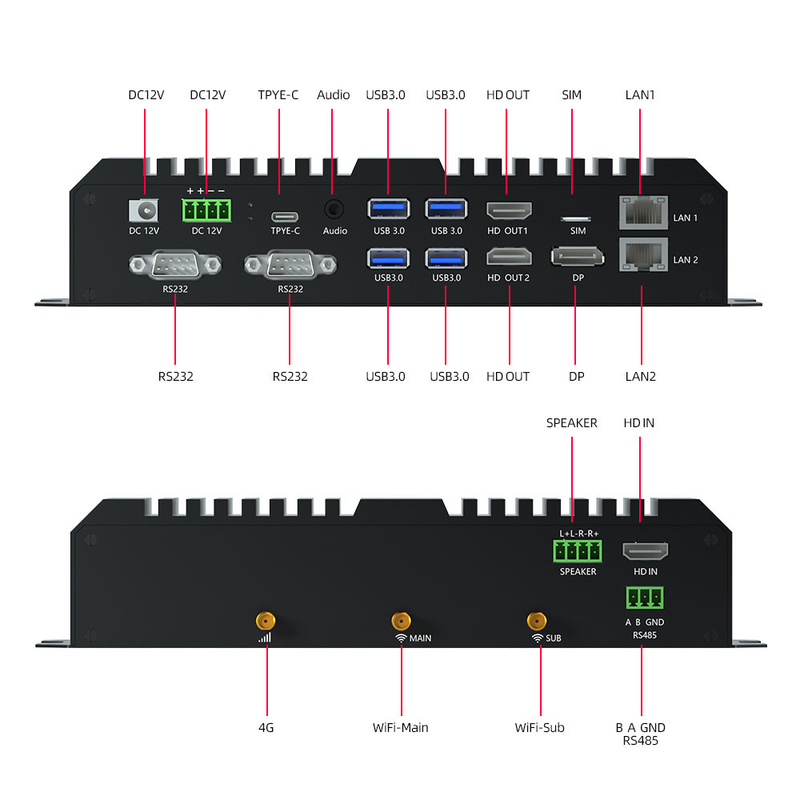

| Motherboard Interface | TYPE_C | Standard Type_c*1 |
| DC holder*1 | Front 5.5/2.5mm | |
| DC terminal input interface*1 | 4PIN pitch 3.81 terminal power input port*1 | |
| Headphones | 3.5MM support stereo with MIC headphone output port | |
| USB 3.0 | USB 3.0_A port*2 | |
| HDMI_OUT 1 | Support HDMI 2.1 _OUT*1 (maximum support 7680*4320 60HZ output for single HDMI display) | |
| SIM card | SIM card port*1 | |
| Ethernet port | Support 10/100/1000M Ethernet*1 | |
| Horn | Dual channel 4 Europe 5W speaker interface 4PIN spacing 3.81mm green terminals * 1 | |
| HDMI_IN | Support HDMI 2.0_4K input*1 |
| Sub-board interface | RS232 COM port | RS232 output port DB9*2 |
| USB 3.0 | USB 3.0_A port*2 | |
| HDMI_OUT 2 | HDMI 4K 60HZ output*1 (this interface does not work when HDMI_OUT 1 is selected to output 8K) | |
| DP display interface | DP display output interface*1 7680x4320@30Hz output*1 | |
| Ethernet port | Support 10/100/1000M Ethernet*1 | |
| M.2 internal SSD interface | M.2 built-in SSD expansion interface*1 | |
| RS485 | RS485 3PIN pitch 3.81 green terminal block*1 |
| Environmental parameters | General working temperature/humidity | Temperature:-20-60℃ Humidity 5%-85%RH(non-condensing) |
| General storage temperature/humidity | Temperature:-20-70℃ Humidity 5%-85%RH(non-condensing) | |
| Housing | Color | Black |
| Material | Aluminum alloy + metal profile | |
| Size | Motherboard Size | 200*125mm |
| Sub-board size | 200*125mm | |
| Whole machine size | 244*128*49.5mm | |
| Other | Indicator light | Red and blue 2 colors |
| Button | Upgrade key*1 | |
| Power adapter | DC:12V/3A |
Support and Services:
We provide the following support and services for our Media Player product:
To ensure the safe delivery of the Media Player to our customers, we use a standard shipping box for packaging. Here are the steps for packaging and shipping the Media Player:
