Sunchip RK3568 Development Embedded Motherboard 2GB/4GB/8GB NPU AI Artificial Intelligence PCBA

Sunchip RK3568 Development Embedded Motherboard 2GB/4GB/8GB NPU AI Artificial Intelligence PCBA
Sunchip RK3568 Development Embedded Motherboard 2GB/4GB/8GB NPU AI Artificial Intelligence PCBA
Sunchip RK3568 Development Embedded Motherboard 2GB/4GB/8GB NPU AI Artificial Intelligence PCBA Sunchip RK3568 Development Embedded Motherboard 2GB/4GB/8GB NPU AI Artificial Intelligence PCBA Sunchip RK3568 Development Embedded Motherboard 2GB/4GB/8GB NPU AI Artificial Intelligence PCBA Sunchip RK3568 Development Embedded Motherboard 2GB/4GB/8GB NPU AI Artificial Intelligence PCBA Sunchip RK3568 Development Embedded Motherboard 2GB/4GB/8GB NPU AI Artificial Intelligence PCBA

Large Image :  Sunchip RK3568 Development Embedded Motherboard 2GB/4GB/8GB NPU AI Artificial Intelligence PCBA

Product Details:
Place of Origin: CHINA
Brand Name: SUNCHIP ADW
Certification: CE ROHS FCC
Model Number: AD-C33P
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Bubble bag
Delivery Time: Samples: 1-3 days; MP: 25 days;
Payment Terms: T/T, Western Union, PayPal
Supply Ability: 30,000PCS

Sunchip RK3568 Development Embedded Motherboard 2GB/4GB/8GB NPU AI Artificial Intelligence PCBA

Description
CPU Solution: RK3568 Quad-Core OS: ANDROID 11
DDR/EMMC: 2GB/4GB RAM; 16GB/32GB ROM Display Interface: LVDS/EDP/MIPI/HD OUT For Display
Serial Port: 3*Serial Port (UART3, UART4, UART7) WIFI/BT: 2.4G WIFI & BT 5.2
Ethernet: 10/100/1000M Ethernet Function: WIFI, BT, Wlan, Audio, Speaker,etc.
High Light:

NPU Embedded Motherboard

,

AI Artificial Intelligence Embedded Motherboard

,

RK3568 Development Embedded Motherboard



Sunchip RK3568 Development Embedded Motherboard 2GB/4GB/8GB NPU AI Artificial Intelligence PCBA



Overview:
The large board of the intelligent industrial all-in-one machine adopts the Rockchip RK3568 quad-core chip solution.
Support Android 11 system.
Enhanced power management circuit. Support commonly used external devices.
Rich interfaces and stable performance.
Suitable for intelligent remote network control: equipment such as industrial, medical, large advertising machines,educational video terminals and other equipment.

Characteristic:
* Support 7-inch to 84-inch various LVDS interface displays (point-to-pointfull HD display 1920*1080).

* Support EDP interface display screen.
* Support MIPI interface display screen.

* Multiple network interfaces: Ethernet, wireless Wifi, Bluetooth, 4G.
* Multiple interactive mode interfaces: capacitive touch, infrared touch,infrared remote control, USB keyboard and mouse, multi-point optical
touch.

* Multi-channel USB interface, serial port.

* Strong anti-electromagnetic interference and electromagnetic compatibility


Sunchip is a professional android board designer/manufacturer in Shenzhen, China.

We have a team that includes more than 150 people. In this team, R&D has more than 80 employees that involving hardware engineers (layout, debugging), software engineers (Driver, Kernel, testing, APK), ID designer and Mechanical Engineers.



Sunchip has more than 13-years experience on PCBA design and mass-production, also passed the ISO9001 , ISO 14001 , ISO 27000 certification. Our office &factory have more than 3500 square meters.

Sunchip can provide one-stop service, from PCB layout, prototype, production, PCBA SMT, testing, housing design, assembly, software customization, QC control, after-sale etc.





Quad-core RK3568 Android Decoding Driver Integrated Board Specification(Model No.:AD-C33P)

Application Field

■ Commercial advertising display machine

■ POS machine

■ Digital photo frame advertising machine

■ Touch all-in-one machine

■ Self-service vending machine



Basic hardware specifications:



CPU Rockchip RK3568 quad-core 64-bit Cortex-A55, GPU Mali-G52
Main frequency Up to 2.0 GHz
RAM DDR4 2G/4G optional
Built-in storage capacity EMMC 8GB/16G/32G/64G optional (label 16GB)

Screen & Touch screen

Display interface





LVDS interface (single-channel, 6-bit dual-channel, 8-bit dual-channel). Support maximum resolution 1920x1080, support 7"-84" display
  MIPI interface
  EDP interface
Screen voltage Support 3.3V/5V/12V optional
Touch screen

Provide I2C interface (can support multi-point resistive touch, multi-point capacitive touch).

Support USB multi-point infrared touch, multi-point acoustic wave touch, multi-point optical touch.



Internet communication

The internet



With RJ45 interface, support 10/100/1000M Ethernet.
  Equipped with Wifi&BT module, supporting Wi-Fi 802.11b/g/n protocol. Support BT4.0

Function support
Image rotation Support 0 degree, 90 degree, 180 degree, 270 degree manual/auto rotation, support gravity sensor function
Real Time Clock External real-time clock power supply battery

External equipments & functions





Interface device







Support MIPI interface camera, up to 500W pixels
  4 USB HOST, 1 USB OTG (support usb camera@500W usb printer, U disk, mouse, keyboard, standard usb peripherals)
  3 groups of serial ports. Support external serial device module (NFC module, printer, card reader, etc.)
  TF card, maximum support 32GB
  Class D power amplifier: 3W*2 8 ohms, support microphone
  HDMI 2.0 output

Media format
Audio MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, 3GPP format
Video Support 4K 60fps H.265/H.264/VP9 video decoding. Support 1080P 100fps H.265/H.264 video encoding. Support 8M ISP, support HDR.
Picture Support JPG, BMP, PNG and other image format browsing and support rotation/slide show/picture zoom function

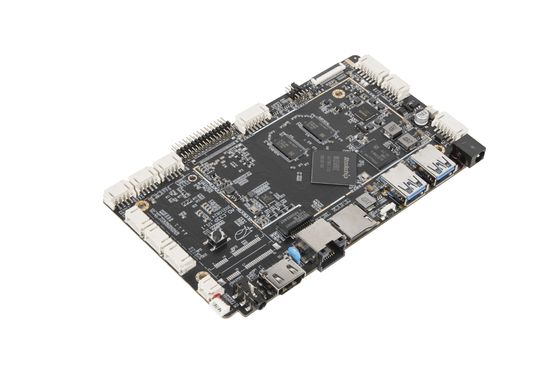

Android board pictures:




Sunchip RK3568 Development Embedded Motherboard 2GB/4GB/8GB NPU AI Artificial Intelligence PCBA 0Sunchip RK3568 Development Embedded Motherboard 2GB/4GB/8GB NPU AI Artificial Intelligence PCBA 1








Rockchip RK3568 Solution: ANDROID 11 OS,

2GB RAM/16GB ROM, Only Main board (no Sub small board).

Quad-Core, LVDS/EDP/MIPI/HD OUT for display, 3*Serial Port (UART3, UART4, UART7),

2.4G WIFI & Bluetooth 4.0, 10/100/1000M Ethernet, Support 4G LTE MINI PCIE, 1*USB 3.0,

1*USB OTG, 3*4PIN USB, 12V/3A.

Support rotation by manually or automatically; RTC; Support touch;
