Product Details:
|
| Frequency: | 2.1GHz | Edp Interface: | Support Resolution 8K @60FPS |
|---|---|---|---|
| Gpu: | ARM Mali-G610 MC4 | Usb: | 3 X USB 2.0, 3 X USB 3.0 |
| UART: | 3 Sets Of Serial Ports | Bluetooth: | BT5.2 |
| Certifications: | CE, FCC, RoHS | Touch Screen: | I2C Interface |
| Highlight: | 64GB ROM Industrial Arm Board,Customized RK3588 Motherboard,Android 12.0 RK3588 Motherboard |
||

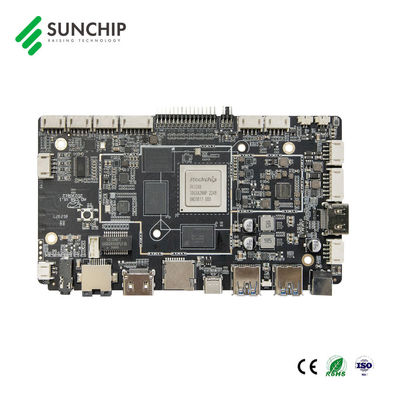

The intelligent industrial all-in-one machine features a large board that utilizes Rockchip RK3588 eight-core chip solution. It is equipped with the latest Android 12 system and enhanced power management circuitry.
Not only does it support common external devices, but it also offers a wide range of interfaces for versatile connectivity. The machine delivers stable performance, making it ideal for intelligent remote network control in various industries such as industrial, medical, and large advertising machines. It can also be used for educational video terminals and other equipment.
The display options for this device include LVDS, MIPI, and EDP interfaces, which allow for simultaneous display on three screens or different displays. Additionally, it supports HD OUT with a maximum resolution of 8K at 60 frames per second (FPS), as well as HD IN with the same capabilities.
A variety of interactive mode interfaces are available for use, including capacitive touch, infrared touch, USB keyboard and mouse, and multi-point optical touch.
This device also offers multiple network interfaces, including Gigabit Ethernet, Wifi6, and Bluetooth 5.0.
In addition to the network interfaces, there are also multiple USB interfaces, as well as a serial port for various connectivity options.
The device is designed to withstand strong electromagnetic interference and maintain high levels of electromagnetic compatibility for optimal performance.
| CPU | Rockchip RK3588 octa-core 64-bit size core architecture,4*Cortex-A76 + 4*Cortex-A55 | |
| Main frequency | The main frequency of the large core is 2.1GHz, and the main frequency of the small core is 1.7GHz | |
| GPU | ARM Mali-G610 MC4 | |
| OpenGL ES 1.1/2.0/3.1/3.2 | ||
| Vulkan 1.1,1.2 | ||
| OpenCL 1.1,1.2,2.0 | ||
| Embedded high-performance 2D image acceleration module | ||
| NPU | 6TOPS AI computing power, triple-core architecture, support int4/int8/int16/FP16/BF16/TF32, enabling various AI scenarios | |
| Memory | 4GB/8GB/16GB(Up to 32GB)64bit LPDDR4/LPDDR4x | |
| Built-in storage capacity | EMMC 32G/64G/128G/256G(optional) | |
| Display interface | HD OUT(Up to 8K@60FPS) | |
| HD IN(Up to 8K@60FPS) | ||
| LVDS display interface | ||
| EDP display interface | ||
| MIPI display interface | ||
| Screen voltage | Support 3.3V/5V/12V optional | |
| Touch screen | Provide I2C interface (can support multi-point resistive touch, multi-point capacitive touch).Support USB multi-point infrared touch, multi-point acoustic wave touch, multi-point optical touch. | |
| Network | With RJ45 interface, support 10/100/1000M Ethernet. | |
| Equipped with AP6275S industrial WiFi-6 module SIDO/PCIE dual-channel Bluetooth WiFi module 2T2R 802.11 ax/ac/a/b/g/n Wi-Fi + BT 5.0 Module | ||
| Image rotation | Support 0 degree, 90 degree, 180 degree, 270 degree manual/automatic rotation, support gravity sensing function | |
| Real Time Clock | Built-in real-time clock powered by battery | |
|
Interface device |
Support MIPI interface camera, support 500W pixels | |
| 3 USB HOST 2.0 (4PIN2.0 spacing connectors) | All support usb camera@500W usb printer, U disk, mouse, keyboard, standard usb peripherals | |
| 2 USB HOST3.0 (standard interface) | ||
| 1 full-featured Type-C interface (OTG) | ||
| 3 sets of serial ports, support external serial device modules (NFC module, printer, card reader, etc.) | ||
| TF card, maximum support 128GB | ||
| Class D power amplifier: default 3W*2 8 ohms, support microphone | ||
| Audio | MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP Format | |
| Video |
Support H.265/H.264/AV1/VP9/AVS2 video decoding, up to 8K60FPS Support H.264/H.265 video encoding, up to 8K30FPS |
|
| Picture | Support JPG, BMP, PNG and other image formats to browse and support rotation/slide show/image enlargement functions | |
| Power Adapter | Input: AC100-240V.50-60HZ, Output: DC12V 3A (positive inside and negative outside) | |
| Operating system | Android 12 and above |
| Basic software function | Web browsing, web chat, email, e-books, explorer |
| Sound mode | Clock, Alarm Clock, Calculator, Recording |
| Language support | Multi-lingual |
| Recording | Support MP3, WMA format recording |
| Tools | Calendar |
| Alarm Clock | |
| Calculator | |
| Note | |
| Weather+clock | |
| recording | |
| Word processing | EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT |
| E-book | PDF/TXT/CHM/DOC/EXCEL/EPUB/RTF/FB2 |
| Schedule | Calendar |
| Input method | Standard Andriod keyboard, optional third-party input method (Chinese, Korean, Japanese, etc.) |
| Network | Browser -ChromeLite |
| GOOGLE Market | |
| Gmail | |
| Google talk | |
| System Management | Support OTA remote upgrade, U disk upgrade, SD upgrade (silent installation) |
| Original ecological Android system, open root permission, and can carry out product customization development | |
| Customizable local or remote server management system | |
| Support multiple third-party Android remote advertising publishingsystems | |
| Support multiple serial devices, USB devices, IO control devices |
The Industrial ARM Board - Sunchip AD-C58 is a versatile and advanced product designed and manufactured in China. It comes with various certifications including ISO 90001, ISO 27001, CE and ROHS, ensuring high quality and reliability. This powerful board is ideal for various industrial applications and can meet different needs with its impressive features such as wifi support, high-performance CPU, and EDP interface.
The Industrial ARM Board is suitable for a wide range of applications, including but not limited to:
The Industrial ARM Board - Sunchip AD-C58 is a reliable and high-performance product that can meet various industrial needs. Its compact size and advanced features make it a versatile choice for a wide range of applications. With certifications such as ISO 90001, ISO 27001, CE, and ROHS, you can trust in its quality and stability. Contact us now to learn more and place your order.
1. PCBA design
2. Housing design
3. Software and hardware customization
4. Logo print on housing
5. Software customization: Booting image, Boot animation,UI, Launcher, APP, Function
6. Good quality products
7. full after-sales service with technology support
8.100% QC check before shipping
