Product Details:
|
| Usb: | 3 X USB 2.0, 3 X USB 3.0 | Cpu: | RK3588 |
|---|---|---|---|
| Wifi: | Support 802.11b/g/n/ac Protocol | Gpu: | ARM Mali-G610 MC4 |
| Bluetooth: | BT5.2 | Frequency: | 2.1GHz |
| Weight: | 0.2kg | UART: | 3 Sets Of Serial Ports |
| Highlight: | Industrial Devices Applications ARM Board,Touch Screen Industrial ARM Board,3 USB 2.0 Industrial ARM Board |
||

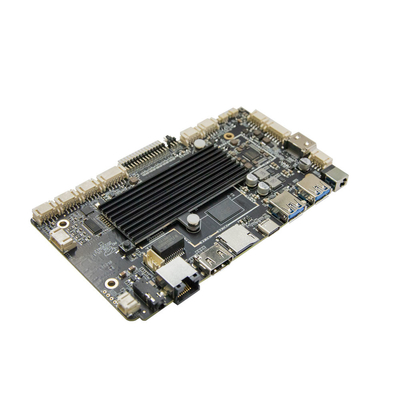

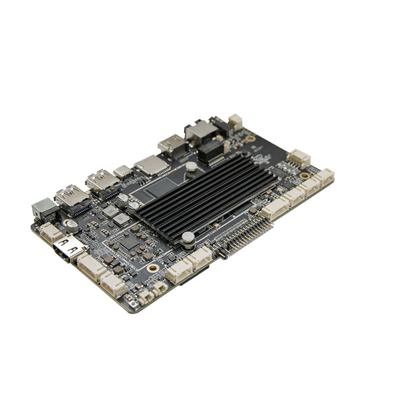

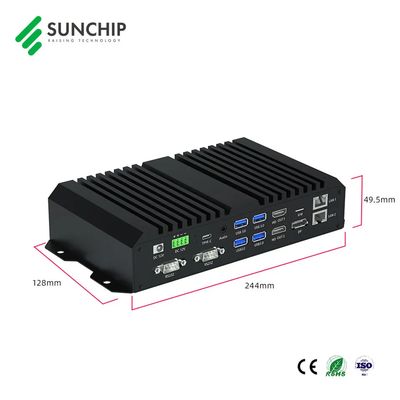

The intelligent industrial all-in-one machine features a large board with a powerful Rockchip RK3588 eight-core chip. It is compatible with the latest Android 12 operating system and has an enhanced power management circuit. With support for various external devices, this machine boasts a multitude of rich interfaces and offers stable performance. It is the perfect choice for intelligent remote network control in industrial, medical, large advertising machines, educational video terminals, and other equipment.
The device supports multiple interface options for display: LVDS, MIPI, and EDP. It also has the capability to display three screens simultaneously or different content on each screen. The device also supports HD OUT with a resolution of up to 8K@60FPS and HD IN, also with a resolution of up to 8K@60FPS.
In addition, the device offers a variety of interactive mode interfaces including capacitive touch, infrared touch, USB keyboard and mouse, as well as multi-point optical touch. This allows for versatile and convenient user interaction.
The device also offers multiple network interfaces, such as Ethernet (Gigabit), Wireless Wifi (Wifi6), and Bluetooth 5.0. This allows for seamless connectivity and networking capabilities.
Additionally, the device features a multi-channel USB interface and serial ports, providing various options for connecting external devices.
The device also has strong anti-electromagnetic interference and electromagnetic compatibility, ensuring stable performance and reliability even in environments with high levels of electromagnetic activity.
The CPU of this device is the Rockchip RK3588 , which features an octa-core 64-bit size core architecture. This includes 4 Cortex-A76 cores and 4 Cortex-A55 cores.
The main frequency of the large core is 2.1GHz, while the main frequency of the small core is 1.7GHz.
The GPU on this device is the ARM Mali-G610 MC4 , which supports various graphic standards such as OpenGL ES 1.1/2.0/3.1/3.2, Vulkan 1.1 and 1.2, OpenCL 1.1, 1.2, and 2.0. It also has an embedded high-performance 2D image acceleration module.
The device has an NPU with 6TOPS AI computing power and a triple-core architecture. It supports various AI scenarios and has the capability to process int4, int8, int16, FP16, BF16, and TF32 data.
The device has a 4GB, 8GB, or 16GB RAM options with up to 32GB of storage space with 64bit LPDDR4/LPDDR4x technology.
The device has built-in storage capacity options of EMMC 32G, 64G, 128G, or 256G which can be chosen based on user preferences.
The device has various display interface options including:
The device also supports different screen voltages including 3.3V, 5V, and 12V.
The device has I2C interface which can support various touch screen technologies such as multi-point resistive touch, multi-point capacitive touch, USB multi-point infrared touch, multi-point acoustic wave touch, and multi-point optical touch.
The device has an RJ45 interface which supports 10/100/1000M Ethernet and is equipped with the AP6275S industrial WiFi-6 module. It also has the SIDO/PCIE dual-channel Bluetooth WiFi module 2T2R 802.11 ax/ac/a/b/g/n Wi-Fi + BT 5.0 Module.
The device supports 0, 90, 180, and 270 degrees manual/automatic rotation and also has a gravity sensing function.
The device has a built-in real-time clock that is powered by battery.
The device features multiple interface devices including:
The device supports various audio formats including MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, and 3GPP.
| Operating system | Android 12 and above |
| Basic software function | Web browsing, web chat, email, e-books, explorer |
| Sound mode | Clock, Alarm Clock, Calculator, Recording |
| Language support | Multi-lingual |
| Recording | Support MP3, WMA format recording |
| Tools | Calendar |
| Alarm Clock | |
| Calculator | |
| Note | |
| Weather+clock | |
| recording | |
| Word processing | EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT |
| E-book | PDF/TXT/CHM/DOC/EXCEL/EPUB/RTF/FB2 |
| Schedule | Calendar |
| Input method | Standard Andriod keyboard, optional third-party input method (Chinese, Korean, Japanese, etc.) |
| Network | Browser -ChromeLite |
| GOOGLE Market | |
| Gmail | |
| Google talk | |
| System Management | Support OTA remote upgrade, U disk upgrade, SD upgrade (silent installation) |
| Original ecological Android system, open root permission, and can carry out product customization development | |
| Customizable local or remote server management system | |
| Support multiple third-party Android remote advertising publishingsystems | |
| Support multiple serial devices, USB devices, IO control devices |

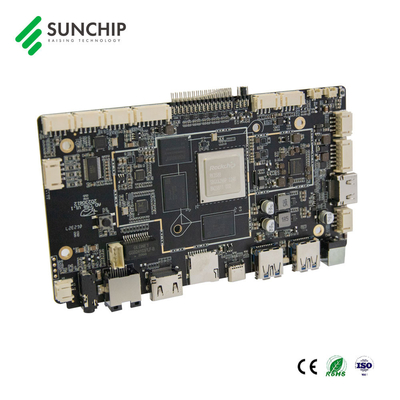

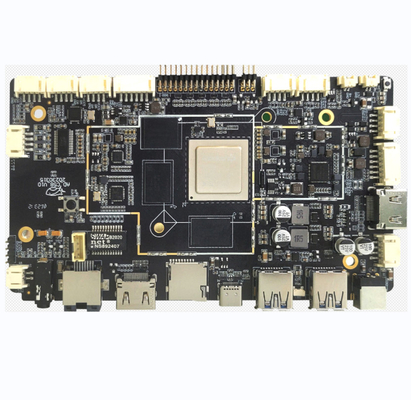

The Sunchip Industrial ARM Board AD-C58 is a high-performance, stable and reliable solution for industrial automation applications. Developed by Sunchip, a leading brand in the field of ARM-based boards, this product is designed to meet the demanding requirements of industrial environments.
The Sunchip Industrial ARM Board AD-C58 is proudly made in China and is certified with ISO 90001 and ISO 27001 for quality management and information security. It also meets the standards of CE and ROHS, ensuring its compliance with international regulations.
The minimum order quantity for the AD-C58 is 2 pieces, making it suitable for businesses of all sizes.
The price of the AD-C58 is negotiable, allowing customers to get the best deal for their specific needs.
The AD-C58 is packaged in boxes of 60 pieces, providing convenient and efficient storage and transportation.
The AD-C58 can be delivered within 2-5 days, ensuring quick and timely delivery to meet customers' urgent requirements.
The payment terms for the AD-C58 are TT in advance, providing a secure and reliable transaction process for customers.
The AD-C58 has a monthly supply ability of 60000 pieces, ensuring a steady and stable supply for customers.
The AD-C58 is equipped with a powerful 2.1GHz frequency, providing high-speed and efficient performance.
The AD-C58 runs on the popular Android operating system, providing a user-friendly and familiar interface for easy operation.
The AD-C58 is designed with an I2C interface for touch screen control, allowing for precise and responsive touch input.
The AD-C58 is equipped with the latest BT5.2 technology, providing fast and reliable wireless connectivity for various applications.
The Sunchip Industrial ARM Board AD-C58 is suitable for a wide range of applications and scenarios, including:
Choose the Sunchip Industrial ARM Board AD-C58 for your industrial automation needs and experience the benefits of a high-performance, stable, and reliable solution. Contact us today for more information and to place your order.
Our Industrial ARM Board, the Sunchip AD-C58, is a highly customizable and versatile product that is designed to meet the specific needs and requirements of our clients. With its advanced features and top-of-the-line specifications, our board is perfect for a wide range of industrial applications.
