Product Details:
|
| CPU: | RK3568 | Operation System: | Android 11 OS Version |
|---|---|---|---|
| Material: | Metal | Color: | Black |
| Ethernet: | 1000M LAN, Gigabit Ethernet X1 | WIFI Support: | Yes |
| GPS Support: | Yes, Optional | USB: | Yes |
| High Light: | Digital Signage Media Player Support WIFI,Android11 OS Digital Signage Media Player,4G Lte Digital Signage Player box |
||
| System | CPU | Quad-core 64 bits Cortex-A55,main frequency up to 2.0GHz | |||||||||||||
| GPU | ARM G52 2EE, supporting OpenGL ES 1.1/2.0/3.2,OpenCL 2.0,Vulkan 1.1, Embedded with high performance 2D acceleration hardware | ||||||||||||||
| NPU | Support 1T computing power | ||||||||||||||
| RAM | 2GB/4GB (optional) | ||||||||||||||
| ROM | 8GB/16GB/32GB/64GB (optional) | ||||||||||||||
| OS | Android 11 | ||||||||||||||
| Network | WiFi | IEEE 802.11b/g/n (Optional) | |||||||||||||
| Ethernet | Support 10/100/1000M Ethernet | ||||||||||||||
| Mobile Network | Support 4G lte netowkr (Optional) | ||||||||||||||
| Bluetooth | Bluetooth 5.2 | ||||||||||||||

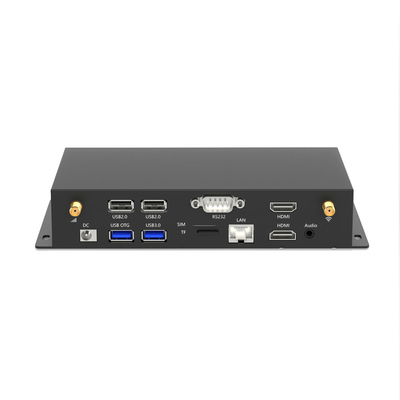

| Interfaces | Upper Layer Interfaces | RS232 | RS232 Male DB9*1 | ||||||||||||
| USB 2.0 | USB 2.0_A *2 | ||||||||||||||
| HDMI_OUT_2 | HDMI-A display port and support 1920*1080 60HZ output | ||||||||||||||
| Lower Layer Interfaces | DC*1 | DC_12V input and 5.5*2.1mm plug | |||||||||||||
| Earphone | 3.5mm and support Stereo headphone output | ||||||||||||||
| USB_OTG | USB_A *1 | ||||||||||||||
| USB 3.0 | USB 3.0_A *1 | ||||||||||||||
| HDMI_OUT_1 | HDMI-A 2.0 display output(Support 3840*2160 60HZ output) | ||||||||||||||
| SIM Card Slot | SIM Card Slot *1(Optional) | ||||||||||||||
| Extended Memory port | TF Card Slot *1 | ||||||||||||||
| Button | Button | Upgrade Button *1 | |||||||||||||
| Environmental Conditions | Working environment | Temperature: -20 ~ 60℃, 5%-85%RH (non-condensing) | |||||||||||||
| Storage environment | Temperature: -20 ~ 70℃, 5%-95%RH (non-condensing) | ||||||||||||||
| Material | Shell Material | Metal | |||||||||||||
| Size | Product Size | Shell Size 190.6*98.9*34.7mm | |||||||||||||
Media Player is a high-quality, versatile and powerful product developed by Sunchip and ADW, two leading technology companies in China. This innovative product is designed to meet the diverse needs of consumers and businesses, providing an unparalleled audio and visual experience.
The Media Player is suitable for a wide range of applications, making it a must-have for both personal and professional use. Some of the key scenarios where this product can be used include:
The Media Player boasts a wide range of features that set it apart from other media players in the market. Some of its key attributes include:
Conclusion
The Media Player from Sunchip and ADW is a top-of-the-line product that offers exceptional performance and versatility. With its advanced features and wide range of applications, it is a must-have for anyone looking for a high-quality media player or digital signage solution. So why wait? Get your hands on the Media Player today and experience the ultimate audio and visual experience!
Available Customization that from Sunchip:
Regarding software:
1. Booting logo/animation
2. Model number of the Android System
3. Build number of the Android System
4. Pre-install APK
5. Delete APK
6. Set defaulted time zone
7. Set defaulted language
8. Virtual Keyboard (the current defaulted is English Keyboard)
9. Other requirements etc.
Regarding hardware: ODM layout
……More customization is waiting for your checking.
Q1: How did I trust your company?
A: SUNCHIP a software and hardware solution provider who has 12-years old from Shenzhen, China. We have a good reputation in this industrial area when you check it with almost all of Shenzhen industrial suppliers.
Q2: How long will you ship out the goods after I place the order on you?
A: If in-stock, usually, it’ll take 1-3 days to prepare and ship out. Before shipping, we should do aging testing and normal function testing, QC inspection, then, ship out. If out of stock and need to re-produce the goods, it will take different lead time.
For android board, android media player box, android LCD digital signage machine, will take about 15-30 days, depending the product quantities and types.
Q3: After i get the products what if my products broken, what kind of service you support?
A: First contact us, tell us about the problem, our engineer will help to handle; secondly, you can send back the products to us, we will fix it. we support 12 months warranty, any problem catches me online, we can give you good solution way. we want to do long term business with you not just for 1 day 1 time.
Q4. Shipping solution?
We support Express, such as, DHL/FedEx/UPS/TNT etc., also support sea shipping, air shipping and railway shipping, depends on the customer’s request.
SUNCHIP mainly manufactures:
1, Android industrial Embedded ARM board: RK3588, RK3566, RK3568, RK3288, RK3399,
RK3328, RKPX30, RK3188, RK3128 etc.
2, 【4K】Android player box for digital signage advertising: RK3399, RK3288, RK3328 & RK3568.
3, 【8K】Android Player Box for Industrial-Control Application: RK3588.
4, Open frame LCD display signage: 8inch, 10.1inch, 13.3inch, 15.6inch, 21.5inch etc.
5, SKD Kit: Android board + LCD panel with touch or not:
7inch, 8inch, 10.1inch, 13.3inch, 15.6inch.
6, Other types of Wall Mounted / Floor Standing / Desktop LCD digital signage.
7, Embedded touch desk: such as 32inch.
8, Face recognition temperature detection terminal machine: such as 8inch.
[You can also tell us your detailed requirements, so that we advise you a matched solution]
