Product Details:
|
| CPU: | RK3588 | Name: | Digital Signage Box, Media Player Box, Edge Computing Device |
|---|---|---|---|
| Ethernet: | 1000M LAN, Gigabit Ethernet X2 | WIFI: | WIFI6 |
| DDR: | 4GB /8GB Optional | EMMC: | 32GB/ 64GB/ 128GB/ 256GB, Optional |
| Other Interface: | RS232 X2, RS485, Type-C, Speaker, For Optional | USB: | Or USB 3.0 X4 |
| Image Format: | JPEG, PNG, GIF, Etc. | Audio Format: | MP3, WAV, WMA, AAC, OGG, Etc. |
| High Light: | Android 12 OS Media Player,Media Player box For Digital Signage,Android 12 system Media Player |
||

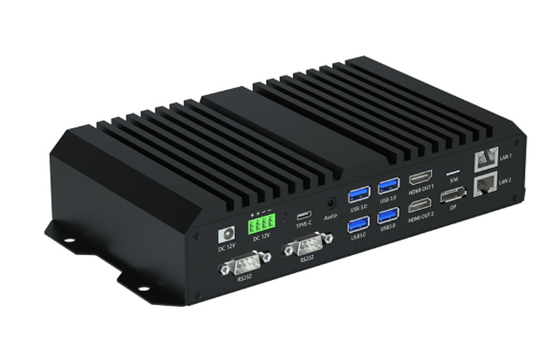

Name: RK3588 Edge Computing Device
Model: AD-0160
Intelligent industrial all-in-one large board, using Rockchip RK3588 octa-core chip solution. Support Android 12 system. Enhanced power management circuit, support common external devices, rich interface, stable performance. Suitable for intelligent remote network control: class industrial, medical, large advertising machines, educational video terminals and other equipment.
Support multiplexed display (single-port maximum support 7680*4320 60HZ)
Multiple interaction mode interface: capacitive touch, infrared remote control, USB keyboard and mouse, multi-point optical touch.
Multiple network interfaces: Ethernet, wireless Wifi, Bluetooth.
Multiple USB interfaces, RS3232, RS485 serial ports.
Strong resistance to electromagnetic interference and electromagnetic compatibility.
| System | CPU | RK3588 8-core CPU 8nm process 4 Cortex-A76 and 4 Cortex-A55 |
| GPU | ARM Mali G610 MP4 GPU | |
| NPU | INT4/INT8/INT16/FP16 mixed computing capability with up to 6TOPs of computing power (INT8) | |
| RAM | 8GB/16G (optional) | |
| Memory | 32GB/64GB/128GB/256GB (optional) | |
| Operating System | Android 12 | |
| Network | WiFi | IEEE 802.11 a/b/g/n/ac |
| Dual wired network | Support 1000M wired network network*2 | |
| Mobile Network | Support wireless 4G network | |
| Bluetooth | BT5.0 | |

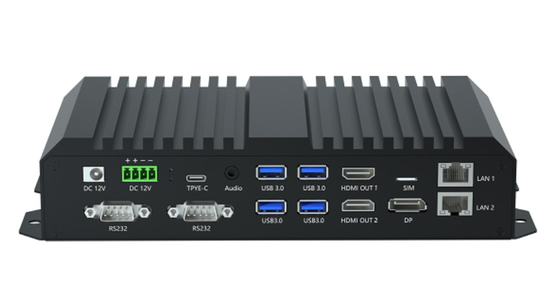

| Motherboard Interface | TYPE_C | Standard Type_c*1 |
| DC holder*1 | Front 5.5/2.5mm | |
| DC terminal input interface*1 | 4PIN pitch 3.81 terminal power input port*1 | |
| Headphones | 3.5MM support stereo with MIC headphone output port | |
| USB 3.0 | USB 3.0_A port*2 | |
| HDMI_OUT 1 | Support HDMI 2.1 _OUT*1 (maximum support 7680*4320 60HZ output for single HDMI display) | |
| SIM card | SIM card port*1 | |
| Ethernet port | Support 10/100/1000M Ethernet*1 | |
| Horn | Dual channel 4 Europe 5W speaker interface 4PIN spacing 3.81mm green terminals * 1 | |
| HDMI_IN | Support HDMI 2.0_4K input*1 | |
| Sub-board interface | RS232 COM port | RS232 output port DB9*2 |
| USB 3.0 | USB 3.0_A port*2 | |
| HDMI_OUT 2 | HDMI 4K 60HZ output*1 (this interface does not work when HDMI_OUT 1 is selected to output 8K) | |
| DP display interface | DP display output interface*1 7680x4320@30Hz output*1 | |
| Ethernet port | Support 10/100/1000M Ethernet*1 | |
| M.2 internal SSD interface | M.2 built-in SSD expansion interface*1 | |
| RS485 | RS485 3PIN pitch 3.81 green terminal block*1 | |
| Environmental parameters | General working temperature/humidity | Temperature:-20-60℃ Humidity 5%-85%RH(non-condensing) |
| General storage temperature/humidity | Temperature:-20-70℃ Humidity 5%-85%RH(non-condensing) | |
| Housing | Color | Black |
| Material | Aluminum alloy + metal profile | |
| Size | Motherboard Size | 200*125mm |
| Sub-board size | 200*125mm | |

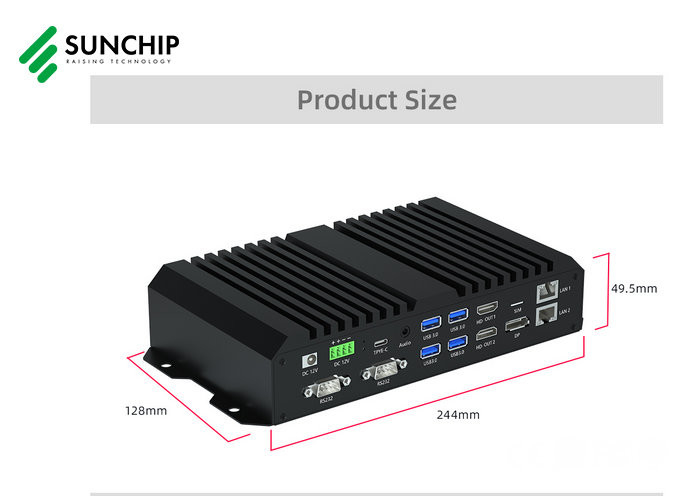

| Whole machine size | 244*128*49.5mm | |
| Other | Indicator light | Red and blue 2 colors |
| Button | Upgrade key*1 | |
| Power adapter | DC:12V/3A |
Brand Name: Sunchip, ADW
Model Number: AD-0160
Place of Origin: China
Certification: ISO 90001, ISO 27001, CE, ROHS
Minimum Order Quantity: 2pcs
Price: Negotiation
Packaging Details: 1pc/box
Delivery Time: 1-5days
Payment Terms: TT in advance
Supply Ability: 60000/Month
4G LTE support: Yes, Optional
Operation system: Android 12 OS Version
USB: USB 2.0x2, Or USB 3.0 X4
Material: Metal
Display support: HD X1 Or HD X2, Or /DP/Type-C
The Sunchip ADW Media Player is a revolutionary device that combines the functions of a media player, advertising platform, and entertainment system. It is designed to provide high-quality video and audio streaming, making it the perfect solution for any business or household looking to enhance their digital experience.
The Sunchip ADW Media Player is suitable for a wide range of applications and scenarios, including:
Our media player is proudly made in China and holds certifications for ISO 90001, ISO 27001, CE, and ROHS, ensuring top-notch quality and safety standards. With a minimum order quantity of 2 pieces, we are committed to providing a flexible and hassle-free purchasing experience for our clients.
Available Customization that from Sunchip:
Regarding software:
1. Booting logo/animation
2. Model number of the Android System
3. Build number of the Android System
4. Pre-install APK
5. Delete APK
6. Set defaulted time zone
7. Set defaulted language
8. Virtual Keyboard (the current defaulted is English Keyboard)
9. Other requirements etc.
Regarding hardware: ODM layout
……More customization is waiting for your checking.
Q1: How did I trust your company?
A: SUNCHIP a software and hardware solution provider who has 12-years old from Shenzhen, China. We have a good reputation in this industrial area when you check it with almost all of Shenzhen industrial suppliers.
Q2: How long will you ship out the goods after I place the order on you?
A: If in-stock, usually, it’ll take 1-3 days to prepare and ship out. Before shipping, we should do aging testing and normal function testing, QC inspection, then, ship out. If out of stock and need to re-produce the goods, it will take different lead time.
For android board, android media player box, android LCD digital signage machine, will take about 15-30 days, depending the product quantities and types.
Q3: After i get the products what if my products broken, what kind of service you support?
A: First contact us, tell us about the problem, our engineer will help to handle; secondly, you can send back the products to us, we will fix it. we support 12 months warranty, any problem catches me online, we can give you good solution way. we want to do long term business with you not just for 1 day 1 time.
Q4. Shipping solution?
We support Express, such as, DHL/FedEx/UPS/TNT etc., also support sea shipping, air shipping and railway shipping, depends on the customer’s request.
SUNCHIP mainly manufactures:
1, Android industrial Embedded ARM board: RK3588, RK3566, RK3568, RK3288, RK3399,
RK3328, RKPX30, RK3188, RK3128 etc.
2, 【4K】Android player box for digital signage advertising: RK3399, RK3288, RK3328 & RK3568.
3, 【8K】Android Player Box for Industrial-Control Application: RK3588.
4, Open frame LCD display signage: 8inch, 10.1inch, 13.3inch, 15.6inch, 21.5inch etc.
5, SKD Kit: Android board + LCD panel with touch or not:
7inch, 8inch, 10.1inch, 13.3inch, 15.6inch.
6, Other types of Wall Mounted / Floor Standing / Desktop LCD digital signage.
7, Embedded touch desk: such as 32inch.
8, Face recognition temperature detection terminal machine: such as 8inch.
[You can also tell us your detailed requirements, so that we advise you a matched solution]
