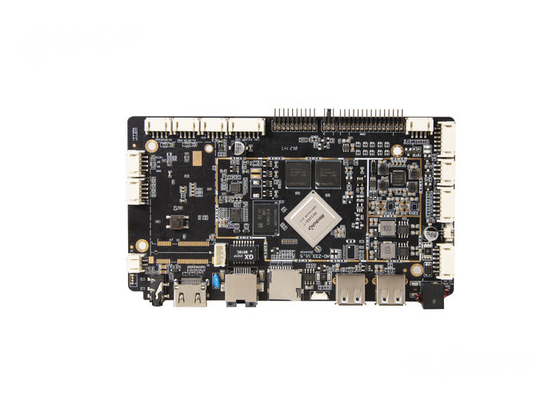

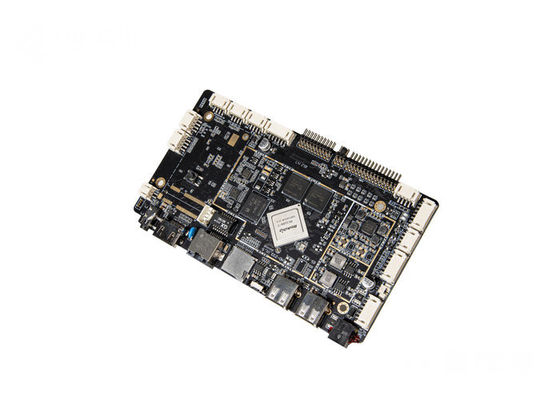

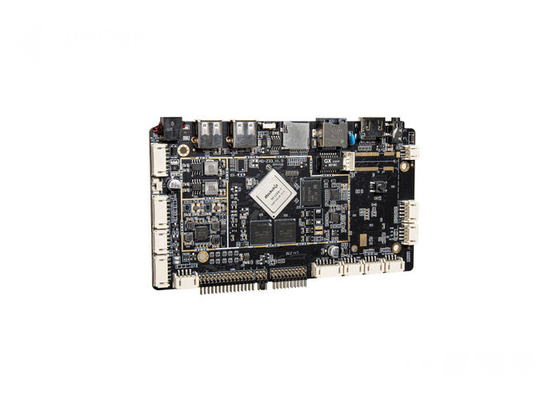

RK3288 Android All In One Mainboard For ARM Industrial Computing / Digital Signage

RK3288 Android All In One Mainboard For ARM Industrial Computing / Digital Signage
RK3288 Android All In One Mainboard For ARM Industrial Computing / Digital Signage
RK3288 Android All In One Mainboard For ARM Industrial Computing / Digital Signage RK3288 Android All In One Mainboard For ARM Industrial Computing / Digital Signage RK3288 Android All In One Mainboard For ARM Industrial Computing / Digital Signage RK3288 Android All In One Mainboard For ARM Industrial Computing / Digital Signage RK3288 Android All In One Mainboard For ARM Industrial Computing / Digital Signage RK3288 Android All In One Mainboard For ARM Industrial Computing / Digital Signage

Large Image :  RK3288 Android All In One Mainboard For ARM Industrial Computing / Digital Signage

Product Details:
Place of Origin: CHINA
Brand Name: Sunchip, ADW
Certification: CE, ROHS, FCC, ISO9001
Model Number: AD-Z33M
Payment & Shipping Terms:
Minimum Order Quantity: 2pcs
Price: Negotiated
Packaging Details: 60pcs/Carton
Delivery Time: Samples sent out 1-7 days, MP lead time 15-30 days
Payment Terms: T/T, Western Union, PayPal
Supply Ability: 10,000pcs/Month

RK3288 Android All In One Mainboard For ARM Industrial Computing / Digital Signage

Description
Bluetooth: 5.2 GPU: Mali-T764
ROM: 16GB/32GB EMMC Card Reader: TF Card Reader
RAM: 2GB/4GB Camera: Support USB Camera And MIPI Camera
Power Supply: DC 12V/2A CPU: Rockchip RK3288
High Light:

RK3288 All In One Mainboard

,

Digital Signage All In One Mainboard

,

RK3288 all in one motherboard

Quad-core RK3288 android all-in-one Mainboard for ARM industrial computing and digital signage, lvds mipi display

Model: AD-Z33M





Product Description:

Intelligent industrial all-in-one large board, using Rockchip RK3288 quad-core chip solution. Support Android 5.1-10 and above system. Enhanced power management circuit. Support common external devices. Rich interface and stable performance. Suitable for intelligent remote network control: class industrial, medical, large advertising machines, educational video terminals and other equipment.


Rockchip Co-product Designer

Introduction

DJ-3288K with standard 3.5-inch motherboard design, is a high cost-effective commercial motherboard. Based on the new generation of ultra-high performance Rockchip RK3288 Cortex-A17 quad-core application processor, frequency up to 1.8GHz, Internal Integrated Mali-T764 GPU, perfect support 4K, H.265 hardware decoding, motherboard designed LVDS, MIPI, eDP, HDMI LCD display interfaces used for human-computer interaction, fully meet the application requirement of digital signage, self-service terminal, advertising machine, smart devices , IOT gateway, retail terminal, industrial control host and so on.



RK3288 Board is a custom PCBA board, industrial motherboard and mother board, which is equipped with the Rockchip RK3288 processor. It supports Bluetooth 5.2 and features a Mali-T764 GPU. It has a power supply of DC 12V/2A and comes with a built-in WiFi 802.11 B/g/n (2.4G/5G Wifi Optional) network. This PCBA board can be easily customized to meet the specific requirements of various industrial and commercial applications.



Features:

  • Product Name: RK3288 Board
  • Industrial Motherboard, android mainboard, Industrial Circuit Board
  • GPU: Mali-T764
  • Card Reader: TF Card Reader
  • Power Supply: DC 12V/2A
  • Display: LVDS/EDP/MIPI/HD Out Are Optional
  • RAM: 2GB/4GB



  1. Support all kinds of LVDS interface displays from 7" to 84" (point to point full HD display 1920*1080).
  2. Support MIPI interface display.
  3. Multiple interaction mode interface: capacitive touch, infrared touch, infrared remote control, USB keyboard and mouse, multi-point optical touch.
  4. Multiple network interfaces: Ethernet, wireless WIFI, Bluetooth, 4G (optional)
  5. Multiple USB ports, serial ports.
  6. Strong resistance to electromagnetic interference and compatibility.

Technical Parameters:

Parameter Description
Audio 3.5mm Audio Jack
Display LVDS/EDP/MIPI/HD Out Are Optional
Bluetooth 5.2
Card Reader TF Card Reader
GPU Mali-T764
OS Android 7-10 Version
Network WiFi 802.11 B/g/n (2.4G/5G Wifi Optional)
Camera Support USB Camera And MIPI Camera
RAM 2GB/4GB
ROM 16GB/32GB EMMC



CPU Rockchip RK3288 Quad-core Cortex-A17 Quad-core GPU Mali-T764
Main Frequency 1.8 GHz
RAM LPDDR3 2G/4G optional
Internal Storage EMMC 8GB/16G/32G/64G optional
Display Interface LVDS interface (single-channel, 6-bit dual-channel, 8-bit dual-channel). Support maximum resolution 1920x1080, support 7"-84" display
MIPI interface
Screen Voltage Support 3.3V/5V/12V optional
Touch Screen

Provide I2C interface (support multi-point resistive touch, multi-point capacitive touch)

Support USB multi-point infrared touch, multi-point acoustic touch, multi-point optical touch

Network With RJ45 interface, support 10/100/1000M Ethernet.
Equipped with wifi&BT module, supporting Wi-Fi 802.11b/g/n protocol. Support BT 5.2
4G(optional)

Image rotation Support 0-degree, 90-degree, 180-degree, 270-degree manual/auto rotation, support gravity sensor function
Real Time Clock External real-time clock power supply battery
Interface Device Support MIPI interface camera, support up to 500W pixels
4 USB HOST, 1 USB OTG (supports usb camera @ 500W usb printer, USB stick, mouse, keyboard standard usb peripherals)
3 groups of serial ports. Support external serial device modules (NFC module, printer, card swiper, etc.)
TF card, supports up to 32GB
Class D amplifier: 3W*2 8 ohms, microphone support
HDMI 2.0 output

Audio MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A,3GPP
Video Support H.264, MPEG2, VP6, VP8, MVC and other video formats 2160P@24FPS decoding. YouTube and other online videos, up to 4K, HTML5 video playback, Flash 10.1 playback
Image Support JPG, BMP, PNG and other image format browsing and support rotation/slide show/picture zoom function
Power Adapter Input:AC100-240V.50-60HZ, Output:DC12V 3A

RK3288 Android All In One Mainboard For ARM Industrial Computing / Digital Signage 0

RK3288 Android All In One Mainboard For ARM Industrial Computing / Digital Signage 1

Applications:

Application scenarios:

Restaurant Digital Menu Boards, Retail shop - Digital Menu Boards, Retail Digital Signage,

Hotel Digital Signage, HealthCare Digital Signage,



Hotel catering, Advertising machine, Bank & Finance machine, School & Education product, Transportation product, Face recognition machine, electronic whiteboard, POS payment terminal, POS machine, Hospital self-service terminal, Commercial tablet, Smart evaluation machine,



Smart access control, Car entertainment machine, Super mall, Supermarket, Industrial control

Multi-screen display, multi-media query machine, Convenient store, Restaurant, Railway station, Airport.

RK3288 Android All In One Mainboard For ARM Industrial Computing / Digital Signage 2

Android board with lvds output

1. Rockchip RK3288 Quad Core Cortex-A17,up to 1.8GHz

2. Support 4K*2K 10bits VP9/H265/H264 video decoing,up60fps.
3. Apply to Kiosk, Financial mahcine, Advertising Machine,Vending machine etc.


Customization:

RK3288 Board

Brand Name: Sunchip, ADW
Model Number: AD-B02P, AD-Z37, AD-Z37M, AD-Z33, AD-Z33M
Place of Origin: CHINA



Available Customization that from Sunchip:

Regarding software:

1. Booting logo/animation

2. Model number of the Android System

3. Build number of the Android System

4. Pre-install APK

5. Delete APK

6. Set defaulted time zone

7. Set defaulted language

8. Virtual Keyboard (the current defaulted is English Keyboard)

9. Other requirements etc.



Regarding hardware: ODM layout

……More customization is waiting for your checking.



Support and Services:

Introduction of the advantages from Sunchip:

1, More than 10 years of PCBA design and production experience.

2, A R&D team of more than 80 people, including hardware engineers (layout, debugging) and software engineers (drivers, kernels, testing, apk engineers).

ID Design engineer, Mechanical Design engineer, -> Support OEM/ODM.

3, Team of more than 160 people.

4, One-stop service: PCB design, prototype, production, PCBA SMT, testing, shell design, assembly, software customization, QC control, after-sales.

5, Got ISO9001 factory certification.

6, More than 3500 square meters of office and factory area

Packing and Shipping:

RK3288 Android All In One Mainboard For ARM Industrial Computing / Digital Signage 3

FAQ:

Q: What is the brand name of RK3288 Board?
A: RK3288 Board is manufactured by Sunchip and ADW.
Q: What are the model numbers of RK3288 Board?
A: RK3288 Board model numbers are AD-B02P, AD-Z37, AD-Z37M, AD-Z33, AD-Z33M.
Q: Where is RK3288 Board manufactured?
A: RK3288 Board is manufactured in China.
Q: What certifications does RK3288 Board have?
A: RK3288 Board has CE, ROHS, FCC, and ISO9001 certifications.
Q: How many RK3288 Boards can be ordered at a time?
A: The minimum order quantity for RK3288 Board is 2pcs.


Q1: How did I trust your company?
A: SUNCHIP a software and hardware solution provider who has 12-years old from Shenzhen, China. We have a good reputation in this industrial area when you check it with almost all of Shenzhen industrial suppliers.
Q2: How long will you ship out the goods after I place the order on you?
A: If in-stock, usually, it’ll take 1-3 days to prepare and ship out. Before shipping, we should do aging testing and normal function testing, QC inspection, then, ship out. If out of stock and need to re-produce the goods, it will take different lead time.

For android board, android media player box, android LCD digital signage machine, will take about 15-30 days, depending the product quantities and types.
