Product Details:
|
| Bluetooth: | 5.2 | Network: | WiFi 802.11 B/g/n (2.4G/5G Wifi Optional) |
|---|---|---|---|
| Display: | LVDS/EDP/HD Out Are Optional | ROM: | 16GB/32GB EMMC |
| Audio: | 3.5mm Audio Jack | CPU: | Rockchip RK3288 |
| RAM: | 2GB/4GB | OS: | Android 7-10 Version |
| High Light: | RK3288 Android Motherboard,RK3288 Board For Advertising Display,RK3288 Board For LCD Display |
||

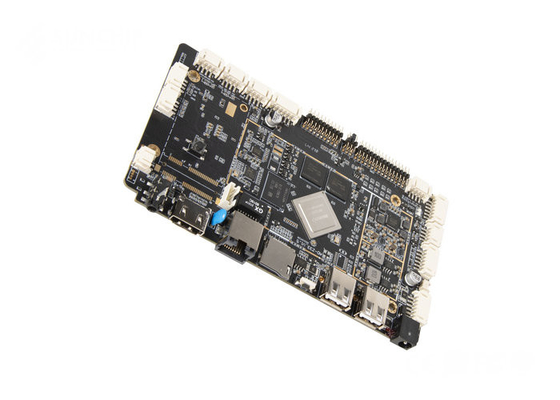

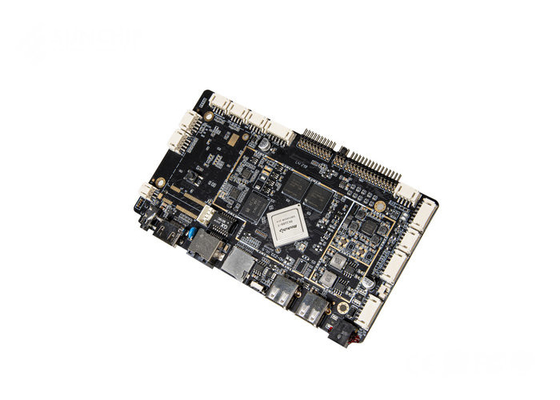

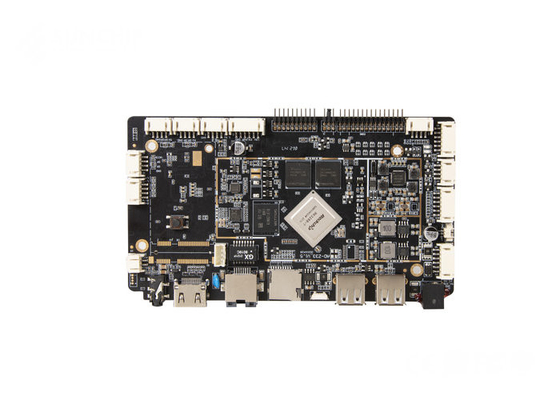

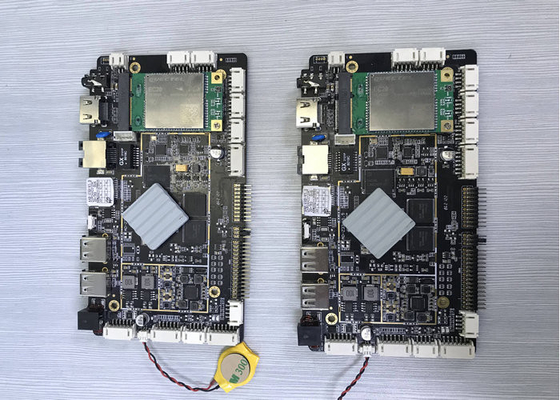

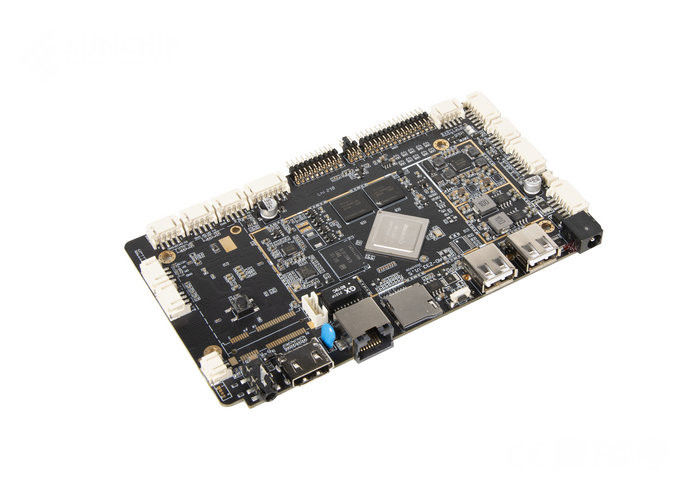

Rockchip RK3288 Android Motherboard For indoor Digital Lcd Advertising display Playing Equipment
Model: AD-Z33
The big board of intelligent industrial all-in-one machine adopts Rockchip RK3288 quad-core chip solution. Support Android8.0 and above system. Enhanced power management circuitry. Support common external devices. Rich interfaces and stable performance. Suitable for intelligent remote network control: industrial, medical, large advertising machines, educational video terminals and other equipment.
RK3288 Board is a high-performance android motherboard powered by a 12V/2A DC power supply. It is the perfect choice for android 10 motherboards. This mainboard features 2GB/4GB RAM, a 3.5mm audio jack, 16GB/32GB EMMC ROM, and support for both USB camera and MIPI camera. It is a reliable and powerful android motherboard for various applications.
Supports various LVDS interface displays from 7 inches to 84 inches (point-to-point full HD display 1920*1080).
■Support EDP interface display.
■Multiple interactive mode interfaces: capacitive touch, infrared touch, infrared remote control, USB mouse and keyboard, multi-point optical touch.
■Multiple network interfaces: Ethernet, Wireless Wifi, Bluetooth.
■Multi-channel USB interface, serial port.
■Strong anti-electromagnetic interference and electromagnetic compatibility.
| Parameter | Value |
|---|---|
| CPU | Rockchip RK3288 |
| OS | Android 7-10 Version |
| Camera | Support USB Camera And MIPI Camera |
| Network | WiFi 802.11 B/g/n (2.4G/5G Wifi Optional) |
| Card Reader | TF Card Reader |
| RAM | 2GB/4GB |
| ROM | 16GB/32GB EMMC |
| Power Supply | DC 12V/2A |
| Display | LVDS/EDP/MIPI/HD Out Are Optional |
| Bluetooth | 5.2 |
| Custom PCB Board | Yes |
| Android 10 mainboard | Yes |
| Display PCB Board | Yes |
| CPU | Rockchip RK3288 Quad-Core Cortex-A17 Quad-Core GPU Mali-T764 |
| Frequency | 1.8 GHz |
| RAM | LPDDR3 2G/4G optional |
| Built-in storage capacity | EMMC 8GB/16G/32G/64G optional |
| Display interface | LVDS interface (single, 6-bit dual, 8-bit dual). Support maximum resolution 1920x1080, support 7"-84" display |
| EDP port | |
| Backlight Voltage | Support 3.3V / 5V / 12V optional |
| Touch screen |
Provides I2C interface (can support multi-point resistance touch, multi-point capacitive touch). Support USB multi-point infrared touch, multi-point sound wave touch, multi-point optical touch. |
| Internet | With RJ45 interface, support Ethernet. |
| With WIFI & BT module, support Wi-Fi 802.11b / g / n protocol. Support BT4.0 |
| Image rotation | Support 0 degrees, 90 degrees, 180 degrees, 270 degrees manual / automatic rotation, support gravity sensing function |
|
Real Time Clock
|
Built-in real-time clock powered battery |
| Interface device | Support MIPI interface camera, up to 500W pixels |
| 4 USB HOST, 1 USB OTG (support USB camera@500W USB printer, U disk, mouse, keyboard, standard USB peripherals) |
| Interface device | Support MIPI interface camera, up to 500W pixels |
| 4 USB HOST, 1 USB OTG (support USB camera@500W USB printer, U disk, mouse, keyboard, standard USB peripherals) | |
| 3 sets of serial ports. Support external serial device modules (NFC modules, printers, card readers, etc.) | |
| TF card, maximum support 32GB | |
| Class D amplifier: 3W*2 8 ohms, support microphone | |
| HDMI 2.0 output | |
| Audio | MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A,3GPP format |
| Video | Support H.264, VP8, RV, WMV, AVS, H.263, MPEG4 and other video formats 1080P decoding, YouTube and other online video, up to 1080P, HTML5 video playback, Flash10.1 play |
| Picture | Support JPG, BMP, PNG and other picture formats to browse and support the rotation / slide show / picture zoom |
| Power Adapter | Input:AC100-240V.50-60HZ, Output: DC12V 3A |
Sunchip and ADW's Rockchip RK3288 Board is an advanced android mainboard designed for a wide range of applications. It is a powerful Elevator PCB Board that supports the latest Android 7-10 version and is equipped with the Rockchip RK3288 CPU. It also features built-in WiFi 802.11 b/g/n (2.4G/5G Wifi Optional) and USB Camera and MIPI Camera support. This android 10 motherboard also comes with a DC 12V/2A power supply and is certified with CE, ROHS, FCC, and ISO9001. The minimum order quantity is 2pcs and the price is negotiable. It comes with 60pcs/Carton packaging and samples can be sent out in 1-7 days while the MP lead time is 15-30 days. The payment terms are 100% T/T for samples and negotiable for MP and the supply ability is 10,000pcs/Month.
Available Customization that from Sunchip:
Regarding software:
1. Booting logo/animation
2. Model number of the Android System
3. Build number of the Android System
4. Pre-install APK
5. Delete APK
6. Set defaulted time zone
7. Set defaulted language
8. Virtual Keyboard (the current defaulted is English Keyboard)
9. Other requirements etc.
Regarding hardware: ODM layout
……More customization is waiting for your checking.
Introduction of the advantages from Sunchip:
1, More than 10 years of PCBA design and production experience.
2, A R&D team of more than 80 people, including hardware engineers (layout, debugging) and software engineers (drivers, kernels, testing, apk engineers).
ID Design engineer, Mechanical Design engineer, -> Support OEM/ODM.
3, Team of more than 160 people.
4, One-stop service: PCB design, prototype, production, PCBA SMT, testing, shell design, assembly, software customization, QC control, after-sales.
5, Got ISO9001 factory certification.
6, More than 3500 square meters of office and factory area
A1: The brand name is Sunchip and ADW. The model numbers are AD-B02P, AD-Z37, AD-Z37M, AD-Z33, AD-Z33M.
A2: The RK3288 Board is manufactured in China.
A3: The RK3288 Board meets CE, ROHS, FCC, and ISO9001 certifications.
A4: The minimum order quantity of RK3288 Board is 2pcs.
A5: The samples can be sent out within 1-7 days while the mass production lead time is 15-30 days.
SUNCHIP mainly manufactures:
1, Android industrial Embedded ARM board: RK3588, RK3566, RK3568, RK3288, RK3399,
RK3328, RKPX30, RK3188, RK3128 etc.
2, 【4K】Android player box for digital signage advertising: RK3399, RK3288, RK3328 & RK3568.
3, 【8K】Android Player Box for Industrial-Control Application: RK3588.
4, Open frame LCD display signage: 8inch, 10.1inch, 13.3inch, 15.6inch, 21.5inch etc.
5, SKD Kit: Android board + LCD panel with touch or not:
7inch, 8inch, 10.1inch, 13.3inch, 15.6inch.
6, Other types of Wall Mounted / Floor Standing / Desktop LCD digital signage.
7, Embedded touch desk: such as 32inch.
8, Face recognition temperature detection terminal machine: such as 8inch.
[You can also tell us your detailed requirements, so that we advise you a matched solution]
