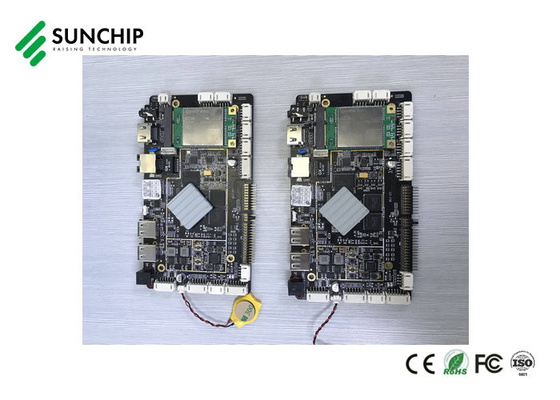

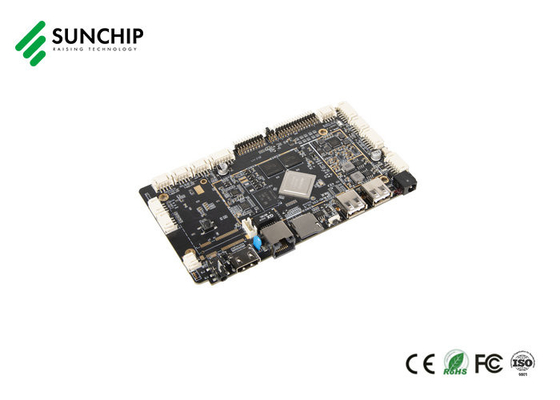

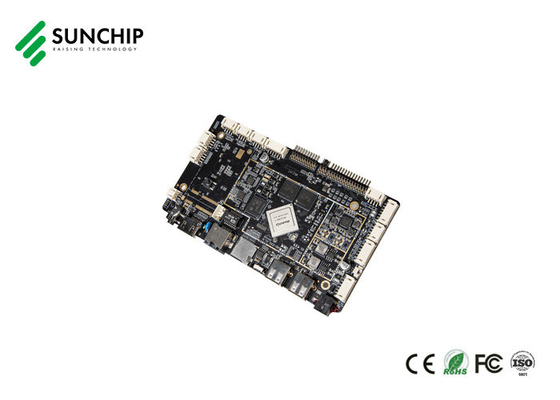

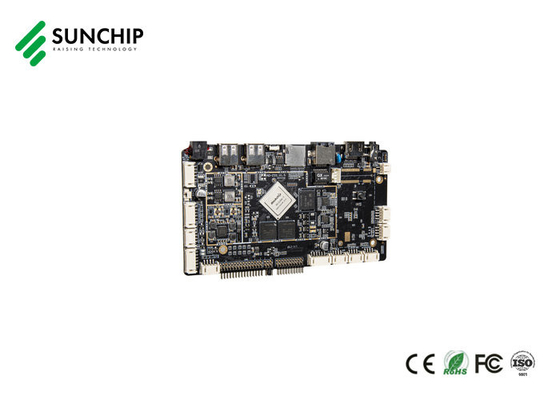

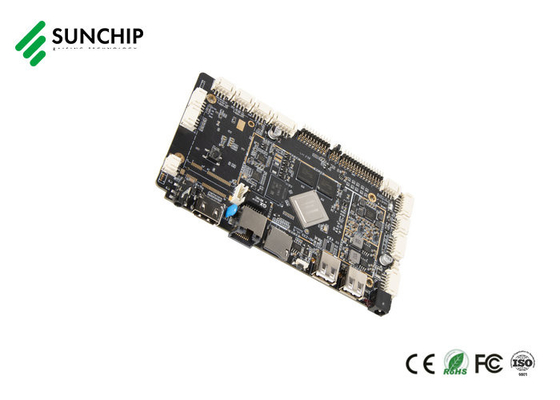

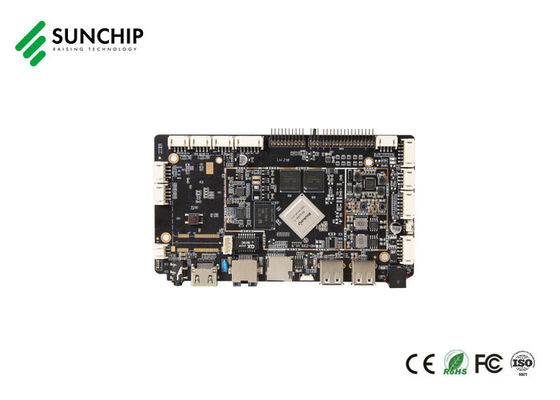

Rockchip Android OS RK3288 board LVDS EDP For POS Digital Tablet Advertising Machine

Rockchip Android OS RK3288 board LVDS EDP For POS Digital Tablet Advertising Machine
Rockchip Android OS RK3288 board LVDS EDP For POS Digital Tablet Advertising Machine
Rockchip Android OS RK3288 board LVDS EDP For POS Digital Tablet Advertising Machine Rockchip Android OS RK3288 board LVDS EDP For POS Digital Tablet Advertising Machine Rockchip Android OS RK3288 board LVDS EDP For POS Digital Tablet Advertising Machine Rockchip Android OS RK3288 board LVDS EDP For POS Digital Tablet Advertising Machine Rockchip Android OS RK3288 board LVDS EDP For POS Digital Tablet Advertising Machine Rockchip Android OS RK3288 board LVDS EDP For POS Digital Tablet Advertising Machine Rockchip Android OS RK3288 board LVDS EDP For POS Digital Tablet Advertising Machine

Large Image :  Rockchip Android OS RK3288 board LVDS EDP For POS Digital Tablet Advertising Machine

Product Details:
Place of Origin: CHINA
Brand Name: Sunchip, ADW
Certification: CE, ROHS, FCC, ISO9001
Model Number: AD-Z33
Payment & Shipping Terms:
Minimum Order Quantity: 2pcs
Price: Negotiated
Packaging Details: 60pcs/Carton
Delivery Time: Samples sent out 1-7 days, MP lead time 15-30 days
Payment Terms: T/T, Western Union, PayPal
Supply Ability: 10,000pcs/Month

Rockchip Android OS RK3288 board LVDS EDP For POS Digital Tablet Advertising Machine

Description
Bluetooth: 5.2 OS: Android 7-10 Version
Card Reader: TF Card Reader Audio: 3.5mm Audio Jack
RAM: 2GB/4GB CPU: Rockchip RK3288
Display: LVDS/EDP/HD Out Are Optional Network: WiFi 802.11 B/g/n (2.4G/5G Wifi Optional)
High Light:

RK3288 Board For Advertising Machine

,

LVDS EDP Android Motherboard

,

RK3288 Board For POS Tablet

Rockchip RK3288 Android OS Motherboard Lvds Edp for POS Digital Tablet Advertising Machine

Model: AD-Z33



Product Description:

RK3288 Board is an industrial circuit board and android mainboard, with a powerful Rockchip RK3288 CPU, 2GB/4GB RAM and a TF Card Reader. It also supports USB Camera and MIPI Camera, and a 3.5mm Audio Jack. It is an industrial motherboard with superior performance that meets the needs of modern industrial application development.



The big board of intelligent industrial all-in-one machine adopts Rockchip RK3288 quad-core chip solution. Support Android8.0 and above system. Enhanced power management circuitry. Support common external devices. Rich interfaces and stable performance. Suitable for intelligent remote network control: industrial, medical, large advertising machines, educational video terminals and other equipment.

Features:

  • Product Name: RK3288 Board
  • OS: Android 7-10 Version
  • ROM: 16GB/32GB EMMC
  • CPU: Rockchip RK3288, industrial circuit board, android 10 motherboard
  • Camera: Support USB Camera And MIPI Camera
  • RAM: 2GB/4GB





Supports various LVDS interface displays from 7 inches to 84 inches (point-to-point full HD display 1920*1080).



■Support EDP interface display.



■Multiple interactive mode interfaces: capacitive touch, infrared touch, infrared remote control, USB mouse and keyboard, multi-point optical touch.



■Multiple network interfaces: Ethernet, Wireless Wifi, Bluetooth.



■Multi-channel USB interface, serial port.



■Strong anti-electromagnetic interference and electromagnetic compatibility.



Technical Parameters:

Technical Parameters Details
CPU Rockchip RK3288
Display LVDS/EDP/MIPI/HD Out Are Optional
Bluetooth 5.2
Network WiFi 802.11 B/g/n (2.4G/5G Wifi Optional)
Card Reader TF Card Reader
Camera Support USB Camera And MIPI Camera
ROM 16GB/32GB EMMC
Audio 3.5mm Audio Jack
RAM 2GB/4GB
GPU Mali-T764
Application Industrial Control Board, android motherboards, android motherboards for digital signage, industrial touch screen motherboards



CPU Rockchip RK3288 Quad-Core Cortex-A17 Quad-Core GPU Mali-T764
Frequency 1.8 GHz
RAM LPDDR3 2G/4G optional
Built-in storage capacity EMMC 8GB/16G/32G/64G optional
Display interface LVDS interface (single, 6-bit dual, 8-bit dual). Support maximum resolution 1920x1080, support 7"-84" display
EDP port
Backlight Voltage Support 3.3V / 5V / 12V optional
Touch screen

Provides I2C interface (can support multi-point resistance touch, multi-point capacitive touch).

Support USB multi-point infrared touch, multi-point sound wave touch, multi-point optical touch.

Internet With RJ45 interface, support Ethernet.
With WIFI & BT module, support Wi-Fi 802.11b / g / n protocol. Support BT4.0
Image rotation Support 0 degrees, 90 degrees, 180 degrees, 270 degrees manual / automatic rotation, support gravity sensing function

Real Time Clock



Built-in real-time clock powered battery

Interface device Support MIPI interface camera, up to 500W pixels
4 USB HOST, 1 USB OTG (support USB camera@500W USB printer, U disk, mouse, keyboard, standard USB peripherals)
3 sets of serial ports. Support external serial device modules (NFC modules, printers, card readers, etc.)
TF card, maximum support 32GB
Class D amplifier: 3W*2 8 ohms, support microphone
HDMI 2.0 output
Audio MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A,3GPP format
Video Support H.264, VP8, RV, WMV, AVS, H.263, MPEG4 and other video formats 1080P decoding, YouTube and other online video, up to 1080P, HTML5 video playback, Flash10.1 play
Picture Support JPG, BMP, PNG and other picture formats to browse and support the rotation / slide show / picture zoom
Power Adapter Input:AC100-240V.50-60HZ, Output: DC12V 3A

Rockchip Android OS RK3288 board LVDS EDP For POS Digital Tablet Advertising Machine 0Rockchip Android OS RK3288 board LVDS EDP For POS Digital Tablet Advertising Machine 1

Applications:

The Sunchip ADW RK3288 Board is a powerful and versatile Android 10 mainboard that is designed for a wide range of applications. It is equipped with advanced features such as CE and ROHS certification, FCC and ISO9001 certification, and a minimum order quantity of 2pcs. It is packed in 60pcs/Carton and can be shipped within 1-7 days for samples and 15-30 days for MP orders. The price is negotiable and the payment terms are 100% T/T for samples and negotiable for MP orders. The supply ability is 10,000pcs/Month. It is equipped with a powerful Mali-T764 GPU and supports USB Camera and MIPI Camera. It also supports WiFi 802.11 B/g/n (2.4G/5G Wifi Optional) and Bluetooth 5.2. Furthermore, it comes with LVDS/EDP/MIPI/HD Out Are Optional.

The Sunchip ADW RK3288 Board is the perfect choice for a wide range of applications such as home entertainment, industrial control, medical equipment, digital signage, and more. It provides a reliable, fast, and energy-efficient platform, making it ideal for a wide range of applications. With its advanced features and versatile applications, the Sunchip ADW RK3288 Board is the perfect choice for any project that needs a powerful and reliable Android 10 mainboard.



Rockchip Android OS RK3288 board LVDS EDP For POS Digital Tablet Advertising Machine 2Rockchip Android OS RK3288 board LVDS EDP For POS Digital Tablet Advertising Machine 3

Customization:

Available Customization that from Sunchip:

Regarding software:

1. Booting logo/animation

2. Model number of the Android System

3. Build number of the Android System

4. Pre-install APK

5. Delete APK

6. Set defaulted time zone

7. Set defaulted language

8. Virtual Keyboard (the current defaulted is English Keyboard)

9. Other requirements etc.



Regarding hardware: ODM layout

……More customization is waiting for your checking.



Support and Services:

Introduction of the advantages from Sunchip:

1, More than 10 years of PCBA design and production experience.

2, A R&D team of more than 80 people, including hardware engineers (layout, debugging) and software engineers (drivers, kernels, testing, apk engineers).

ID Design engineer, Mechanical Design engineer, -> Support OEM/ODM.

3, Team of more than 160 people.

4, One-stop service: PCB design, prototype, production, PCBA SMT, testing, shell design, assembly, software customization, QC control, after-sales.

5, Got ISO9001 factory certification.

6, More than 3500 square meters of office and factory area

Rockchip Android OS RK3288 board LVDS EDP For POS Digital Tablet Advertising Machine 4

Packing and Shipping:

Rockchip Android OS RK3288 board LVDS EDP For POS Digital Tablet Advertising Machine 5

FAQ:

Q: What is the brand name of RK3288 Board?
A: The brand name of RK3288 Board is Sunchip and ADW.
Q: What are the model numbers of RK3288 Board?
A: The model numbers of RK3288 Board are AD-B02P, AD-Z37, AD-Z37M, AD-Z33, AD-Z33M.
Q: Where is RK3288 Board produced?
A: RK3288 Board is produced in China.
Q: What certifications does RK3288 Board have?
A: RK3288 Board has CE, ROHS, FCC and ISO9001 certifications.
Q: What is the minimum order quantity for RK3288 Board?
A: The minimum order quantity for RK3288 Board is 2pcs.
