Product Details:
|
| Audio: | 3.5mm Audio Jack | GPU: | Mali-T764 |
|---|---|---|---|
| OS: | Android 7-10 Version | Network: | WiFi 802.11 B/g/n (2.4G/5G Wifi Optional) |
| Bluetooth: | 5.2 | Display: | LVDS/EDP/MIPI/HD Out Are Optional |
| RAM: | 2GB/4GB | Card Reader: | TF Card Reader |
| High Light: | Smart RK3288 Board,RK3288 Board For Display,MIPI EDP Port RK3288 Board |
||

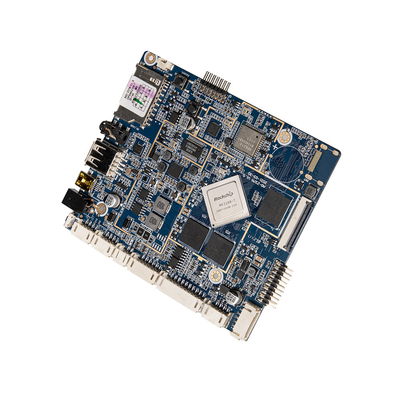

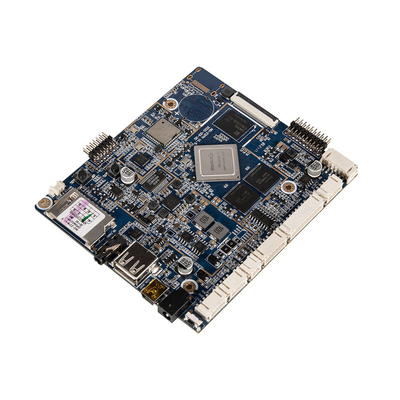

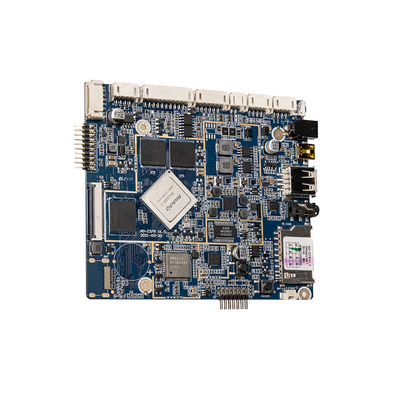

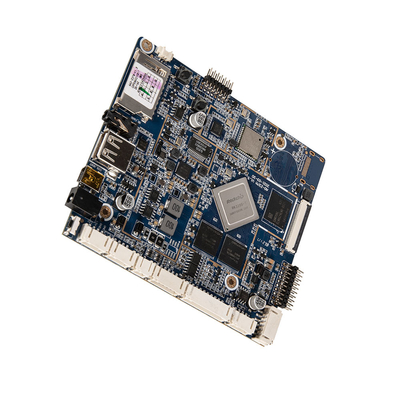

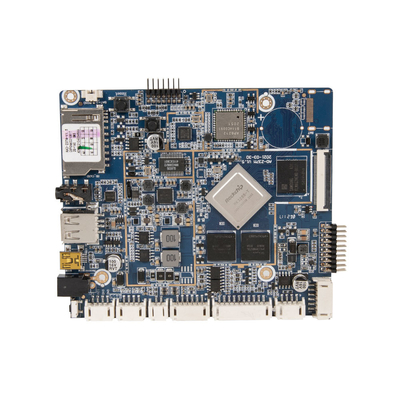

Model: AD-Z37M
RK3288 Board is a powerful android 10 mainboard, with Rockchip RK3288 CPU and Mali-T764 GPU, 2GB/4GB RAM and WiFi 802.11 B/g/n (2.4G/5G Wifi Optional). It is a complete PCBA board and android 10 motherboard, perfect for your electronics projects. With RK3288 Board, you can easily build your own system with various functions, such as media player, digital signage and more.
RK3288 Board is a reliable and cost-effective solution for your system build, with advanced performance, features and technologies. It supports 1080P full HD video playback, low power consumption, low heat generation and more. With RK3288 Board, you can easily create a high-end, reliable and cost-effective system.
RK3288 Board is an ideal choice for your system build. It provides reliable performance and powerful features. With the latest version of Android OS, high-performance processor and powerful GPU, RK3288 Board allows you to build a reliable and cost-effective system with great performance. RK3288 Board is the perfect choice for your system build.
The intelligent industrial all-in-one board adopts the Rockchip RK3288 quad-core chip solution and supports Android 8.0 and above systems. Powerful computing power. Support H.265 4K video playback. Rich interface, enhanced power management circuit. It is suitable for intelligent remote network control: equipment such as industrial, medical, large advertising machine, educational video terminal and so on.
| Property | Details |
|---|---|
| OS | Android 7-10 Version |
| CPU | Rockchip RK3288 |
| Card Reader | TF Card Reader |
| GPU | Mali-T764 |
| Network | WiFi 802.11 B/g/n (2.4G/5G Wifi Optional) |
| Audio | 3.5mm Audio Jack |
| Display | LVDS/EDP/MIPI/HD Out Are Optional |
| Camera | Support USB Camera And MIPI Camera |
| RAM | 2GB/4GB |
| Power Supply | DC 12V/2A |
| CPU | Rockchip RK3288 Quad-core Cortex-A17 Quad-core GPU Mali-T764 |
| Main frequency | 1.8GHz |
| RAM | LPDDR3 2G/4G Optional |
| Built-in storage capacity | EMMC 8GB/16G/32G/64G Optional |
| Display interface | MIPI Screen interface, Max resolution 1920*1080 |
| EDP screen interface | |
| Touch Panel |
Provide I2C interface (can support multi-point resistive touch, multi-point capacitive touch). Support USB multi-point infrared touch, multi-point acoustic wave touch, multi-point optical touch. |
| The internet | With RJ45 interface, support 10/100 Ethernet. |
| Equipped with Wifi&BT module, supporting Wi-Fi 802.11b/g/n protocol. Support BT4.0 |
| Image rotation | Support 0 degree, 90 degree, 180 degree, 270 degree manual/auto rotation, support gravity sensor function |
| Real Time Clock | Built-in (optional external) real-time clock power supply battery |
| Interface device | Support MIPI interface camera, up to 500W pixels |
| 3 USB HOST, 1 USB OTG (support usb camera@500W usb printer, U disk, mouse, keyboard, standard usb peripherals) | |
| 3 groups of serial ports. Support external serial port device modules (3G module, NFC module, printer, card reader, etc.) | |
| SD card, maximum support 32GB | |
| Class D power amplifier: 3W*2 8 ohms, support microphone | |
| HDMI 2.0 Output | |
| Audio | MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP format |
| Video | Support H.264, MPEG2, VP6, VP8, MVC and other video formats 2160P@24FPS decoding. YouTube and other online videos, up to 4K, HTML5 video playback, Flash 10.1 playback |
| Picture | Support JPG, BMP, PNG and other image format browsing and support rotation/slide show/picture zoom function |
| Power Adapter | Input: AC100-240V.50-60HZ, output: DC12V 3A |
The RK3288 Board of Sunchip and ADW is a perfect combination of industrial control board, industrial circuit board and industrial motherboard. With model numbers like AD-B02P, AD-Z37, AD-Z37M, AD-Z33, AD-Z33M, and certifications like CE, ROHS, FCC, ISO9001, it is the ideal choice for those who need a reliable and powerful embedded system solution. The minimum order quantity is 2pcs, and the price is negotiable. The package is 60pcs/Carton, and the delivery time is 1-7 days for samples and 15-30 days for mass production. The payment terms are 100% T/T for samples, and negotiable for mass production. The supply ability is 10,000pcs/Month. It also supports USB camera and MIPI camera, LVDS/EDP/MIPI/HD Out are optional, and 3.5mm audio jack. It is powered by DC 12V/2A. Therefore, it is the perfect choice for android motherboards, industrial control board, industrial circuit board and industrial motherboard.
Brand Name: Sunchip, ADW
Model Number: AD-B02P, AD-Z37, AD-Z37M, AD-Z33, AD-Z33M
Place of Origin: CHINA
Certification: CE, ROHS, FCC, ISO9001
Minimum Order Quantity: 2pcs
Price: Negotiated
Packaging Details: 60pcs/Carton
Delivery Time: Samples sent out 1-7 days, MP lead time 15-30 days
Payment Terms: 100% T/T for samples, Negoticated for MP
Supply Ability: 10,000pcs/Month
Sunchip ADW is specialized in providing customized service for PCBA board, android mainboard and Custom PCB Board. We offer RK3288 Board with the best service and quality. We have years of experience in this field. Our products are certified by CE, ROHS, FCC and ISO9001. The minimum order quantity is 2pcs. The price is negotiable. The packaging details is 60pcs/Carton. The delivery time is samples sent out 1-7 days, MP lead time 15-30 days. The payment terms is 100% T/T for samples, Negoticated for MP. The supply ability is 10,000pcs/Month.
RK3288 Board Packaging and Shipping
The RK3288 Board is packaged and shipped in sturdy cardboard boxes. The boxes are designed to protect the board from impact, moisture, and other environmental hazards. Inside the box, the board is securely wrapped in bubble wrap to provide additional protection. The board is also cushioned with foam padding to ensure that it will not be damaged during shipping. The box also includes instructions for use, safety warnings, and other necessary information.
The boxes are then sealed and labeled with the FedEx or UPS shipping label to ensure that they are delivered to their destination safely and securely. Upon receipt of the board, it should be inspected for any damages that may have occurred during shipping.
Q1: How did I trust your company?
A: SUNCHIP a software and hardware solution provider who has 12-years old from Shenzhen, China. We have a good reputation in this industrial area when you check it with almost all of Shenzhen industrial suppliers.
Q2: How long will you ship out the goods after I place the order on you?
A: If in-stock, usually, it’ll take 1-3 days to prepare and ship out. Before shipping, we should do aging testing and normal function testing, QC inspection, then, ship out. If out of stock and need to re-produce the goods, it will take different lead time.
For android board, android media player box, android LCD digital signage machine, will take about 15-30 days, depending the product quantities and types.
SUNCHIP mainly manufactures:
1, Android industrial Embedded ARM board: RK3588, RK3566, RK3568, RK3288, RK3399,
RK3328, RKPX30, RK3188, RK3128 etc.
2, 【4K】Android player box for digital signage advertising: RK3399, RK3288, RK3328 & RK3568.
3, 【8K】Android Player Box for Industrial-Control Application: RK3588.
4, Open frame LCD display signage: 8inch, 10.1inch, 13.3inch, 15.6inch, 21.5inch etc.
5, SKD Kit: Android board + LCD panel with touch or not:
7inch, 8inch, 10.1inch, 13.3inch, 15.6inch.
6, Other types of Wall Mounted / Floor Standing / Desktop LCD digital signage.
7, Embedded touch desk: such as 32inch.
8, Face recognition temperature detection terminal machine: such as 8inch.
[You can also tell us your detailed requirements, so that we advise you a matched solution]
