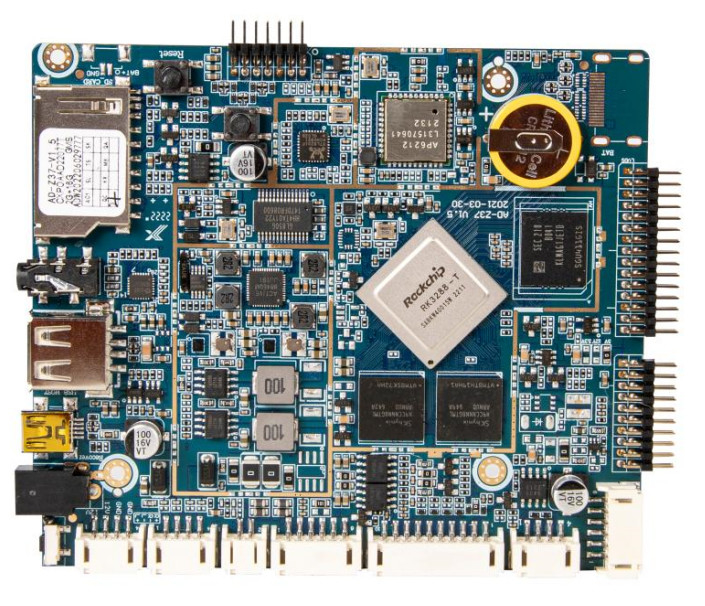

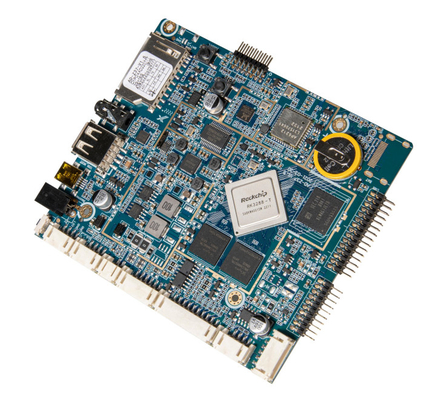

Efficient Android Mainboards RK3288 16GB/32GB EMMC ROM Support LVDS EDP Display

Efficient Android Mainboards RK3288 16GB/32GB EMMC ROM Support LVDS EDP Display
Efficient Android Mainboards RK3288 16GB/32GB EMMC ROM Support LVDS EDP Display
Efficient Android Mainboards RK3288 16GB/32GB EMMC ROM Support LVDS EDP Display Efficient Android Mainboards RK3288 16GB/32GB EMMC ROM Support LVDS EDP Display Efficient Android Mainboards RK3288 16GB/32GB EMMC ROM Support LVDS EDP Display Efficient Android Mainboards RK3288 16GB/32GB EMMC ROM Support LVDS EDP Display Efficient Android Mainboards RK3288 16GB/32GB EMMC ROM Support LVDS EDP Display

Large Image :  Efficient Android Mainboards RK3288 16GB/32GB EMMC ROM Support LVDS EDP Display

Product Details:
Place of Origin: CHINA
Brand Name: Sunchip, ADW
Certification: CE, ROHS, FCC, ISO9001
Model Number: AD-Z37
Payment & Shipping Terms:
Minimum Order Quantity: 2pcs
Price: Negotiated
Packaging Details: 60pcs/Carton
Delivery Time: Samples sent out 1-7 days, MP lead time 15-30 days
Payment Terms: T/T, Western Union, PayPal
Supply Ability: 10,000pcs/Month

Efficient Android Mainboards RK3288 16GB/32GB EMMC ROM Support LVDS EDP Display

Description
CPU: RK3288 Quad-core Cortex-A17@1.8G GPU Mali T764 OS: Android 7-10 Version
ROM: 16GB/32GB EMMC Card Reader: TF Card Reader
Network: WiFi 802.11 B/g/n (2.4G/5G Wifi Optional) Bluetooth: 5.2
Audio: 3.5mm Audio Jack Camera: Support USB Camera And MIPI Camera
Power Supply: DC 12V/2A Display: Lvds, Edp, HD Output
Highlight:

Efficient Android Mainboards

,

LVDS EDP Display Android Mainboards

,

Efficient RK3288 RK3288 Board

Efficient Android Mainboards RK3288 with High-capacity 16GB/32GB EMMC ROM and TF Card Reader support lvds edp display



Model: AD-Z37



Product Description:

RK3288 Board is an industrial control board, which is cost-effective and compatible with android motherboards. It is equipped with GPU Mali-T764, TF Card Reader, USB Camera and MIPI Camera, 16GB/32GB EMMC and Bluetooth 5.2, making it an ideal industrial control board.

The RK3288 Board is equipped with GPU Mali-T764, which can easily decode and render 4K videos, making the image more delicate and smooth. In addition, it also supports TF Card Reader, USB Camera and MIPI Camera, which can provide more image input options. Besides, it has 16GB/32GB EMMC, which can store more data, and Bluetooth 5.2, which can provide more stable wireless connections.

In conclusion, RK3288 Board is a cost-effective and reliable industrial control board which is equipped with GPU Mali-T764, TF Card Reader, USB Camera and MIPI Camera, 16GB/32GB EMMC and Bluetooth 5.2, making it an ideal industrial control board.



The intelligent industrial all-in-one board adopts the Rockchip RK3288 quad-core chip solution and supports Android 8.0 and above systems. Powerful computing power. Support H.265 4K video playback. Rich interface, enhanced power management circuit. It is suitable for intelligent remote network control: equipment such as industrial, medical, large advertising machine, educational video terminal and so on.



Rockchip RK3288 smart android Pcba Board



Features:

  • Product Name: RK3288 Board
  • OS: Android 7-10 Version
  • Power Supply: DC 12V/2A
  • Display: LVDS/EDP/MIPI/HD Out Are Optional
  • Network: WiFi 802.11 B/g/n (2.4G/5G Wifi Optional)
  • GPU: Mali-T764
  • Keywords: android motherboards, Industrial Circuit Board, Industrial Control Board



Technical Parameters:

Features Details
OS Android 7-10 Version
Display LVDS/EDP/MIPI/HD Out Are Optional
GPU Mali-T764
Power Supply DC 12V/2A
Card Reader TF Card Reader
Audio 3.5mm Audio Jack
Camera Support USB Camera And MIPI Camera
Network WiFi 802.11 B/g/n (2.4G/5G Wifi Optional)
Bluetooth 5.2
ROM 16GB/32GB EMMC



CPU Rockchip RK3288 Quad-core Cortex-A17 Quad-core GPU Mali-T764
Main frequency 1.8GHz
RAM LPDDR3 2G/4G Optional
Built-in storage capacity EMMC 8GB/16G/32G/64G Optional

Display interface



LVDS interface (single-channel, 6-bit dual-channel, 8-bit dual-channel). Support maximum resolution 1920x1080, support 7"-84" display
EDP interface
Screen voltage Support 3.3V/5V/12V optional
Touch screen

Provide I2C interface (can support multi-point resistive touch, multi-point capacitive touch).

Support USB multi-point infrared touch, multi-point acoustic wave touch, multi-point optical touch.

The internet



With RJ45 interface, support 10/100 Ethernet.
Equipped with Wifi&BT module, supporting Wi-Fi 802.11b/g/n protocol. Support BT4.0
Image rotation Support 0-degree, 90-degree, 180-degree, 270-degree manual/auto rotation, support gravity sensor function
Real Time Clock Built-in (optional external) real-time clock power supply battery





Interface device







Support MIPI interface camera, up to 500W pixels
3 USB HOST, 1 USB OTG (support usb camera@500W usb printer, U disk, mouse, keyboard, standard usb peripherals)
3 groups of serial ports. Support external serial port device modules (3G module, NFC module, printer, card reader, etc.)
SD card, maximum support 32GB
Class D power amplifier: 3W*2 8 ohms, support microphone
HDMI 2.0 output
Audio MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, 3GPP format
Video Support H.264, MPEG2, VP6, VP8, MVC and other video formats 2160P@24FPS decoding. YouTube and other online videos, up to 4K, HTML5 video playback, Flash 10.1 playback
Picture Support JPG, BMP, PNG and other image format browsing and support rotation/slide show/picture zoom function
Power Adapter Input: AC100-240V.50-60HZ, output: DC12V 3A

Efficient Android Mainboards RK3288 16GB/32GB EMMC ROM Support LVDS EDP Display 0Efficient Android Mainboards RK3288 16GB/32GB EMMC ROM Support LVDS EDP Display 1

Applications:

Rockchip RK3288 Board by Sunchip and ADW

Rockchip RK3288 Board is a mainboard produced by Sunchip and ADW. It is designed to be used in a variety of applications, such as embedded systems, robotics, automotive, medical and industrial automation. The board is certified for CE, ROHS, FCC, and ISO9001 standards. It supports USB camera and MIPI camera, TF card reader, LVDS/EDP/MIPI/HD out, and Bluetooth 5.2. The minimum order quantity is 2pcs, with a lead time of 15-30 days. The price is negotiable. It comes in a packaging of 60pcs/Carton. It has a maximum supply ability of 10,000pcs/Month.

The Rockchip RK3288 Board is a powerful and reliable mainboard that provides excellent computing power. It is suitable for a wide range of applications and offers great scalability, making it an ideal choice for system integrators and OEMs. Its features include high-performance CPU, robust memory and storage, and superior connectivity. With the Rockchip RK3288 Board, you can easily integrate powerful and reliable computing power into your system.



Efficient Android Mainboards RK3288 16GB/32GB EMMC ROM Support LVDS EDP Display 2

Customization:

RK3288 Board

Brand Name: Sunchip, ADW

Model Number: AD-B02P, AD-Z37, AD-Z37M, AD-Z33, AD-Z33M

Place of Origin: CHINA

Certification: CE, ROHS, FCC, ISO9001

Minimum Order Quantity: 2pcs

Price: Negotiated

Packaging Details: 60pcs/Carton

Delivery Time: Samples sent out 1-7 days, MP lead time 15-30 days

Payment Terms: 100% T/T for samples, Negoticated for MP

Supply Ability: 10,000pcs/Month

ROM: 16GB/32GB EMMC

Display: LVDS/EDP/MIPI/HD Out Are Optional

Network: WiFi 802.11 B/g/n (2.4G/5G Wifi Optional)

RAM: 2GB/4GB

Power Supply: DC 12V/2A

Special Features: Industrial Motherboard, Elevator PCB Board, Android 10 Mainboard



How should I place an order for Pcba Board?

You can easily contact us through the website. Through communication, you can reach an order transaction on the basis of a detailed understanding of customer requirements, Pcba Board product parameters, customization, delivery date and other requirements;


Support and Services:

RK3288 Board Technical Support and Service

At Rockchip, we are committed to providing our customers with the best technical support and service in the industry. Our team of experienced engineers and technicians are here to help you get the most out of your RK3288 board.

Technical Support

Our team is on hand to answer any questions you may have about your RK3288 board. Whether it’s hardware or software related, we’ll do our best to help you get the most out of your device. We provide a variety of support options, including:

  • Live chat support with our experienced engineers
  • Email support for technical inquiries
  • Phone support for urgent matters
  • Online knowledge base and FAQs
Service

We offer a wide range of warranty and repair services for your RK3288 board. We offer a one-year warranty on all our products and can provide repair services in-house or through our nationwide network of service centers. We also provide a range of extended warranty plans for added peace of mind.



Packing and Shipping:

Efficient Android Mainboards RK3288 16GB/32GB EMMC ROM Support LVDS EDP Display 3



FAQ:

RK3288 Board FAQs
Q1: What is RK3288 Board?
A1: RK3288 Board is a powerful board developed by Sunchip and ADW. It is based on Rockchip RK3288 chipset, which can support 4K Video Decoding, 1080P HDMI output and multiple interfaces.
Q2: What is the model number of RK3288 Board?
A2: The model numbers of RK3288 Board are AD-B02P, AD-Z37, AD-Z37M, AD-Z33, AD-Z33M.
Q3: Where is RK3288 Board made?
A3: RK3288 Board is made in China.
Q4: What certifications does RK3288 Board have?
A4: RK3288 Board is certified with CE, ROHS, FCC, ISO9001.
Q5: What is the minimum order quantity for RK3288 Board?
A5: The minimum order quantity for RK3288 Board is 2pcs.

Efficient Android Mainboards RK3288 16GB/32GB EMMC ROM Support LVDS EDP Display 4
