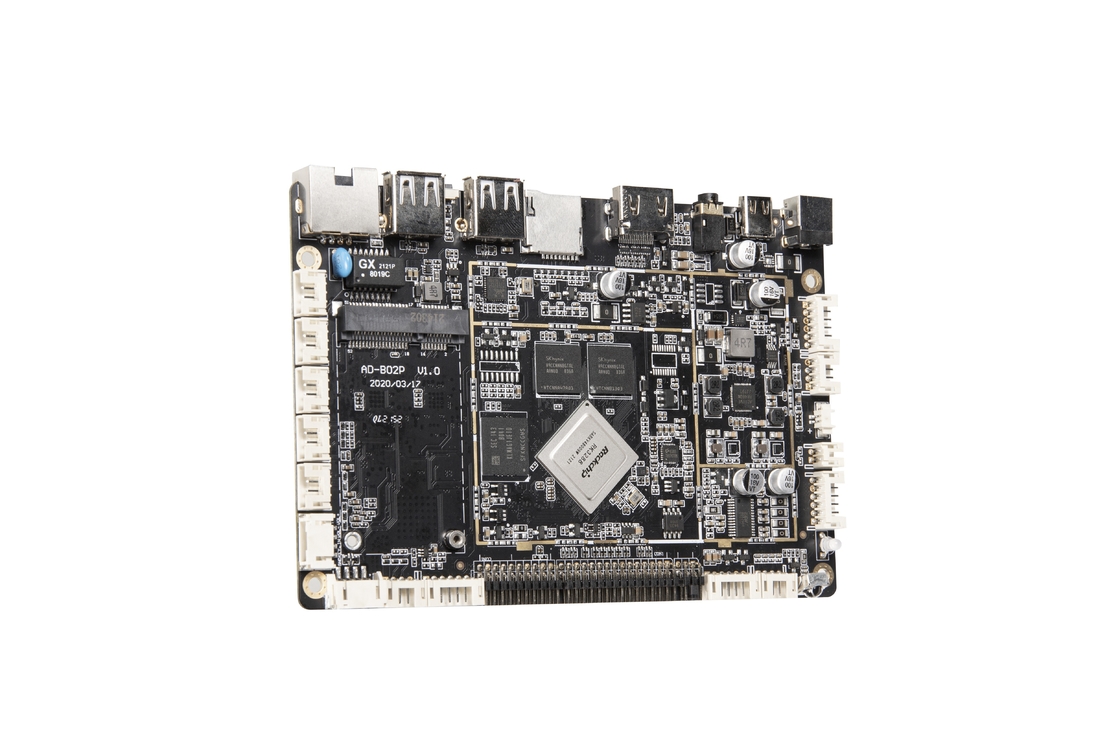

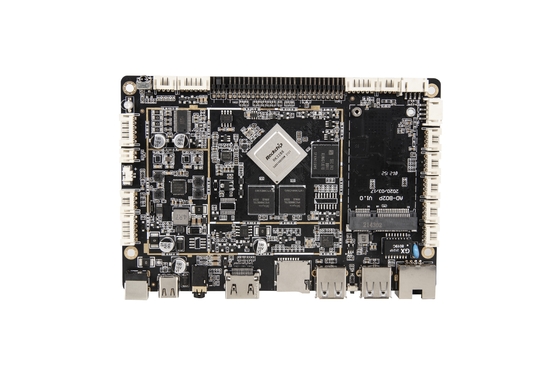

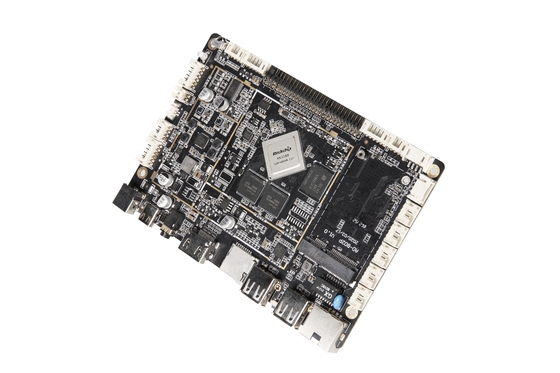

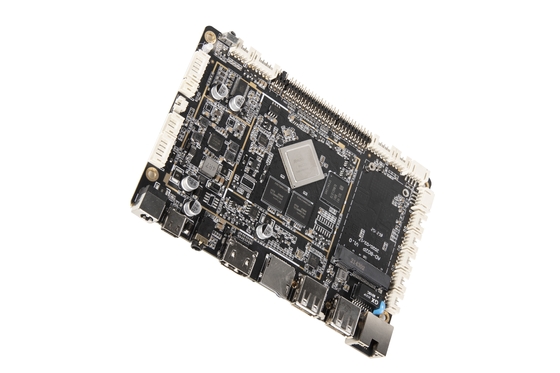

Rockchip 4K RK3288 Smart Android PCBA Board LVDS EDP for Display Signage

Certification
China Shenzhen Sunchip Technology Co., Ltd. certification
China Shenzhen Sunchip Technology Co., Ltd. certification
Customer Reviews
Awesome news! I know your team has worked hard, thanks for finish the project so quickly.

—— Brian Walker

I like your sample very much. Looking forward to growing our partnership

—— Jenny Westbrook

I'm Online Chat Now

Rockchip 4K RK3288 Smart Android PCBA Board LVDS EDP for Display Signage

Rockchip 4K RK3288 Smart Android PCBA Board LVDS EDP for Display Signage
Rockchip 4K RK3288 Smart Android PCBA Board LVDS EDP for Display Signage
Rockchip 4K RK3288 Smart Android PCBA Board LVDS EDP for Display Signage Rockchip 4K RK3288 Smart Android PCBA Board LVDS EDP for Display Signage Rockchip 4K RK3288 Smart Android PCBA Board LVDS EDP for Display Signage Rockchip 4K RK3288 Smart Android PCBA Board LVDS EDP for Display Signage Rockchip 4K RK3288 Smart Android PCBA Board LVDS EDP for Display Signage Rockchip 4K RK3288 Smart Android PCBA Board LVDS EDP for Display Signage

Large Image :  Rockchip 4K RK3288 Smart Android PCBA Board LVDS EDP for Display Signage

Product Details:
Place of Origin: CHINA
Brand Name: Sunchip, ADW
Certification: CE, ROHS, FCC, ISO9001
Model Number: AD-B02P
Payment & Shipping Terms:
Minimum Order Quantity: 2pcs
Price: Negotiated
Packaging Details: 60pcs/Carton
Delivery Time: Samples sent out 1-7 days, MP lead time 15-30 days
Payment Terms: T/T, Western Union, PayPal
Supply Ability: 10,000pcs/Month

Rockchip 4K RK3288 Smart Android PCBA Board LVDS EDP for Display Signage

Description
Display: LVDS/EDP/MIPI/HD Out Are Optional OS: Android 7-10 Version
Network: WiFi 802.11 B/g/n (2.4G/5G Wifi Optional) Bluetooth: 5.2
RAM: 2GB/4GB ROM: 16GB/32GB EMMC
Audio: 3.5mm Audio Jack Card Reader: TF Card Reader
High Light:

RK3288 PCBA Board

,

RK3288 Android PCBA

,

RK3288 Board For Display Signage

Rockchip 4K RK3288 smart android Pcba Board Android 7-10 lvds edp display signage Motherboard OED ODM customization



Model: AD-B02P





Product Description:

RK3288 Board is an industrial circuit board with custom PCB board design, mainly used in elevators. It is equipped with Rockchip RK3288 quad-core ARM Cortex-A17 processor, Mali-T764 GPU and 2GB/4GB RAM. It also features a TF Card Reader, and a DC 12V/2A power supply for reliable and stable performance. It is ideal for applications requiring high accuracy and reliability, such as elevators, automation, and industrial control.



RK3288 Android integrated board adopts Rockchip RK3288 quad-core chip solution and supports Android 5.1 and above systems. Support the decoding of mainstream audio and video formats and pictures. Support EDP@4K, dual 8-bit LVDS interface 1920*1080, can drive 7" to 82" display screen. With HDMI interface, it supports 4K video playback. Abundant interfaces make the products more versatile and are widely used in intelligent control fields such as advertising machines, all-in-one machines, security, and industrial control. Due to its hardware platform and Android intelligent features, it can be used as an intelligent terminal platform when human-computer interaction or network device interaction is required.

Features:

  • Product Name: RK3288 Board
  • Network: WiFi 802.11 B/g/n (2.4G/5G Wifi Optional)
  • RAM: 2GB/4GB
  • Bluetooth: 5.2
  • CPU: Rockchip RK3288
  • ROM: 16GB/32GB EMMC
  • Elevator PCB Board, Industrial Control Board, Custom PCB Board


Technical Parameters:

CPU Rockchip RK3288 Quad-core Cortex-A17 Quad-core GPU Mali-T764
Main frequency 1.8 GHz
Deposit LPDDR3 2G/4G Optional
Built-in storage capacity EMMC 8GB/16G/32G/64G etc. optional

Display interface



LVDS interface (single-channel, 6-bit dual-channel, 8-bit dual-channel). Support maximum resolution 1920x1080, support 7"-82" display
EDP interface Maximum resolution 4K
Screen voltage Support 3.3V/5V/12V optional
Touch screen Support I2C touch screen, USB multi-point infrared touch frame, resistance, capacitive touch screen.

The internet





With RJ45 interface, support 10/100M Ethernet.
Equipped with wifi&BT module, supporting Wi-Fi 802.11b/g/n protocol. Support BT4.0
With 4G module, support 4G network
Image rotation Support 0 degree, 90 degree, 180 degree, 270 degree manual/auto rotation, support gravity sensor function (optional)
Real Time Clock External real-time clock power supply battery





Interface device















Support MIPI camera
Support HDMI output
5 USB HOST (support usb camera@500W usb printer, U disk, mouse, keyboard and standard usb peripherals)
3 groups of serial ports (1 group of UART; 2 groups of standard UART or optional RS232). Support external serial devices (NFC module, printer, card reader, etc.)
3 IO detection ports
TF card
D class large built-in speaker, 5W*2 8R
Support microphone
Audio MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A,3GPP format
Video Support H.264, MPEG2, VP6, VP8, MVC and other video formats 2160P@24FPS decoding. YouTube and other online videos, up to 4K, HTML5 video playback, Flash 10.1 playback
Image Support JPG, BMP, PNG and other image format browsing and support rotation/slide show/picture zoom function
Power Adapter Input:AC100-240V.50-60HZ, Output: DC12V 3A

Rockchip 4K RK3288 Smart Android PCBA Board LVDS EDP for Display Signage 0Rockchip 4K RK3288 Smart Android PCBA Board LVDS EDP for Display Signage 1

Applications:

RK3288 Board, produced by Sunchip and ADW, is a powerful single board computer with ARM Cortex-A17 and ARM Mali-T764 GPU. It is an ideal solution for android motherboards, mainboards, Industrial Circuit Board and many other applications. RK3288 Board model numbers include AD-B02P, AD-Z37, AD-Z37M, AD-Z33, AD-Z33M, all of which have passed CE, ROHS, FCC and ISO9001 certifications.

The minimum order quantity of RK3288 Board is 2pcs, and the price is negotiated. The packaging details is 60pcs/Carton. The samples sent out time is 1-7 days, and the Mass Production (MP) lead time is 15-30 days. The payment terms for samples is 100% T/T, while it is negoticated for MP. The supply ability of RK3288 Board is 10,000pcs/Month.

RK3288 Board is equipped with 2GB/4GB RAM and 16GB/32GB EMMC ROM. The OS is Android 7-10 Version, with 3.5mm Audio Jack. It is widely used in various applications, and is a reliable and cost-efficient solution for industrial, commercial and home applications.



Rockchip 4K RK3288 Smart Android PCBA Board LVDS EDP for Display Signage 2Rockchip 4K RK3288 Smart Android PCBA Board LVDS EDP for Display Signage 3Rockchip 4K RK3288 Smart Android PCBA Board LVDS EDP for Display Signage 4

Customization:

Customize Services for RK3288 Board

Brand Name: Sunchip, ADW

Model Number: AD-B02P, AD-Z37, AD-Z37M, AD-Z33, AD-Z33M

Place of Origin: China

Certification: CE, ROHS, FCC, ISO9001

Minimum Order Quantity: 2pcs

Price: Negotiated

Packaging Details: 60pcs/Carton

Delivery Time: Samples sent out 1-7 days, MP lead time 15-30 days

Payment Terms: 100% T/T for samples, Negoticated for MP

Supply Ability: 10,000pcs/Month

OS: Android 7-10 Version

Power Supply: DC 12V/2A

Card Reader: TF Card Reader

Network: WiFi 802.11 B/g/n (2.4G/5G Wifi Optional)

Display: LVDS/EDP/MIPI/HD Out Are Optional

RK3288 Board: Android 10 Mainboard for Industrial Control

RK3288 Board is a customized product of Sunchip & ADW, with model numbers AD-B02P, AD-Z37, AD-Z37M, AD-Z33, AD-Z33M. It is certified by CE, ROHS, FCC, ISO9001, and the minimum order quantity is 2pcs. The pricing is negotiable. It is packaged with 60pcs/Carton, and the delivery time is 1-7 days for samples, and 15-30 days for MP. The payment terms are 100% T/T for samples, and Negoticated for MP. The supply ability is 10,000pcs/Month.

RK3288 Board is equipped with Android 7-10 Version, DC 12V/2A power supply, TF Card Reader, WiFi 802.11 B/g/n (2.4G/5G Wifi Optional), LVDS/EDP/MIPI/HD Out Are Optional. It is a perfect choice for industrial control, such as automation, surveillance, and other industrial applications.



Support and Services:

RK3288 Board Technical Support and Service

We provide technical support and service for RK3288 Board. Our technical support team is available to answer any technical questions you may have about the RK3288 Board, such as installation, setup, troubleshooting, hardware specifications, and more.

If you have a technical question about the RK3288 Board, please contact us via email or our online support forum.

If you need assistance with installation or setup, our technical support team can provide you with step-by-step instructions.

We also offer a range of services for RK3288 Board, such as hardware repairs, software updates, and more. Please contact us for more information.



Rockchip 4K RK3288 Smart Android PCBA Board LVDS EDP for Display Signage 5

Packing and Shipping:

RK3288 Board Packaging and Shipping

The RK3288 board is packaged and shipped in a sturdy cardboard box. The box is clearly labeled with the product name, a description of the product, and a list of contents. Inside the box, the board is carefully protected by bubble wrap, foam, and a static-proof bag. The board is also accompanied by a user manual, a power supply, and a USB cable.

Rockchip 4K RK3288 Smart Android PCBA Board LVDS EDP for Display Signage 6

FAQ:

.

Q1: How did I trust your company?
A: SUNCHIP a software and hardware solution provider who has 12-years old from Shenzhen, China. We have a good reputation in this industrial area when you check it with almost all of Shenzhen industrial suppliers.
Q2: How long will you ship out the goods after I place the order on you?
A: If in-stock, usually, it’ll take 1-3 days to prepare and ship out. Before shipping, we should do aging testing and normal function testing, QC inspection, then, ship out. If out of stock and need to re-produce the goods, it will take different lead time.

For android board, android media player box, android LCD digital signage machine, will take about 15-30 days, depending the product quantities and types.
Q3: After i get the products what if my products broken, what kind of service you support?
A: First contact us, tell us about the problem, our engineer will help to handle; secondly, you can send back the products to us, we will fix it. we support 12 months warranty, any problem catches me online, we can give you good solution way. we want to do long term business with you not just for 1 day 1 time.
Q4. Shipping solution?

We support Express, such as, DHL/FedEx/UPS/TNT etc., also support sea shipping, air shipping and railway shipping, depends on the customer’s request.
