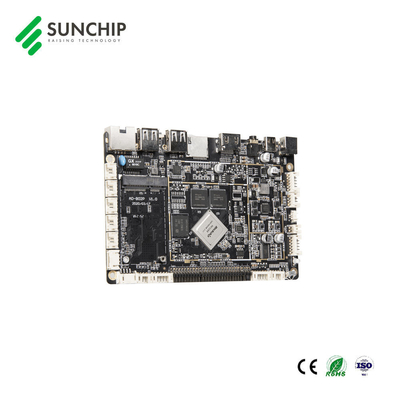

Reliable Android Mainboard RK3288 Board LVDS EDP For Automotive Digital Signage

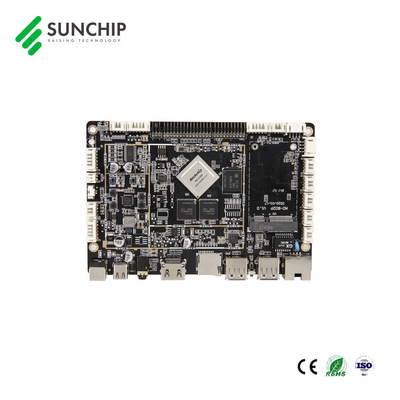

Reliable Android Mainboard RK3288 Board LVDS EDP For Automotive Digital Signage

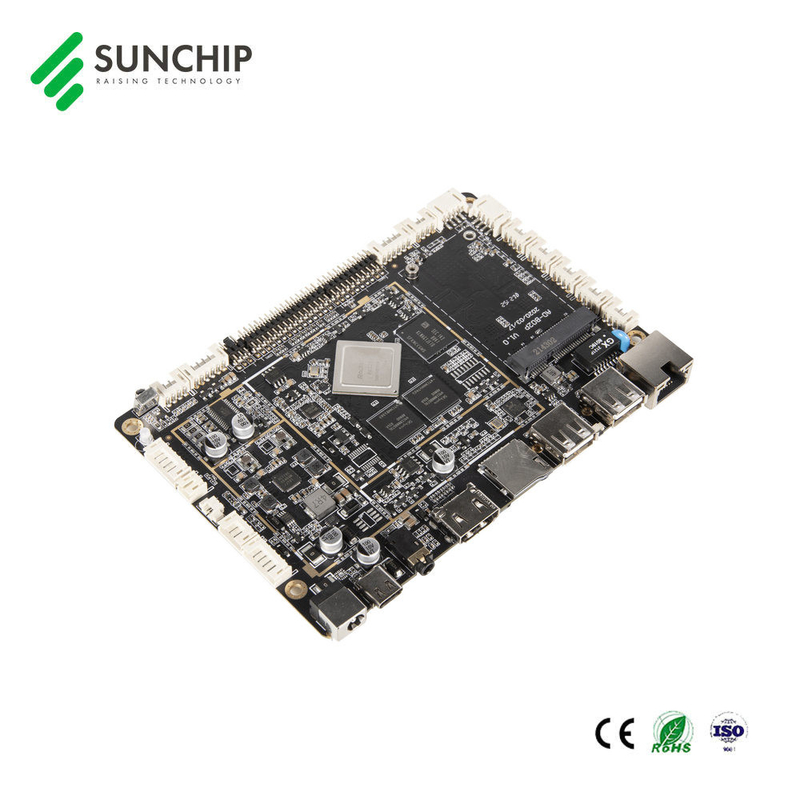

Reliable Android Mainboard RK3288 Board LVDS EDP For Automotive Digital Signage

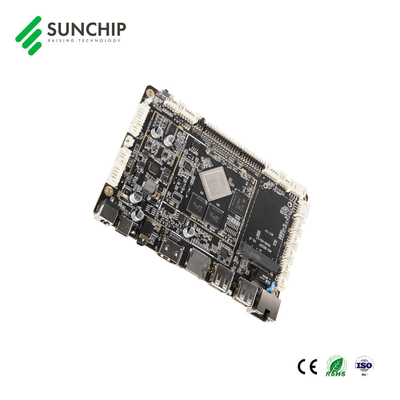

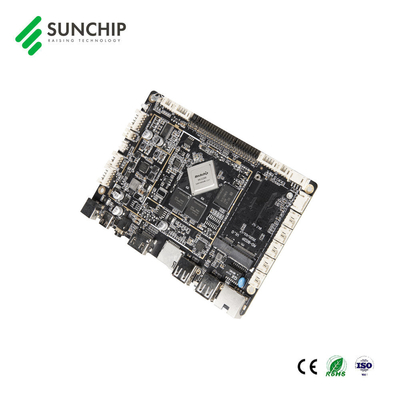

Reliable Android Mainboard RK3288 Board LVDS EDP For Automotive Digital Signage Reliable Android Mainboard RK3288 Board LVDS EDP For Automotive Digital Signage Reliable Android Mainboard RK3288 Board LVDS EDP For Automotive Digital Signage Reliable Android Mainboard RK3288 Board LVDS EDP For Automotive Digital Signage Reliable Android Mainboard RK3288 Board LVDS EDP For Automotive Digital Signage Reliable Android Mainboard RK3288 Board LVDS EDP For Automotive Digital Signage Reliable Android Mainboard RK3288 Board LVDS EDP For Automotive Digital Signage

Large Image :  Reliable Android Mainboard RK3288 Board LVDS EDP For Automotive Digital Signage

Product Details:
Place of Origin: CHINA
Brand Name: Sunchip, ADW
Certification: CE, ROHS, FCC, ISO9001
Model Number: AD-B02P
Payment & Shipping Terms:
Minimum Order Quantity: 2pcs
Price: Negotiated
Packaging Details: 60pcs/Carton
Delivery Time: Samples sent out 1-7 days, MP lead time 15-30 days
Payment Terms: T/T, Western Union, PayPal
Supply Ability: 10,000pcs/Month

Reliable Android Mainboard RK3288 Board LVDS EDP For Automotive Digital Signage

Description
Product Name: Android Embedded ARM Board CPU: Rockchip RK3288
OS: Android 7-10 Version Network: WiFi 802.11 B/g/n (2.4G/5G Wifi Optional)
RAM: 2GB/4GB ROM: 16GB/32GB(optional)
Bluetooth: 5.2 Card Reader: TF Card Reader
Audio: 3.5mm Audio Jack Power Supply: DC 12V/2A
High Light:

Reliable Android Mainboard

,

Reliable RK3288 board

,

Automotive Digital Signage RK3288 Board



Reliable Android Mainboard RK3288 LVDS EDP Rich Connectivity High-Speed Video Decoding for Automotive / digital signage /  digital menu etc.



Model: AD-B02P

Product Description:

RK3288 Board is an android 7-10 mainboard/motherboard powered by a powerful Quad-core processor that offers great performance and stability. It comes with a TF Card Reader, Mali-T764 GPU, LVDS/EDP/MIPI/HD Out display connectors, a 3.5mm audio jack, and support for both USB cameras and MIPI cameras. This Display PCB Board is ideal for multimedia applications and digital signage, and is perfect for a variety of projects. It is designed to be low-cost, reliable and efficient, and is easy to use, making it perfect for developers and hobbyists. With its long-term availability and real-time support, the RK3288 Board is the perfect choice for anyone looking for a reliable and powerful android mainboard/motherboard.



RK3288 Android integrated board adopts Rockchip RK3288 quad-core chip solution and supports Android 5.1 and above systems. Support the decoding of mainstream audio and video formats and pictures. Support EDP@4K, dual 8-bit LVDS interface 1920*1080, can drive 7" to 82" display screen. With HDMI interface, it supports 4K video playback. Abundant interfaces make the products more versatile and are widely used in intelligent control fields such as advertising machines, all-in-one machines, security, and industrial control. Due to its hardware platform and Android intelligent features, it can be used as an intelligent terminal platform when human-computer interaction or network device interaction is required.

Features:

  • Product Name: RK3288 Board
  • GPU: Mali-T764
  • Camera: Support USB Camera And MIPI Camera
  • Display: LVDS/EDP/MIPI/HD Out Are Optional
  • Card Reader: TF Card Reader
  • Audio: 3.5mm Audio Jack
  • Custom PCB Board: supported ODM


Technical Parameters:

Parameter Value
Card Reader TF Card Reader
Bluetooth 5.2
RAM 2GB/4GB
GPU Mali-T764
Audio 3.5mm Audio Jack
Network WiFi 802.11 B/g/n (2.4G/5G Wifi Optional)
Power Supply DC 12V/2A
OS Android 7-10 Version
ROM 16GB/32GB EMMC
CPU Rockchip RK3288



CPU Rockchip RK3288 Quad-core Cortex-A17 Quad-core GPU Mali-T764
Main frequency 1.8 GHz
Deposit LPDDR3 2G/4G Optional
Built-in storage capacity EMMC 8GB/16G/32G/64G etc. optional

Display interface



LVDS interface (single-channel, 6-bit dual-channel, 8-bit dual-channel). Support maximum resolution 1920x1080, support 7"-82" display
EDP interface Maximum resolution 4K
Screen voltage Support 3.3V/5V/12V optional
Touch screen Support I2C touch screen, USB multi-point infrared touch frame, resistance, capacitive touch screen.

The internet





With RJ45 interface, support 10/100M Ethernet.
Equipped with wifi&BT module, supporting Wi-Fi 802.11b/g/n protocol. Support BT4.0
With 4G module, support 4G network
Image rotation Support 0 degree, 90 degree, 180 degree, 270 degree manual/auto rotation, support gravity sensor function (optional)
Real Time Clock External real-time clock power supply battery





Interface device















Support MIPI camera
Support HDMI output
5 USB HOST (support usb camera@500W usb printer, U disk, mouse, keyboard and standard usb peripherals)
3 groups of serial ports (1 group of UART; 2 groups of standard UART or optional RS232). Support external serial devices (NFC module, printer, card reader, etc.)
3 IO detection ports
TF card
D class large built-in speaker, 5W*2 8R
Support microphone
Audio MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A,3GPP format
Video Support H.264, MPEG2, VP6, VP8, MVC and other video formats 2160P@24FPS decoding. YouTube and other online videos, up to 4K, HTML5 video playback, Flash 10.1 playback
Image Support JPG, BMP, PNG and other image format browsing and support rotation/slide show/picture zoom function
Power Adapter Input:AC100-240V.50-60HZ, Output: DC12V 3A

Reliable Android Mainboard RK3288 Board LVDS EDP For Automotive Digital Signage 0
Reliable Android Mainboard RK3288 Board LVDS EDP For Automotive Digital Signage 1Reliable Android Mainboard RK3288 Board LVDS EDP For Automotive Digital Signage 2

Applications:

The RK3288 Board by Sunchip and ADW is an Industrial Motherboard that offers amazing performance and reliability for various applications. This mainboard is powered by a Rockchip RK3288 CPU with 2GB/4GB RAM and a TF card reader. It also has Bluetooth 5.2 and a DC 12V/2A power supply. The mainboard meets all the necessary CE, ROHS, FCC, and ISO9001 certifications and is available in AD-B02P, AD-Z37, AD-Z37M, AD-Z33, and AD-Z33M models. The minimum order quantity is 2pcs and the pricing is Negotiated. The Supply Ability is 10,000pcs/Month and the Delivery Time for samples is 1-7 days and for MP is 15-30 days. The payment terms are 100% T/T for samples and Negotiated for MP. This mainboard also comes in a 60pcs/Carton packaging.

The RK3288 Board is ideal for many applications due to its superior performance and reliability. It is suitable for Industrial Automation, Vehicle Navigation System, Digital Signage, Advertising Machine, POS Machine, Kiosk, Medical Equipment, Smart Home, Smart Home, and many other usage scenarios. Its small size and low power consumption make it the perfect choice for those looking for an efficient and reliable mainboard.



Reliable Android Mainboard RK3288 Board LVDS EDP For Automotive Digital Signage 3

Reliable Android Mainboard RK3288 Board LVDS EDP For Automotive Digital Signage 4

Customization:

RK3288 Board Customization Services

Brand Name: Sunchip, ADW
Model Number: AD-B02P, AD-Z37, AD-Z37M, AD-Z33, AD-Z33M
Place of Origin: China
Certification: CE, ROHS, FCC, ISO9001
Minimum Order Quantity: 2pcs
Price: Negotiated
Packaging Details: 60pcs/Carton
Delivery Time: Samples sent out 1-7 days, MP lead time 15-30 days
Payment Terms: 100% T/T for samples, Negoticated for MP
Supply Ability: 10,000pcs/Month

Product Features

Power Supply: DC 12V/2A
Network: WiFi 802.11 B/g/n (2.4G/5G Wifi Optional)
Display: LVDS/EDP/MIPI/HD Out Are Optional
Camera: Support USB Camera And MIPI Camera
CPU: Rockchip RK3288

Product Highlights

PCBA board, Industrial Circuit Board, android mainboard



Support and Services:

RK3288 Board technical support and services include:

  • 24/7 online customer support and service
  • Live telephone support
  • Software and hardware installation and troubleshooting assistance
  • Product documentation and instruction
  • Access to our technical support knowledge base
  • Firmware updates
  • Warranty information
Reliable Android Mainboard RK3288 Board LVDS EDP For Automotive Digital Signage 5

Packing and Shipping:

Reliable Android Mainboard RK3288 Board LVDS EDP For Automotive Digital Signage 6


FAQ:

Q1: What is the brand and model of RK3288 Board?
The brand is Sunchip and the models are AD-B02P, AD-Z37, AD-Z37M, AD-Z33, AD-Z33M.
Q2: Where is the RK3288 Board manufactured?
The RK3288 Board is manufactured in China.
Q3: What is the minimum order quantity for RK3288 Board?
The minimum order quantity for RK3288 Board is 2pcs.
Q4: What is the packaging and delivery time for RK3288 Board?
The packaging for RK3288 Board is 60pcs/Carton, and the sample delivery time is 1-7 days, and mass production lead time is 15-30 days.
