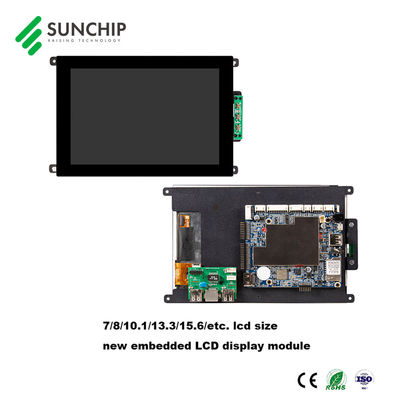

Kiosk Industrial Control Board With CPU RK3566 Arm 4K HD MIPI EDP LVDS Android Board

Kiosk Industrial Control Board With CPU RK3566 Arm 4K HD MIPI EDP LVDS Android Board
Kiosk Industrial Control Board With CPU RK3566 Arm 4K HD MIPI EDP LVDS Android Board
Kiosk Industrial Control Board With CPU RK3566 Arm 4K HD MIPI EDP LVDS Android Board Kiosk Industrial Control Board With CPU RK3566 Arm 4K HD MIPI EDP LVDS Android Board Kiosk Industrial Control Board With CPU RK3566 Arm 4K HD MIPI EDP LVDS Android Board Kiosk Industrial Control Board With CPU RK3566 Arm 4K HD MIPI EDP LVDS Android Board Kiosk Industrial Control Board With CPU RK3566 Arm 4K HD MIPI EDP LVDS Android Board Kiosk Industrial Control Board With CPU RK3566 Arm 4K HD MIPI EDP LVDS Android Board Kiosk Industrial Control Board With CPU RK3566 Arm 4K HD MIPI EDP LVDS Android Board

Large Image :  Kiosk Industrial Control Board With CPU RK3566 Arm 4K HD MIPI EDP LVDS Android Board

Product Details:
Place of Origin: China
Brand Name: Sunchip
Certification: ISO 90001, ISO 27001
Model Number: AD-C36
Payment & Shipping Terms:
Minimum Order Quantity: 2pcs
Price: Negotiation
Packaging Details: 60pcs/box
Delivery Time: 2-5days
Payment Terms: TT in advance
Supply Ability: 600000/Month

Kiosk Industrial Control Board With CPU RK3566 Arm 4K HD MIPI EDP LVDS Android Board

Description
Temperature: -10℃~50℃ BT: 5.2
OS: Android 11 Power Supply: DC 12V/2A
Network: Wi-Fi 802.11 B/g/n CPU: RK3566 Quad-core A55 Architecture
RAM: 2GB Display: MIPI/EDP/LVDS/HD 2.0
Rom: 16GB/32GB/64GB Optional Serial Port: UART X3
USB: USB3.0 X2, USB 2.0 X3 Camera: MIPI / USB Type Optional
Touch Support: IIC / USB Supported
Highlight:

Kiosk Android Board

,

Industrial Control Board With CPU RK3566

,

CPU RK3566 Android Board

Product Description:

AD-C36 Intelligent industrial all-in-one large board, using Rockchip RK3566 quad-core chip solution. Support Android 11 system.

Enhanced power management circuit. Support common external devices. Rich interface and stable performance. Suitable for intelligent remote network control: class industrial, medical, large advertising machines, educational video terminals and other equipment.

Embedded ARM Board AD-C36  - USB 3.0, Quad-core A55 Architecture, Audio Jack, MIPI/EDP/LVDS/HD 2.0, -10℃~50℃

Embedded ARM Board is a highly versatile and powerful device designed for embedded applications. It is equipped with two USB 3.0 ports, three USB 2.0 ports, a Quad-core A55 architecture, a 3.5mm Audio Jack, MIPI/EDP/LVDS/HD 2.0 display, and a temperature range of -10℃~50℃. This ARM board supports Android 11 and provides BT WIFI Ethernet support. It can be used in many different industries, providing excellent compatibility and flexibility.

Kiosk Industrial Control Board With CPU RK3566 Arm 4K HD MIPI EDP LVDS Android Board 0Kiosk Industrial Control Board With CPU RK3566 Arm 4K HD MIPI EDP LVDS Android Board 1

Features:

  • Product Name: Embedded ARM Board
  • Chipset: RK3566
  • Camera: 2MP/5MP MIPI/USB Supported
  • OS: Android 11
  • BT: 5.2
  • Network: Wi-Fi 802.11 B/g/n
  • Audio: 3.5mm Audio Jack
  • Android Board: PCBA
  • High integration. Integrate USB / LVDS / Ethernet / HD / WIFI in one, simplify the wholemachine With SD card slot
  • High definition. Support 1080P / H.265 (4K2K) video decoding and various LVDS signal LCD display / eDP signal interfaceBuilt in power amplifier.
  • Rich interface. Support USB / serial port / GPIO / ADC interface expansion to meet mainstream peripherals on the market.
  • Complete functions. Support horizontal and vertical screen playback, video split screen,scrolling subtitles, timer switch, USB data import and other functions.
  • Convenient management: humanized playlist making software, easy to manage and controladvertising.Play log, easy to understand the playback situation


Technical Parameters:

Params Details
CPU Quad-core A55 Architecture
Temperature -10℃~50℃
Power Supply DC 12V/2A
USB 2 X USB 3.0, 3 X USB 2.0
Camera 2MP/5MP MIPI/USB Supported
OS Android 11
Storage 16GB/32GB EMMC
Network Wi-Fi 802.11 B/g/n
BT 5.2
Display MIPI/EDP/LVDS/HD 2.0
Chipset RK3566
PCBA Quad Core


Applications:

Sunchip AD-C36 embedded ARM board is a powerful and versatile quad-core computing platform designed for a wide range of applications. The board is equipped with a 2GB RAM, 2 X USB 3.0, 3 X USB 2.0, a 3.5mm Audio Jack, MIPI/EDP/LVDS/HD 2.0 Display and Android 11 OS. It is perfect for applications that require high computing power such as IoT, AI, smart home, robotics and industrial automation. It is also certified by ISO 90001 and ISO 27001, and comes with a minimum order quantity of 2pcs and a competitive price. It is packaged in 60pcs/box and can be delivered within 2-5days. Payment terms are TT in advance and the monthly supply ability is 600000.

RK3566 supports almost full-format H.264 decoder by 4K@60fps, H.265 decoder by 4K@60fps, also support H.264/H.265 encoder by 1080p@60fps, high-quality JPEG encoder/decoder. Embedded 3D GPU makes RK3566 completely compatible with OpenGL ES 1.1/2.0/3.2, OpenCL 2.0 and Vulkan 1.1. Special 2D hardware engine will maximize display performance and provide very smoothly operation.



The build-in NPU supports INT8/INT16/FP16/BFP16 MAC hybrid operation. In addition, with its strong compatibility, network models based on a series of frameworks such as TensorFlow /MXNet /PyTorch /Caffe can be easily converted.



RK3566 has high-performance external memory interface(DDR3/DDR3L/DDR4 /LPDDR 3/LPDDR4 /LPDDR4X) capable of sustaining demanding memory bandwidths.

Information:

Embedded ARM Board

Brand Name: Sunchip

Model Number: AD-C36

Place of Origin: China

Certification: ISO 90001, ISO 27001

Minimum Order Quantity: 2pcs

Price: Negotiation

Packaging Details: 60pcs/box

Delivery Time: 2-5days

Payment Terms: TT in advance

Supply Ability: 600000/Month

Temperature: -10℃~50℃

Storage: 16GB/32GB EMMC

Display: MIPI/EDP/LVDS/HD 2.0

Power Supply: DC 12V/2A

Network: Wi-Fi 802.11 B/g/n

Key Features: 1.0 tops NPU, android 11, RK3566





1, Android industrial Embedded board: RK3588, RK3566, RK3568, RK3288, RK3399,

RK3328, RKPX30, RK3188, RK3128 etc.

2, 【4K】Android media player box for digital signage advertising: RK3399, RK3288, RK3328.

3, 【8K】Android Player Box for Industrial-Control Application: RK3588.

4, Stretched lcd Display signage, support ODM.

5, Open frame LCD display signage: 8inch, 10.1inch, 13.3inch, 15.6inch, 21.5inch etc.

6, SKD Kit: Android board + LCD panel with touch or not:

7inch, 8inch, 10.1inch, 13.3inch, 15.6inch.

7, Other types of Wall Mounted / Floor Standing / Desktop LCD digital signage.

8, Embedded touch desk: such as 32inch.

9, Face recognition temperature detection terminal machine: such as 8inch.



[you can also tell us your requirements, so that we advise you a matched solution]

Support and Services:

Embedded ARM Board Technical Support and Service

We provide quality technical support and services for our Embedded ARM Board products. Our team of experts is available to answer your questions and provide guidance on how to best use our products.

We offer solutions for setup, debugging, and troubleshooting. Our knowledgeable team can help you identify and resolve any issues you may have with our products. We also provide software and firmware updates, as well as technical advice on how to optimize the performance of your Embedded ARM Board.

If you have any questions or need assistance with any of our products, please reach out to us. We would be happy to help you get the most out of your Embedded ARM Board.



Packing and Shipping:

Packaging and Shipping of Embedded ARM Board

Embedded ARM Boards are packaged and shipped with the utmost care. The following steps are taken to ensure safe and secure packing and shipping:

  • The board is placed in an anti-static bag.
  • The board is then placed in an ESD (electrostatic discharge) protective box.
  • The box is filled with foam to provide additional cushioning.
  • The board is wrapped in bubble wrap.
  • The box is sealed with tape.
  • The box is labeled with the correct address.
  • The box is sent via a reliable shipping carrier.

The above steps are taken to ensure that the Embedded ARM Board is safely packaged and shipped to its destination.

  • Kiosk Industrial Control Board With CPU RK3566 Arm 4K HD MIPI EDP LVDS Android Board 2Kiosk Industrial Control Board With CPU RK3566 Arm 4K HD MIPI EDP LVDS Android Board 3









    About Sunchip :



    SUNCHIP is an OEM / ODM factory, customizing products to tailor your needs is our strength and mission, over 130 employees’ team that including over 70 research and development engineers, who can provide services and solutions in electronic Android mainboard design for digital signage industries and domains as it is becoming a critical function in the product development life cycle, diverse categories of embedded systems such as industrial automation, consumer electronics, embedded digital signage devices and exhibition display screen.





    We focus on Rockchip chipsets solution and in-depth development, also deep customization of Android OS; Specialized on LCD Digital Signage & Android ARM Board.





    Sunchip is a national high-tech enterprise with various patents. Our factory runs under the ISO 9001 & ISO 14001 certification. Our products fully completely with CE, RoHS and FCC certifications.



    Sunchip has become the ODM / OEM partner of a number of world-class companies. Our products have been exported to over eighty worldwide countries.We do the best we can consistently to provide excellent quality products and one-stop services for all customers.

    We are looking forward to cooperating, developing and growing with you sincerely.





    Kiosk Industrial Control Board With CPU RK3566 Arm 4K HD MIPI EDP LVDS Android Board 4



Support and Services:

Kiosk Industrial Control Board With CPU RK3566 Arm 4K HD MIPI EDP LVDS Android Board 5

Embedded System Board provides technical support and service to ensure that all of our customers have the best experience possible.

We offer technical support through our online support portal which includes a knowledge base of solutions to common problems, online chat, and email support. We also offer phone support if necessary.

For service, we offer a variety of options to fit the needs of each customer. We offer on-site service, remote service, and in-house service for our customers.

We are committed to providing the best technical support and service to our customers and we strive to ensure that all customers are satisfied with their Embedded System Board purchase.

Packing and Shipping:

Packaging and Shipping for an Embedded System Board

The embedded system board will be securely packaged in a box and shipped with a tracking number. All components of the embedded system board will be firmly secured to prevent any damage during transport. An inventory list of all items included in the package will be included in the box. The box will be clearly labeled with the destination address and a return address.

In order to ensure the safety of the embedded system board, the package will be shipped with a protective layer of bubble wrap. The bubble wrap will be taped to the box securely to prevent any movement of the components during transit. A packing slip will be included in the box, as well as any other necessary documents.

The package will be shipped using a reliable service, such as FedEx or UPS. The tracking number will be included in the package, and the customer will be notified of the shipment details. The package will arrive at its destination within the specified time frame.

FAQ:



  • 1) Q: Is SUNCHIP a factory or simply a trading company?

    A: We are a TRUE OEM/ODM factory. Please read our COMPANY PROFILE, for more information on this issue.



    2) Q: What payment methods are available to me?

    A: We accept most of the payment methods: accept VISA, Pay Later,T/T,Western Union,Paypal and Cash.



    3) Q: How long is the warranty time?

    A: 1 Year.



    4) Q: What are the shipment terms and delivery times of your company?

    A: Delivery / production time is directly affected by the size of the order. Also depending in which season you are shipping.



    5) Q: Do you give any discounts ?

    A: Prices are directly affected by the quantity. We have many ways to help our partners when starting the sample processes. Make sure to ask our sales on how we can make you save some charges.



    6) Q: I would like to add my company logo on your products, is this possible?

    A: SURE.We customize on a regular basis products for many large retaillers and brands. If your order is at the below 10 units, we can consider this as a SAMPLE order, some fees might apply for the logo prints.

    Different methodes are used for logos, please ask our sales for more information on this issue, we will surely find the right solution for you!





Contact: Zoe

Tel: +86 13823275318

Whatsapp:+86 18165515965

Email/Skype: zoe@sunchip-tech.com





Hope to get your kindly advice and let's work together to create something amazing !
