Product Details:
|
| CPU: | RK3566 Quad-core A55 Architecture | USB: | 2 X USB 3.0, 3 X USB 2.0 |
|---|---|---|---|
| Network: | Wi-Fi 802.11 B/g/n | BT: | 5.2 |
| Temperature: | -10℃~50℃ | RAM: | 2GB |
| Camera: | 2MP/5MP MIPI/USB Supported | Display: | MIPI/EDP/LVDS/HD 2.0 |
| GPU: | Embedded With High Performance 2D Acceleration Hardware | NPU: | 1TOPS Computing Power, Support Int8/int16 |
| High Light: | 32GB EMMC Embedded ARM Board,Embedded ARM Board PCBA,RK3566 Board PCBA |
||
Intelligent industrial all-in-one large board, using Rockchip RK3566 quad-core chip solution. Support Android 11 system. Enhanced power management circuit. Support common external devices. Rich interface and stable performance. Suitable for intelligent remote network control: class industrial, medical, large advertising machines, educational video terminals and other equipment.

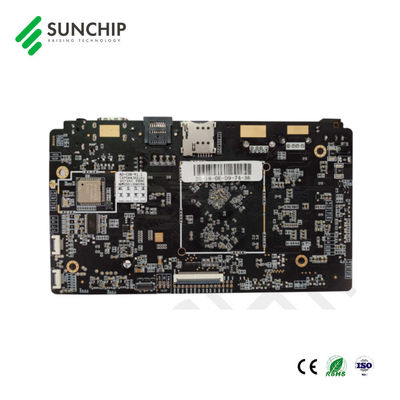

Embedded ARM Board AD-C36 RK3566 is an integrated embedded system designed to deliver maximum performance and reliability. It is powered by a Quad-core A55 Architecture CPU and supports up to 16GB/32GB EMMC storage. It has a Bluetooth 5.2 connection and can be supplied with a DC 12V/2A power supply. The board is also equipped with a MIPI/EDP/LVDS/HD 2.0 display, making it an ideal solution for a wide range of embedded applications. With its powerful combination of features and performance, the Embedded ARM Board is an ideal choice for embedded system design.
| CPU | Rockchip RK3566 Quad-core A55 architecture |
| Main frequency | 1.8GHz |
| GPU | ARM Mali-G52 2EE |
| OpenGL ES 1.1/2.0/3.2 | |
| Vulkan 1.1 | |
| OpenCL 2.0 | |
| Embedded with high performance 2D acceleration hardware | |
| NPU | 1TOPS computing power, support int8/int16 |
| RAM | 2G DDR4 |
| Built-in storage capacity | EMMC 16G/32G/64G optional |
| Display Interface | HDMI2.0(maximum support 4K@60FPS) |
| MIPI display interface (MIPI and LVDS can only be selected as one) | |
| LVDS display interface (MIPI and LVDS can only be selected as one) | |
| EDPdisplay interface | |
| Screen voltage | 3.3V/5V/12V optional |
| Touch screen |
Provide I2C interface (can support multi-point resistive touch, multi-point capacitive touch) Support USB multi-point infrared touch, multi-point acoustic touch, multi-point optical touch. |
| Network | With RJ45 interface, support 10/100M Ethernet. |
| With Wifi & BT module, support Wi-Fi 802.11b/g/n protocol. Support BT4.0 | |
| Image rotation | Support 0 degrees, 90 degrees, 180 degrees, 270 degrees manual / automatic rotation, support gravity sensing function |
| Real-time clock | Built-in real-time clock powered battery |
| Interface device | Support MIPI interface camera, support up to 500W pixels |
| 4 USB HOST 2.0, 1 USB HOST3.0, 1 USB OTG (support usb camera @ 500W usb printer , USB stick , mouse , keyboard standard usb peripherals) | |
| 2 groups of serial ports, support external serial device modules (NFC modules, printers, card swipes, etc.) | |
| TF card, supports up to 32GB | |
| Class D amplifier: 3W*2 8 ohms, microphone support | |
| Audio | MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP |
| Video |
Support H.265/H.26/VP9 video decoding, up to 4K60FPS Support H.264/H.265 video encoding, up to 4K30FPS |
| Picture | Support JPG, BMP, PNG and other image formats to browse and support rotation / slideshow / image zoom function |
| Power adapter | Input:AC100-240V.50-60HZ, output: DC12V 3A(Internal positive and external negative) |
Software information:
| Operating system | Android 11 and above |
| Basic software functions | Web browsing, web chat, email, e-book, resource manager |
| Sound mode | Clock, alarm clock, calculator, recording |
| Language | multi-lingual |
| recording | Support MP3, WMA format recording |
| Tool | Calendar |
| Alarm Clock | |
| Calculator | |
| Note | |
| Weather + clock | |
| Recording | |
| Word processing | EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT |
| E-book | PDF/TXT/CHM/DOC/EXCEL/EPUB/RTF/FB2 |
| schedule | Calendar |
| Input | Standard Android keyboard, optional third-party input method (Chinese, Korean, Japanese, etc.) |
| Internet | Browser -ChromeLite |
| GOOGLE Market | |
| Gmail | |
| Google talk | |
| System Management | Support OTA remote upgrade, U disk upgrade, SD upgrade (silent installation) |
| Original Android system with open root access for product customization and development | |
| Customizable local or remote server management system | |
| Support multiple third-party Android remote ad distribution systems | |
| Support multi-channel serial devices, USB devices, IO control devices |
The Sunchip AD-C36 is an embedded ARM board that is designed to meet the needs of a variety of applications. It is compact and easy to install, and features a powerful Quad-core A55 Architecture, 2GB RAM, 2MP/5MP MIPI camera support, and BT WIFI Ethernet support. Additionally, it supports USB 3.0 and USB 2.0, as well as MIPI/EDP/LVDS/HD 2.0 displays.
The Sunchip AD-C36 features a PCBA design and is ISO 90001 and ISO 27001 certified, guaranteeing its quality and reliability. It comes with a minimum order quantity of 2pcs and is available for negotiation. It is packaged in boxes of 60pcs and has a delivery time of 2-5days. Payment is accepted via TT in advance and the supply ability is 600000/month.
Brand Name: Sunchip
Model Number: AD-C36
Place of Origin: China
Certification: ISO 90001, ISO 27001
Minimum Order Quantity: 2pcs
Price: Negotiation
Packaging Details: 60pcs/box
Delivery Time: 2-5days
Payment Terms: TT in advance
Supply Ability: 600000/Month
Temperature: -10℃~50℃
Display: MIPI/EDP/LVDS/HD 2.0
RAM: 2GB
OS: Android 11
Power Supply: DC 12V/2A
PCBA, BT WIFI Ethernet support, PCBA, OEM/ODM
This Embedded ARM Board AD-C36 is from Sunchip, offering high performance and professional services. It has model number AD-C36, and it has passed ISO 90001 and ISO 27001 certification. Its minimum order quantity is 2pcs, and the price is negotiable. It has a temperature range of -10℃~50℃. It supports MIPI/EDP/LVDS/HD 2.0 display, and the RAM is 2GB. It runs on Android 11 and is powered by DC 12V/2A. It supports PCBA, BT WIFI Ethernet, and also offers customizing services for OEM/ODM. The packaging details is 60pcs/box, and the delivery time is 2-5days. The payment terms is TT in advance, and the supply ability is 600000/Month.
Technical Support and Services for Embedded ARM BoardWe provide technical support and services for Embedded ARM Board. Our technical team is available to help you with any questions or inquiries related to the Embedded ARM Board. We will provide support and assistance for the product, including troubleshooting, installation, and maintenance.
We also offer software and firmware updates for the Embedded ARM Board, ensuring that your device is up to date with the latest features and bug fixes. Our team is available to assist you in updating your device and addressing any issues that may arise.
If you have any questions or would like to learn more about our technical support and services for Embedded ARM Board, please don’t hesitate to contact us.
Embedded ARM Board Packaging and Shipping:
The embedded ARM board is shipped in a cardboard box. Inside the box, the board is surrounded by foam or bubble wrap to protect it from damage during shipping. The box should be labeled with the product name, address, and any other required information. Once the box is sealed, it is ready to be shipped.
About Sunchip :
SUNCHIP is an OEM / ODM factory, customizing products to tailor your needs is our strength and mission, over 130 employees’ team that including over 70 research and development engineers, who can provide services and solutions in electronic Android mainboard design for digital signage industries and domains as it is becoming a critical function in the product development life cycle, diverse categories of embedded systems such as industrial automation, consumer electronics, embedded digital signage devices and exhibition display screen.
We focus on Rockchip chipsets solution and in-depth development, also deep customization of Android OS; Specialized on LCD Digital Signage & Android ARM Board.
Sunchip is a national high-tech enterprise with various patents. Our factory runs under the ISO 9001 & ISO 14001 certification. Our products fully completely with CE, RoHS and FCC certifications.
Sunchip has become the ODM / OEM partner of a number of world-class companies. Our products have been exported to over eighty worldwide countries.We do the best we can consistently to provide excellent quality products and one-stop services for all customers.
We are looking forward to cooperating, developing and growing with you sincerely.
We mainly manufacture
1, Android industrial Embedded board: RK3588, RK3566, RK3568, RK3288, RK3399,
RK3328, RKPX30, RK3188, RK3128 etc.
2, 【4K】Android media player box for digital signage advertising: RK3399, RK3288, RK3328.
3, 【8K】Android Player Box for Industrial-Control Application: RK3588.
4, Stretched lcd Display signage, support ODM.
5, Open frame LCD display signage: 8inch, 10.1inch, 13.3inch, 15.6inch, 21.5inch etc.
6, SKD Kit: Android board + LCD panel with touch or not:
7inch, 8inch, 10.1inch, 13.3inch, 15.6inch.
7, Other types of Wall Mounted / Floor Standing / Desktop LCD digital signage.
8, Embedded touch desk: such as 32inch.
9, Face recognition temperature detection terminal machine: such as 8inch.
[you can also tell us your requirements, so that we advise you a matched solution]
1) Q: Is SUNCHIP a factory or simply a trading company?
A: We are a TRUE OEM/ODM factory. Please read our COMPANY PROFILE, for more information on this issue.
2) Q: What payment methods are available to me?
A: We accept most of the payment methods: accept VISA, Pay Later,T/T,Western Union,Paypal and Cash.
3) Q: How long is the warranty time?
A: 1 Year.
4) Q: What are the shipment terms and delivery times of your company?
A: Delivery / production time is directly affected by the size of the order. Also depending in which season you are shipping.
5) Q: Do you give any discounts ?
A: Prices are directly affected by the quantity. We have many ways to help our partners when starting the sample processes. Make sure to ask our sales on how we can make you save some charges.
6) Q: I would like to add my company logo on your products, is this possible?
A: SURE.We customize on a regular basis products for many large retaillers and brands. If your order is at the below 10 units, we can consider this as a SAMPLE order, some fees might apply for the logo prints.
Different methodes are used for logos, please ask our sales for more information on this issue, we will surely find the right solution for you!
