Product Details:
|
Battery: | RTC Battery | OS: | Android |
---|---|---|---|
Camera: | MIPI / USB Supported | Connectivity: | Wi-Fi, BT, Ethernet, 4G LTE |
CPU: | Rockchip RK3288 Quad-core Cortex-A17 Quad-core GPU Mali-T764 | Power: | DC 12V |
Main Frequency: | 1.8 GHz | Serial Port: | UART X3, GPIO |
Highlight: | RTC Battery Android Embedded Board,Wi-Fi Connect Android Embedded Board,RK3288 Board for Industrial Automation |
The intelligent industrial all-in-one board adopts the Rockchip RK3288 quad-core chip solution and supports Android 6.0 and above systems. Powerful computing power. Support H.265 4K video playback. Rich interface, enhanced power management circuit. It is suitable for intelligent remote network control: equipment such as industrial, medical, large advertising machine, educational video terminal and so on.

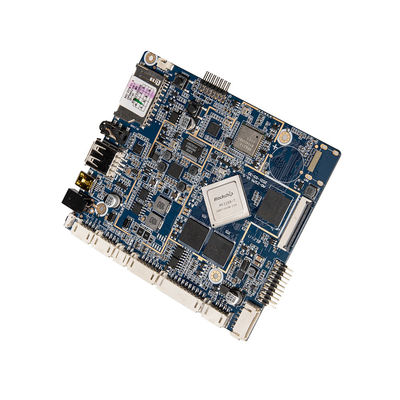

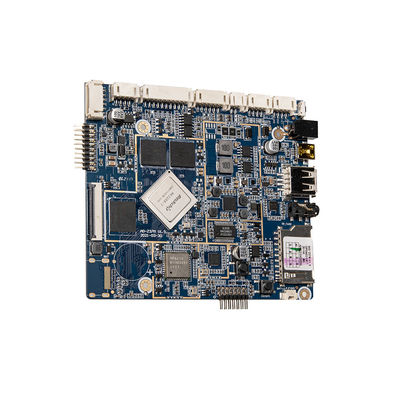

Android Embedded Board AD-Z37M is an Android System Board designed to provide an all-in-one solution for embedded devices. It features a powerful Rockchip RK3288 Quad-core Cortex-A17 Quad-core GPU Mali-T764 processor and supports a variety of display options such as HD, LVDS, MIPI and EDP. The board also features I2C and USB touch screens, an RTC battery for power backup, and expandable memory with an SD card slot. All these features make the Android Embedded Board a perfect solution for Android Embedded Device applications.
Main Frequency | 1.8 GHz |
---|---|
Touch Screen | I2C / USB |
Camera | MIPI / USB Supported |
Display | HD / LVDS /MIPI /EDP |
Memory | 2GB /4GB Optional |
Serial port | UART X3, GPIO |
CPU | Rockchip RK3288 Quad-core Cortex-A17 Quad-core GPU Mali-T764 |
Expandable Memory | Yes, SD Card Support |
Power | DC 12V |
Battery | RTC Battery |
CPU | Rockchip RK3288 Quad-core Cortex-A17 Quad-core GPU Mali-T764 |
Main frequency | 1.8GHz |
RAM | LPDDR3 2G/4G Optional |
Built-in storage capacity | EMMC 8GB/16G/32G/64G Optional |
Display interface | MIPI Screen interface, Max resolution 1920*1080 |
EDP screen interface | |
Touch Panel |
Provide I2C interface (can support multi-point resistive touch, multi-point capacitive touch). Support USB multi-point infrared touch, multi-point acoustic wave touch, multi-point optical touch. |
The internet | With RJ45 interface, support 10/100 Ethernet. |
Equipped with Wifi&BT module, supporting Wi-Fi 802.11b/g/n protocol. Support BT4.0 | |
Image rotation | Support 0 degree, 90 degree, 180 degree, 270 degree manual/auto rotation, support gravity sensor function |
Real Time Clock | Built-in (optional external) real-time clock power supply battery |
Interface device | Support MIPI interface camera, up to 500W pixels |
3 USB HOST, 1 USB OTG (support usb camera@500W usb printer, U disk, mouse, keyboard, standard usb peripherals) | |
3 groups of serial ports. Support external serial port device modules (3G module, NFC module, printer, card reader, etc.) | |
SD card, maximum support 32GB | |
Class D power amplifier: 3W*2 8 ohms, support microphone | |
HDMI 2.0 Output | |
Audio | MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP format |
Video | Support H.264, MPEG2, VP6, VP8, MVC and other video formats 2160P@24FPS decoding. YouTube and other online videos, up to 4K, HTML5 video playback, Flash 10.1 playback |
Picture | Support JPG, BMP, PNG and other image format browsing and support rotation/slide show/picture zoom function |
Power Adapter | Input: AC100-240V.50-60HZ, output: DC12V 3A |
Operating system | Android 8.0 and above |
Basic software functions | Web browsing, web chat, email, e-book, resource manager |
Sound effect mode | Clock, alarm clock, calculator, recording |
Language support | multi-lingual |
Recording | Support MP3, WMA format recording |
Tool | Calendar |
Alarm Clock | |
Calculator | |
note | |
Weather + clock | |
recording | |
Word processing | EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT |
Ebook | PDF/TXT/CHM/DOC/EXCEL/EPUB/RTF/FB2 |
Schedule | calendar |
Input | Standard Andriod keyboard, optional third-party input method (Chinese, Korean, Japanese, etc.) |
Network | Browser -ChromeLite |
GOOGLE Market | |
Gmail | |
Google talk | |
System Management | APK installer |
The original ecological Android system, open root permissions, can be customized product development | |
Real-time remote monitoring, self-recovery from system crashes, 7*24 hours unattended | |
System setting | |
Google Maps | |
Global time | |
Support OTA remote upgrade |
The Sunchip AD-Z33 Android Embedded Board is a perfect choice for a versatile range of applications, thanks to its powerful performance and all-in-one design. Powered by Rockchip RK3288 Quad-core Cortex-A17 Quad-core GPU Mali-T764, this Android arm board is suitable for multi-connectivity, smart home, medical, industrial and commercial applications. With support for MIPI/USB camera connections, DC 12V power, 2GB/4GB memory options, and 3.5mm audio jack, this embedded device can be used as a single-board computer or a controller board to serve different projects. This embedded board is certified by ISO 90001 and ISO 27001, and the minimum order quantity is only 2pcs. The price is highly negotiable, and it is packaged in 60pcs/box, with delivery time of 2-5 days and payment terms of TT in advance. The supply ability is 600000/Month.
Brand Name: Sunchip
Model Number: AD-Z33
Place of Origin: China
Certification: ISO 90001, ISO 27001
Minimum Order Quantity: 2pcs
Price: Negotiation
Packaging Details: 60pcs/box
Delivery Time: 2-5days
Payment Terms: TT in advance
Supply Ability: 600000/Month
Sunchip Android Embedded Board is an ideal choice for Android arm board, Android system board and rockchip board. It is certified by ISO 90001 and ISO 27001, and the minimum order quantity is 2pcs. It is powered by DC 12V and the built-in storage is EMMC 16GB /32GB. It is equipped with Rockchip RK3288 Quad-core Cortex-A17 Quad-core GPU Mali-T764 and connectivity options include Wi-Fi, BT, Ethernet, 4G LTE. The price is open for negotiation and the delivery time is 2-5days. We can supply 600000/Month and the payment terms is TT in advance. It is packaged by 60pcs/box.
We provide technical support and services for our Android Embedded Board products. Our team of experienced engineers is available to answer your questions and provide technical assistance. We also offer a variety of services to help you get the most out of your Android Embedded Board, including product customization, software installation, onboarding, and troubleshooting.
We are committed to providing exceptional customer service and technical support. We strive to resolve any issue as quickly as possible and ensure our customers are satisfied with our services. Our team is available 24/7 to answer your questions and provide technical assistance.
If you have any questions or need help with your Android Embedded Board, please don’t hesitate to contact us.
Android Embedded Board is shipped in a secure, protective packaging. The package should include the following:
The package must be handled with care to avoid any damage. It should be stored in a clean, dry place away from extreme temperatures. All items must be securely sealed and should not be exposed to moisture or dust.
The package should be clearly labeled with the name and address of the sender and recipient. All packages should be tracked to ensure that they are delivered to the correct recipient in a timely manner.
SUNCHIP is an OEM / ODM factory, customizing products to tailor your needs is our strength and mission, over 130 employees’ team that including over 70 research and development engineers, who can provide services and solutions in electronic Android mainboard design for digital signage industries and domains as it is becoming a critical function in the product development life cycle, diverse categories of embedded systems such as industrial automation, consumer electronics, embedded digital signage devices and exhibition display screen.
We focus on Rockchip chipsets solution and in-depth development, also deep customization of Android OS; Specialized on LCD Digital Signage & Android ARM Board.
Sunchip is a national high-tech enterprise with various patents. Our factory runs under the ISO 9001 & ISO 14001 certification. Our products fully completely with CE, RoHS and FCC certifications.
Sunchip has become the ODM / OEM partner of a number of world-class companies. Our products have been exported to over eighty worldwide countries.We do the best we can consistently to provide excellent quality products and one-stop services for all customers.
We are looking forward to cooperating, developing and growing with you sincerely.
We mainly manufacture
1, Android industrial Embedded board: RK3588, RK3566, RK3568, RK3288, RK3399,
RK3328, RKPX30, RK3188, RK3128 etc.
2, 【4K】Android media player box for digital signage advertising: RK3399, RK3288, RK3328.
3, 【8K】Android Player Box for Industrial-Control Application: RK3588.
4, Stretched lcd Display signage, support ODM.
5, Open frame LCD display signage: 8inch, 10.1inch, 13.3inch, 15.6inch, 21.5inch etc.
6, SKD Kit: Android board + LCD panel with touch or not:
7inch, 8inch, 10.1inch, 13.3inch, 15.6inch.
7, Other types of Wall Mounted / Floor Standing / Desktop LCD digital signage.
8, Embedded touch desk: such as 32inch.
9, Face recognition temperature detection terminal machine: such as 8inch.
[you can also tell us your requirements, so that we advise you a matched solution]
FAQ
1) Q: Is SUNCHIP a factory or simply a trading company?
A: We are a TRUE OEM/ODM factory. Please read our COMPANY PROFILE, for more information on this issue.
2) Q: What payment methods are available to me?
A: We accept most of the payment methods: accept VISA, Pay Later,T/T,Western Union,Paypal and Cash.
3) Q: How long is the warranty time?
A: 1 Year.
4) Q: What are the shipment terms and delivery times of your company?
A: Delivery / production time is directly affected by the size of the order. Also depending in which season you are shipping.
5) Q: Do you give any discounts ?
A: Prices are directly affected by the quantity. We have many ways to help our partners when starting the sample processes. Make sure to ask our sales on how we can make you save some charges.
6) Q: I would like to add my company logo on your products, is this possible?
A: SURE.We customize on a regular basis products for many large retaillers and brands. If your order is at the below 10 units, we can consider this as a SAMPLE order, some fees might apply for the logo prints.
SUNCHIP: Digital Signage manufacturer in Shenzhen, China.
Our main products include Android ARM Board, Floor Standing Display, Wall Mounted Display, Stretched LCD Display, Open Frame Display and Android Media Player Advertising Box.
