|OS:||Android 7.1/ Android 9.0/ Android 10||Power Supply:||DC 12V/2A|
|Camera:||MIPI X2 / USB Type Supported||CPU:||Rockchip RK3399 Dual Core Cortex-A72+ Quad Core Cortex-A53 CPU|
|Expansion:||Micro SD Card||POE:||Yes|

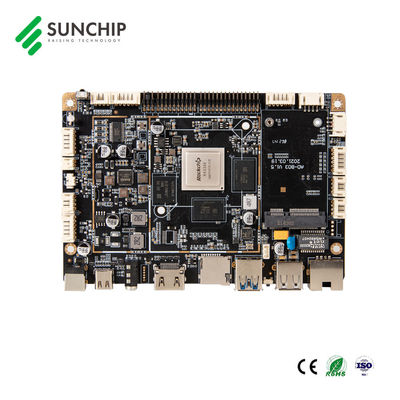

Android 9.0 RK3399 Board,
RK3399 Board With LVDS EDP,
RK3399 Android Display Board
RK3399 Board is an embedded board built with the latest Rockchip RK3399 processor, providing high performance and low power consumption. This board offers multiple display interfaces including LVDS, EDP and HD 2.0, and is equipped with Mali-T860MP4 GPU for a fast and smooth user experience. It supports Micro SD card for data storage and expansion, and can run both Android 7.1, Android 9.0 and
Android 10 operating systems. With a small size of 140mm X 95mm, it is perfect for applications such as industrial control, home entertainment, digital signage, VR and more.
RK3399 Board is the ideal embedded board for your project. It combines the power of the RK3399 processor with the flexibility of the
Android operating system, giving you a reliable and cost-effective solution for your embedded development. With its fast performance and low power consumption, it is perfect for applications in a wide range of industries.
RK3399 Android integrated board, using RockChip RK3399 six-core 64-bit server-level chip solution, supporting Google
Android7.1/8.1/9.0 operating system, RK3399 is a six-core 64-bit CPU based on dual-core A72+ quad- core A53 architecture, the latest GPU Quad-core Mali-T860, the overall running score is up to more than 110,000 points super performance
Supports mainstream audio and video formats and picture decoding. Support dual-screen different display function, dual 6/8-bit LVDS interface, support 1080P output, can drive 7 inch to 82 inch 1080P display, support EDP display interface output.3G/4G Data communication, support 4K video playback.
Support 2.4GHz/5GHz dual- band WiFi, Bluetooth 4.1-BLE function, high-speed USB3.0, support UART / serial port expansion / I2C port / MIPI camera and other functions, rich interfaces.
A new six-core chip with super performance makes the product more perfect, and is widely used in intelligent control fields such as witness identification, advertising machines, interactive all-in-one machines, security, medical, transportation, finance,industrial control and so on.
Due to the characteristics of its hardware platform and Android's intelligence, it can be used on the main board of the smart terminal when human-computer interaction and network device interaction are required.
1:Used to connect to Ethernet
2:Used for USB2.0 devices
4:For USB3.0 devices
5:Used to store TF card
6:Used to connect HDMI display device
7:Used to insert the headset
8:Used to connect to the computer
9:Used to connect 12V power head
10:Used to connect 4G microphone
11:Used for POE power output
12:Used for USB2.0 devices
13:Used for USB2.0 devices
14:Used to connect SPI1/UART standard devices
15:Used to connect to the small button board
16:Used to connect to the 12V 4PIN interface
17:Used to connect UART standard equipment
18:Used to connect RTC power supply
19: Used to connect microphone
20: Used for external infrared & light
21: LED light
22: Used to connect UART standard equipment
23: used to adjust the LVDS backlight
24: used to connect to the LVDS screen
25: used to connect to the EDP screen
26: used to select the power supply voltage of the LVDS screen
27: Used to adjust EDP backlight
28: Used to connect speakers
29: Used for infrared receiver
30: Used for connecting 4G module
The Sunchip AD-B03 RK3399 Board, a powerful mainboard powered by a high-performance Rockchip RK3399 processor, is the ideal choice for any PCBA application. With its integrated USB 3.0, USB 2.0, IR, and other ports, it provides a powerful and flexible solution for any Android OS. The board runs either Android 7.1, Android 9.0, or Android 10, and comes with 3x UART/ (2 UART, 1 SPI) support for external serial devices such as NFC modules, printers, and card readers. It also has a Micro SD card slot for expansion, making it the perfect choice for any PCBA application.
The RK3399 Board is an advanced and reliable solution for any Android development project. It's the perfect combination of performance, compatibility, and scalability, making it an ideal choice for any PCBA application. Its powerful processor, integrated ports, and expandability make it an excellent choice for any Android application.
The Sunchip AD-B03 RK3399 Board is the perfect solution for any Android development project. Its powerful processor and integrated ports make it an ideal choice for any PCBA application. With its USB 3.0, USB 2.0, IR, and other ports, it provides a powerful and flexible solution for any Android OS. The board runs either Android 7.1, Android 9.0, or Android 10, and comes with 3x UART/ (2 UART, 1 SPI) support for external serial devices such as NFC modules, printers, and card readers. Its expandability, through its Micro SD card slot, makes it an excellent choice for any PCBA application.
Sunchip's RK3399 Board, Model AD-B03, offers a range of custom board and PCBA services for your embedded projects. The board is designed and manufactured in China, and features a variety of ports and functionalities.
Choose Sunchip to get the best in custom board and PCBA services for your embedded projects!
RK3399 Board will be shipped using standard shipping boxes. Each board will be securely packed to prevent any damage in transit. The packaging materials used are recyclable and environmentally friendly.
The boxes are labeled with information such as product name, size, weight, and shipping address. The product will be securely fixed inside the box using bubble wrap and foam padding to ensure that the board is not damaged in transit.
The boxes will be sealed with tape to ensure that the contents are secure during shipping. The boxes will also be clearly labeled with the shipping address and tracking number, so that the customer can easily track the status of their order.
We take great care to package and ship RK3399 Board in a way that ensures that they arrive in perfect condition. We also take extra steps to ensure that the products are delivered in a timely and reliable manner.
