|Serial Port:||3x UART/(2 UART, 1 SPI), Support External Serial Device (NFC Module, Printer, Card Reader, Etc.)||ROM:||16GB/32GB/64GB EMMC Optional|
|GPU:||Mali-T860MP4||Camera:||MIPI X2 / USB Type Supported|
|Power Supply:||DC 12V/2A||Image Rotation:||Support 0 Degree, 90 Degrees, 180 Degrees, 270 Degrees Manual / Automatic Rotation, Support Gravity Sensing Function|
|POE:||Yes||Expansion:||Micro SD Card|
POE Enabled RK3399 Board,
Micro SD Card RK3399 Board,
POE Rk3399 Development Board
Intelligent industrial all in one board, using Rockchip RK3399 six-core chip program, support Google Android7.1 or higher system. Powerful computing power. Support H.265 4K video playback. Rich interface and enhanced power management circuit. Suitable for intelligent remote network control: industrial, medical, large advertising, educational video terminals and other equipment.
RK3399 Board is a powerful mainboard with Rockchip RK3399 Dual Core Cortex-A72+ Quad Core Cortex-A53 CPU, designed for EDP LCD Android board. It has IR, Micro SD Card Expansion, MIPI X2 / USB Type Camera Supported, USB 3.0 X1, USB 2.0 X4. It is an ideal mainboard for industrial and commercial applications. It provides strong performance with low power consumption, making it well suited for large and complex projects. The board features high speed data transfer, high compatibility with various hardware and software, and good stability. It also provides a great platform for developing innovative applications. The board is durable and reliable, making it perfect for long-term use.
|CPU||Rockchip RK3399 dual core Cortex-A72+ quad core Cortex-A53 CPU|
|GPU||ARM Mali-T860MP4 GPU|
|Built-in storage capacity||EMMC 8GB/16G/32G/64G optional (Default 16GB)|
|Display interface||LVDS interface (single, 6-bit dual, 8-bit dual). Supports a maximum resolution of 1920x1080, support 7"-84" display|
|EDP screen interface, support resolution 1920x1080|
|Screen voltage||Support 3.3V/5V/12V optional|
|Network||With RJ45 interface, support 10/100/1000 Ethernet|
|Support 4G PCIE interface|
|With WIFI & BT module, support Wi-Fi 802.11a / b / g / n / ac protocol. Support BT 4.2|
|Image rotation||Support 0 degree, 90 degrees, 180 degrees, 270 degrees manual / automatic rotation, support gravity sensing function|
|Real Time Clock||External real-time clock power supply battery|
|Interface device||Support MIPI camera x2|
|USB HOST x 3 (support usb camera@500W usb printer, U disk, mouse, keyboard and standard USB peripherals), 1x USB3.0|
|3x UART/(2 UART, 1 SPI), support external serial device (NFC module, printer, card reader, etc.)|
|TF card, maximum support 64GB|
|Class D amplifier: 5W*2 8 ohms, support microphone|
|HDMI 2.0 output|
|Audio||MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, 3GPP format|
|Video||Supports H.264, MPEG2, VP6, VP8, MVC and other video formats. Online videos such as YouTube, up to 4K, HTML5 video playback, Flash 10.1 playback|
|Picture||Support JPG, BMP, PNG, GIF and other image formats to browse and support rotation / image enlargement|
|Power Adapter||Input:AC100-240V.50-60HZ, Output: DC12V/3A|
|Operating system||Android 7.0|
|Basic software function||Web browsing, email, e-book, resource manager|
|Sound mode||Clock, alarm clock, calculator, recording|
|Voice support||Multinational voice|
|Recording||Support MP3, WMA format recording|
|Weather + clock|
|File processing||EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT|
|Input||Standard Android keyboard, optional third-party input method (Chinese, Korean, Japanese, etc.)|
|Internet||Browser -Chrome Lite|
|System Management||APK installer|
|Original Android system, open root permissions, product customization development|
|Real-time remote monitoring, 7*24 hours unattended|
|Support OTA remote upgrade|

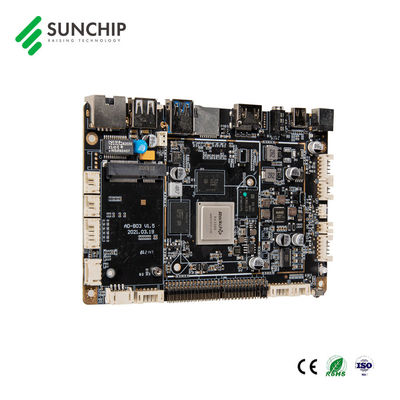

Sunchip AD-B03 RK3399 Board is a powerful, high performance arm board mainboard. It is a single board computer that supports Android system and is powered by a Rockchip RK3399 hexa-core processor. It features a Mali-T860MP4 GPU, 3.5mm audio jack, IR, DC 12V/2A power supply and POE. This board is perfect for AI, industrial and other professional applications. It is capable of high performance processing and can handle multiple tasks simultaneously. It is highly reliable, durable and provides excellent performance. With its advanced features and powerful processor, Sunchip AD-B03 RK3399 Board is a great choice for industrial, commercial and other professional applications.
Brand Name: Sunchip
Model Number: AD-B03
Place of Origin: China
WiFi: 802.11 A/b/g/n/ac
Size: 140mm X 95mm
POE : Yes
RAM: 4GB LPDDR4
OS: Android 7.1/ Android 9.0/ Android 10
Our RK3399 board is a LVDS TFT android board that is 4G supported, perfect for your applications. It features 802.11 A/b/g/n/ac WiFi, POE, 4GB LPDDR4 RAM, and runs Android 7.1/ Android 9.0/ Android 10; all in a 140mm X 95mm size.
The RK3399 Board is carefully packaged and shipped to ensure it arrives in perfect condition.
The board is placed in an ESD-safe bag and placed in a static-shielded foam-lined box. This protects the board from static discharges and physical damage during transit.
The box is then sealed with reinforced tape on the top, bottom and sides. This ensures there is no tampering or leakage during transit.
Finally, the box is labeled with the RK3399 Board product name and a unique barcode for tracking. The box is then ready for shipping.
