Product Details:
|
| CPU: | RK3288 Quad-core Cortex-A17@1.8G GPU Mali T764 | Ram: | 2GB |
|---|---|---|---|
| Rom: | 16GB | Material: | Metal |
| OS: | Android 7.1, 9.0, 10.0 Etc. | WIFI: | 802.11 B/g/n |
| Charger Type: | US/UK/EU Optional | Resolution: | 2k / 4K Optional |
| Customizable Interface: | Yes | Name: | Media Player |
| High Light: | Digital Signage Media Player Box OEM,RK3399 Android Media Player,RK3288 Android Media Player |
||

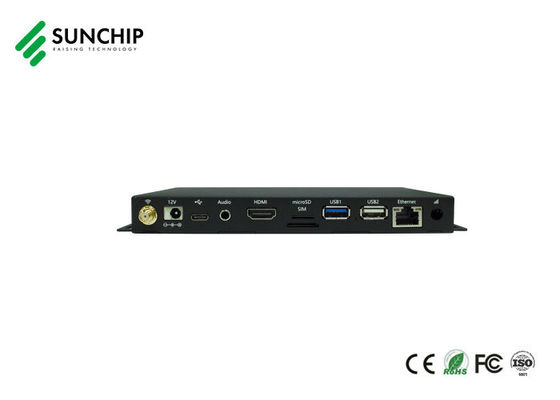

RK3288 RK3399 Android Operation System Digital Signage Box Media Player With Internal Memory
Rockchip RK3288, Model AD-B02P BOX
| Model No.: | AD-0140 BOX | Model Name: | Android Media player box | ||
| Size: | 170*96*20MM | ||||
|
|
|||||
| Hardware Spec | |||||
| Operation System | Android 7, 9.0 Android 10 | ||||
| Language | Chinese,English...Multi-Language support | ||||
| CPU | RK3288 Quad-core ARM Cortex-A17 MPCore processor | ||||
| GPU | ARM Mali-T764 GPU | ||||
| SDRAM | DDR3 2GB | ||||
| Flash | 16gb, 32GB(EMMC) | ||||
| Network | RJ45 10/100M Ethernet | ||||
| WIFI Module | AP6212 | ||||
| Power Supply | DC 12V/3A 5.5mm DC-in | ||||
| Camera | 200W /500W | ||||
| Interface | |||||
| support maximum 4Kx2K@30fps max resolution output |
|||||
| USB Port | 1*USB Host 1*USB OTG | ||||
| AUDIO Out | 1*3.5mm Headphone Jack | ||||
| Network | 1*RJ45 10/100/1000M Ethernet | ||||
| Power Supply | 1*DC Jack 12V/3A 5.5mm DC-in | ||||
| TF card Interface | TF Card, up to 32GB | ||||
| External antenna | 2.4G/ 5G 3dbi optional | ||||
| Media Parameter | |||||
| Audio Container | Supports MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP | ||||
| Video Decoder | Supports *.mkv,*.wmv,*.mpg, *.mpeg, *.dat, *.avi, *.mov, *. *.mp4, and *.jpg file formats | ||||
| Video Encoder | H.264/MVC/VP8 encoder by 1080p@30fps | ||||
| Resolution | Maximum resolution is 4Kx2K | ||||
| H.265 Data Rate | H.265 decoder by 2160p@60fps | ||||
| Software Extension | APK install | ||||
| Infrared remote control | IR remote | ||||
| IM Software | Support Skype/QQ/MSN/GTALK (Depends on APK) | ||||
| Offic Software | WORD/EXCEL/PDF(Depends on APK install) | ||||
| Others Parameters | |||||
| Operationg Temperature | 0~70℃ | ||||
| Storage Temperature | -10~70℃ | ||||
| Humidity environment | 5%-90%(No condensation) | ||||
| Package | |||||
| Dimension | 258*147*67MM | ||||
| Net weight | 0.534kg | ||||
| Gift Box Size | 195*153*70mm | ||||
| Packing accessories | |||||
| 1, AC cable 2, 12V/3A adapter 3, Remote control 4, External antenna |
|||||
Sunchip-RK3288 High-Performance Platform
Sunchip-RK3288 is an all-in-one high-performance multi-core computing platform.
It features powerful graphics processing and video decoding ability,
and support for Android 7-10 OS.
It will become extra ordinary with your creativity.
Quad-Core High-Performance Board
Uses RK3288 quad-core Cortex-A17processor, supports 4K hardware decoding, has a rich expansion interface, as well as compatible with mainstream displays. It adopts the immersion gold process and has passed various pressure tests, which can be applied to the product directly.
RK3288 development board is an all-in-one high performance multi-core computing platform. Based on the Rockchip RK3288 SoC featuring an Arm Cortex-A17 (MP4) and Arm Mali-T760 (MP4), it features powerful graphics processing and video decoding ability, and support for Android OS.
High-performance Core Configuration
with RK3288 quad-core Cortex-A17 processor, frequency up to 1.8GHz, integrated quad-core Mali-T764 GPU. Its excellent performance makes products more possibilities.
Powerful Hardware Decoding Capability
It supports LVDS/EDP/ HD-MI display interfaces, 4K hardware decoding, dual-screen identical display/dual-screen differential display, and can drive the mainstream 5~100-inch display directly.
Running cloud-based digital signage software
The cost-effective, scalable and easy to use software is an excellent choice for businesses of any size and in any vertical. Users can login from any computer or a mobile device and create or update their content or campaign within minutes.
Digital signage player comes with 1-year warranty
Designed to run 24/7
Ideal for any digital signage application
About Sunchip :
SUNCHIP is an OEM / ODM factory, customizing products to tailor your needs is our strength and mission, over 130 employees’ team that including over 70 research and development engineers, who can provide services and solutions in electronic Android mainboard design for digital signage industries and domains as it is becoming a critical function in the product development life cycle, diverse categories of embedded systems such as industrial automation, consumer electronics, embedded digital signage devices and exhibition display screen.
We focus on Rockchip chipsets solution and in-depth development, also deep customization of Android OS; Specialized on LCD Digital Signage & Android ARM Board.
Sunchip is a national high-tech enterprise with various patents. Our factory runs under the ISO 9001 & ISO 14001 certification. Our products fully completely with CE, RoHS and FCC certifications.
Sunchip has become the ODM / OEM partner of a number of world-class companies. Our products have been exported to over eighty worldwide countries.We do the best we can consistently to provide excellent quality products and one-stop services for all customers.
We are looking forward to cooperating, developing and growing with you sincerely.
We mainly manufacture
1, Android industrial Embedded board: RK3588, RK3566, RK3568, RK3288, RK3399,
RK3328, RKPX30, RK3188, RK3128 etc.
2, 【4K】Android media player box for digital signage advertising: RK3399, RK3288, RK3328.
3, 【8K】Android Player Box for Industrial-Control Application: RK3588.
4, Stretched lcd Display signage, support ODM.
5, Open frame LCD display signage: 8inch, 10.1inch, 13.3inch, 15.6inch, 21.5inch etc.
6, SKD Kit: Android board + LCD panel with touch or not:
7inch, 8inch, 10.1inch, 13.3inch, 15.6inch.
7, Other types of Wall Mounted / Floor Standing / Desktop LCD digital signage.
8, Embedded touch desk: such as 32inch.
9, Face recognition temperature detection terminal machine: such as 8inch.
[you can also tell us your requirements, so that we advise you a matched solution]
