Product Details:
|
| CPU Solution: | RK3568 Quad-Core | OS: | Android |
|---|---|---|---|
| DDR/EMMC: | 2GB RAM/16GB ROM | Display Interface: | LVDS/EDP/MIPI/HD OUT For Display |
| Serial Port: | 3*Serial Port (UART3, UART4, UART7) | WIFI/Bluetooth: | 2.4G WIFI & Bluetooth 4.0 |
| Ethernet: | 10/100/1000M Ethernet | 4G Network: | Support 4G LTE MINI PCIE |
| USB: | 1*USB 3.0, 1*USB OTG, 3*4PIN USB | RTC: | YES |
| Audio: | 3.5mm Audio Jack | Camera: | MIPI CSI |
| Expansion: | Micro SD Card Slot | GPIO: | 40-pin GPIO |
| Memory: | 2/4GB | Networking: | Gigabit Ethernet |
| Power: | 12V DC | Processor: | ARM Cortex-A53 |
| Storage: | 16GB/32GB/64GB EMMC | ||
| High Light: | Android Integrated Board With EMMC,RK3568 Android Integrated Board,Android Integrated Board With DDR4 |
||

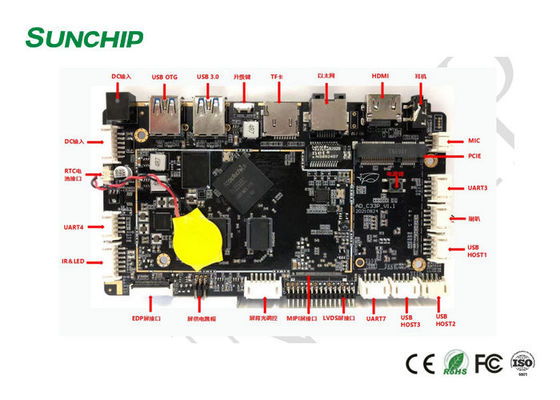

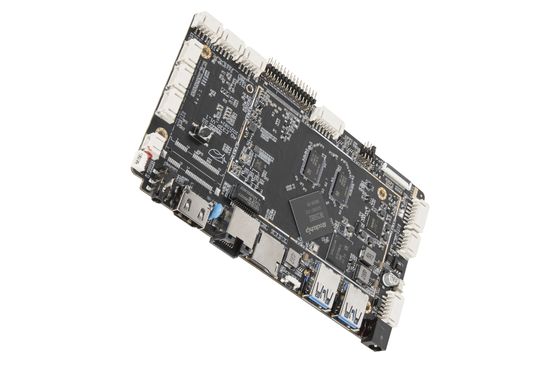

Embedded System Board Android 11 OS ARM board WIFI BT LAN 4G networks industrial grade application from Sunchip
Sunchip is a professional android board designer/manufacturer in Shenzhen, China.
We have a team that includes more than 150 people. In this team, R&D has more than 80 employees that involving hardware engineers (layout, debugging), software engineers (Driver, Kernel, testing, APK), ID designer and Mechanical Engineers.
Sunchip has more than 10-year experience on PCBA design and mass-production, also passed the ISO9001 certification. Our office &factory have more than 3500 square meters.
Sunchip can provide one-stop service, from PCB layout, prototype, production, PCBA SMT, testing, housing design, assembly, software customization, QC control, after-sale etc.
| CPU | Rockchip RK3568 quad-core 64-bit Cortex-A55, GPU Mali-G52 |
| Main frequency | Up to 2.0 GHz |
| RAM | DDR4 2G/4G optional |
| Built-in storage capacity | EMMC 8GB/16G/32G/64G optional (label 16GB) |
|
Display interface
|
LVDS interface (single-channel, 6-bit dual-channel, 8-bit dual-channel). Support maximum resolution 1920x1080, support 7"-84" display |
| MIPI interface | |
| EDP interface | |
| Screen voltage | Support 3.3V/5V/12V optional |
| Touch screen |
Provide I2C interface (can support multi-point resistive touch, multi-point capacitive touch). Support USB multi-point infrared touch, multi-point acoustic wave touch, multi-point optical touch. |
|
The internet
|
With RJ45 interface, support 10/100/1000M Ethernet. |
| Equipped with WIFI &BT module, supporting Wi-Fi 802.11b/g/n protocol. Support BT4.0 | |
| Image rotation | Support 0-degree, 90-degree, 180-degree, 270-degree manual/auto rotation, support gravity sensor function |
| Real Time Clock | External real-time clock power supply battery |
|
Interface device
|
Support MIPI interface camera, up to 500W pixels |
| 4 USB HOST, 1 USB OTG (support usb camera@500W usb printer, U disk, mouse, keyboard, standard usb peripherals) | |
| 3 groups of serial ports. Support external serial device module (NFC module, printer, card reader, etc.) | |
| TF card, maximum support 32GB | |
| Class D power amplifier: 3W*2 8 ohms, support microphone | |
| HD 2.0 output | |
| Audio | MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, 3GPP format |
| Video | Support 4K 60fps H.265/H.264/VP9 video decoding. Support 1080P 100fps H.265/H.264 video encoding. Support 8M ISP, support HDR. |
| Picture | Support JPG, BMP, PNG and other image format browsing and support rotation/slide show/picture zoom function |
| Power Adapter | Input: AC100-240V.50-60HZ, output: DC12V 3A |
Basic software specifications:
| Operating system | Android 11 system |
| Basic software functions | Web browsing, web chat, email, e-book, resource manager |
| Sound effect mode | Clock, alarm clock, calculator, recording |
| Language support | Multi-lingual |
| Recording | Support MP3, WMA format recording |
|
Tool
|
Calendar |
| Alarm Clock | |
| Calculator | |
| Note | |
| Weather + clock | |
| Recording | |
| Word processing | EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT |
| E-book | PDF/TXT/CHM/DOC/EXCEL/EPUB/RTF/FB2 |
| Schedule | Calendar |
| Input | Standard Android keyboard, optional third-party input method (Chinese, Korean, Japanese, etc.) |
|
Network
|
Browser -Chrome Lite |
| GOOGLE Market | |
| Gmail | |
| Google talk | |
| System Management | Support OTA remote upgrade, U disk upgrade, SD upgrade (silent installation) |
| Original ecological Android system, open root permission, can carry out product customization development | |
| Customizable local or remote server management system | |
| Support a variety of third-party Android remote advertising systems | |
| Support multiple serial devices, USB devices | |
| Support dual-screen different display |
SUNCHIP: Digital Signage manufacturer in Shenzhen, China.
Our main products include Android ARM Board, Floor Standing Display, Wall Mounted Display, Stretched LCD Display, Open Frame Display and Android Media Player Advertising Box.
LOOKING FORWARD TO YOUR INQUIRY AND KIND COOPERATIONS!
WELCOME TO INQUIRE ME~
Application Field
■ Commercial advertising display machine
■ POS machine
■ Digital photo frame advertising machine
■ Touch all-in-one machine
■ Self-service vending machine
Service:
1. PCBA design
2. Housing design
3. Software and hardware customization
4. Logo print on housing
5. Software customization: Booting image, Boot animation,UI, Launcher, APP, Function
6. Good quality products
7. full after-sales service with technology support
8.100% QC check before shipping
SUNCHIP is an OEM / ODM factory, customizing products to tailor your needs is our strength and mission, over 130 employees’ team that including over 70 research and development engineers, who can provide services and solutions in electronic Android mainboard design for digital signage industries and domains as it is becoming a critical function in the product development life cycle, diverse categories of embedded systems such as industrial automation, consumer electronics, embedded digital signage devices and exhibition display screen.
We focus on Rockchip chipsets solution and in-depth development, also deep customization of Android OS; Specialized on LCD Digital Signage & Android ARM Board.
Sunchip is a national high-tech enterprise with various patents. Our factory runs under the ISO 9001 & ISO 14001 certification. Our products fully completely with CE, RoHS and FCC certifications.
Sunchip has become the ODM / OEM partner of a number of world-class companies. Our products have been exported to over eighty worldwide countries.We do the best we can consistently to provide excellent quality products and one-stop services for all customers.
We are looking forward to cooperating, developing and growing with you sincerely.
We mainly manufacture
1, Android industrial Embedded board: RK3588, RK3566, RK3568, RK3288, RK3399,
RK3328, RKPX30, RK3188, RK3128 etc.
2, 【4K】Android media player box for digital signage advertising: RK3399, RK3288, RK3328.
3, 【8K】Android Player Box for Industrial-Control Application: RK3588.
4, Stretched lcd Display signage, support ODM.
5, Open frame LCD display signage: 8inch, 10.1inch, 13.3inch, 15.6inch, 21.5inch etc.
6, SKD Kit: Android board + LCD panel with touch or not:
7inch, 8inch, 10.1inch, 13.3inch, 15.6inch.
7, Other types of Wall Mounted / Floor Standing / Desktop LCD digital signage.
8, Embedded touch desk: such as 32inch.
9, Face recognition temperature detection terminal machine: such as 8inch.
[you can also tell us your requirements, so that we advise you a matched solution]
