|CPU:||Rockchip3188 Quad Core||Diaplay Interface:||LVDS(single, 6 Dual, 8 Dual)|
|EDP Screen Interface:||Support Resolution 1920*1080P||Touch Screen:||I2C Interface|
|Internet:||RJ45 Interface, Support 10M/100M Ethernet||OS:||Android 4.4 Or Above|
Quad Core Embedded Linux Board,
Embedded Linux Board RK3188,
RK3188 System Board

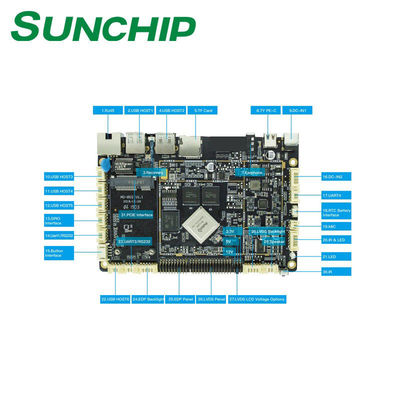

Quad Core Embedded Linux Board RK3188 system board For LCD Display
1. High performance. RK3188 chip using quad-core A9 program, it’s currently on the market one of the most powerful quad-core chip. Using the chip RK3188 motherboard program, compared to the common market of single-core, dual-core, quad-core program, a qualitative leap in performance, to play a variety of formats HD video, can handle complex interactive operation.
2. High stability. RK3188 Andrews board, in the hardware, software, to increase their own unique technology to ensure product stability, can make the final product to 7 * 24 hours unattended.
3. Highly integrated. RK3188 Andrews integrated board integrated Ethernet, wifi, Bluetooth, amplifier, SD card, 3G data interface, backlight power supply and so on, greatly simplifying the machine design. Ultra-thin motherboard design, make the machine design more beautiful.
4. High scalability. Four USB ports, three serial ports, can expand more peripherals.
Basic hardware specifications:
|CPU||RockChip RK3188 quad core Cortex-A9 quad core GPU Mail-400 @ 533MHz|
|RAM||DDR3 1G/2G Optional|
|Built-in storage capacity||EMMC FLASH 8GB/16G/32G Optional(label 8GB,usable NAND)|
|DIF||LVDS interface(Single, 6-way, 8-way dual).Support maximum resolution 1920x1080, support 7 "-82" display.|
|Mainboard backlight||Support 3.3V/5V/12V Optional|
|Touch screen||Provide I2C interface (can support multi-point resistance touch, multi-point capacitive touch).Support USB multi-point infrared touch, multi-point sound saw touch, multi-point optical touch.|
|Network||Have RJ45 interface,support Ethernet.|
|Have wifi&BT module,support Wi-Fi 802.11b/g/nprotocol.Support hold BT4.0|
|Have 3G data function,support WCDMA,EVDO,CDMA,GSM),2G/3GFull spectrum support 850/900/1800/1900MHz/2100MHz|
|Image rotation||Support 0 degree,90 degree,180 degree,270 degrees manual / automatic rotation, support gravity sensing function.|
|Real Time Clock||Built-in real-time clock powered battery|
|System watchdog||Support software, hardware watchdog|
|Interface device||Support DVP interface camera, the maximum support 500W pixels|
|Support USB camera, the maximum support 800W pixels|
|3 USB HOST,1 USB OTG|
|3 groups of serial ports. Support external serial device module (3G module, NFC module, printer, card reader, etc.)|
|4 IO detection port|
|SD card, maximum support 32GB|
|D class Large built-in speakers,3W*2 8R|
|Support for microphones|
|Audio||MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP format|
|Video||Support H.264,VP8,RV,WMV,AVS,H.263,MPEG4 video formats such as 1080P decoding, YouTube and other online video, up to 1080P, HTML5 video playback, Flash10.1 play|
|Picture||Support JPG, BMP, PNG and other picture formats to browse and support the rotation / slide show / picture zoom|
|Power Adapter||Input AC100-240V.50-60HZ, output:DC12V 3A|
Basic software specifications:
|Operating system||Google Android 4.4|
|Basic software functions||Web browsing, web chat, e-mail, e-books, and resource managers|
|Sound mode||Clock, alarm clock, calculator, recording|
|Language support||Multiple languages|
|Recording||Support MP3,WMA format recording|
|Weather + clock|
|Document processing||EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT|
|Input method||Standard Andriod keyboard,Optional third party input method (Chinese, Korean, Japanese, etc.)|
|System Management||APK Installer|
|The original eco-Android system, open root privileges, can be customized product development.|
|Real-time remote monitoring, system crash since recovery, 7 * 24 hours unattended|
|Support OTA remote upgrade|
