Product Details:
|
| Touch Screen: | 10-point Capacitive Touch (optional) | Resolution: | 1280*800 |
|---|---|---|---|
| Viewing Angle: | 85/85/85/85 | Luminance: | 300cd/m2(optional) |
| CPU: | Rockchip RK-PX30 Quad-core Cortex-A35 | Display Size: | 8 Inch |
| Android OS: | Android 8.0 | RAM: | 1GB, Optional |
| ROM: | 8GB, Optional | Customize: | YES,LOW MOQ |
| Brand Name: | Sunchip | Place Of Origin: | China |
| Functions: | LAN, WIFI, BT, HD, 4G, Etc. | ||
| High Light: | PX30 Rockchip Interactive LCD Touch Screen,Android LCD Digital Signage,PX30 Rockchip LCD Digital Signage |
||

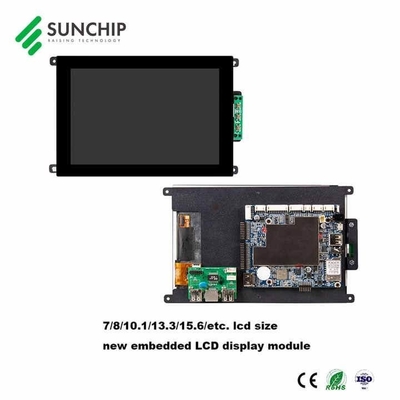

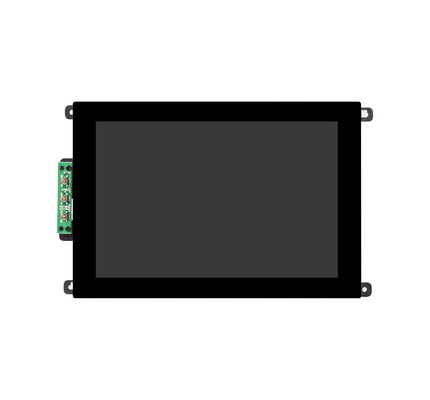

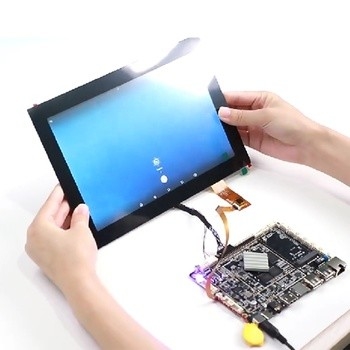

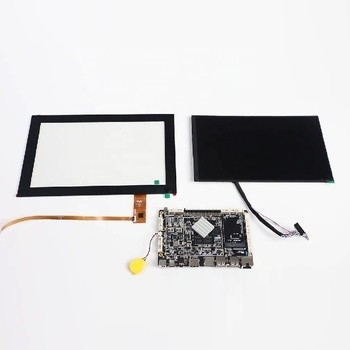

8 Inch Interactive LCD Touch Screen Android LCD Digital Signage SKD with PX30 Rockchip
Small/Medium size, Flexible & Easy-to-Modify Embedded LCD Solution
Features:
A. Support Dual LVDS; MIPI; display interface; support 7 inch to 10.1-inch Dual LVDS display interface (point-to-point full HD display 1920*1080).
B. Multiple interactive mode interfaces: capacitive touch, infrared touch, infrared remote control, USB mouse and keyboard, multi-point optical touch.
C. Multiple network interfaces: Ethernet, wireless Wi-fi, Bluetooth.
D. Multi-channel USB interface, serial port, IO port output.
E. Strong resistance to electromagnetic interference and electromagnetic compatibility.
PRODUCT INFORMATION:
| System | CPU | Rockchip RK-PX30 Quad-core Cortex-A35 Mali-G31 MP2 GPU | ||||||||||||
| Frequency | 1.5GHZ | |||||||||||||
| RAM | 1GB(optional) | |||||||||||||
| Internal Storage | 8GB(optional) | |||||||||||||
| Operating System | Android 8.0 | |||||||||||||
| Interaction Method | Touch Screen | 10-point capacitive touch (optional) | ||||||||||||
| Display | LCD panel | 8" HD IPS screen | ||||||||||||
| Resolution | 1280*800 | |||||||||||||
| Viewable Area | 172.22(H)x107.64mm(V) | |||||||||||||
| Viewing Angle | 89/89/89/89 | |||||||||||||
| Contrast Ratio | 1200 | |||||||||||||
| Luminance | 300cd/m2(optional) | |||||||||||||
| Aspect Ratio | 16:10 | |||||||||||||
| Network | WiFi | 802.11b/g/n | ||||||||||||
| Bluetooth | BLuetooth 4.0 | |||||||||||||
| Ethernet | 10M/100M network port | |||||||||||||
| Interface | USB_A*3 | USB host*3 | ||||||||||||
| Mini USB | Mini USB OTG | |||||||||||||
| SD card | SD card port*1, support 64G | |||||||||||||
| RJ45 | Ethernet port | |||||||||||||
| DC | DC power 12V input | |||||||||||||
| Headphone | 3.5mm stereo headphone output | |||||||||||||
| Media play | Video format | MPEG-1,MPEG-2,MPEG-4,H.263,H.264,VC1,RV etc.,support up to 1920x1080p | ||||||||||||
| Audio format | MP3/WMA/AAC etc. | |||||||||||||
| Image format | jpeg | |||||||||||||
| Other | UART | Support UART communication expansion port*3 groups | ||||||||||||
| Speaker | Support 5W*2 dual channel speaker interface 1 group | |||||||||||||
| Camera | Support MIPI camera interface a group of up to 8 million | |||||||||||||
| MIC | Support a set of MIC interface | |||||||||||||
| Battery | Built-in clock-powered battery | |||||||||||||
| Operating temperature | 0°C-50°C | |||||||||||||
| OSD language | Multiple languages | |||||||||||||
| Key | Supports three keys | Power button, volume +, volume - (default no keypad) | ||||||||||||
| Installation | Installation method | Screw fixing hole embedded installation (can be customized according to the actual use environment of customers) | ||||||||||||
| Accessories | Adapter | Power adapter 12V/2A | ||||||||||||
| Antenna | Built-in 2-in-1 WIFI/BT antenna | |||||||||||||
| Package | Neutral package |
|||||||||||||
PACKAGING DETAILS
- Packaging: film, foam and wooden case (international standard packaging), suitable for export.
- Lead time: in 1 week for sample order, about 4 weeks for large order.
After-sale Service
If any problems, you will get our reply within 24 hours. Solution will be offered instantly. We have professional technician to help solve any problem or direction during operating.
