Product Details:
|
| CPU: | RK3288 Quad Core | GPU: | Mali-T764 |
|---|---|---|---|
| EDP Screen Interface: | Support Resolution 1920*1080P | Touch Screen: | I2C Interface Or USB Port |
| Internet: | RJ45 Interface, Support 10M/100M Ethernet | OS: | Android 6.0-10.0 |
| USB: | USB2.0*2 | RAM: | 2GB, 4GB Optional |
| EMMC: | 16GB,32GB Optional | Application Scenarios: | Such As Computing Storage, Smart Robot, Game Equipment, Commercial Display, Medical Equipment, Vending Machine, Intelligent POS, Interactive Printer Etc. |
| High Light: | RK3288 Quad Core Board,Display Rk3288 Board,Screen Control RK3288 mainboard |
||
Sunchip Screen Control RK3288 quad core Board LVDS EDP HD USB WiFi BT LAN RJ45 for Display and vending POS machine
Summary
Smart All-in-one Industrial mainboard, which is based on Rockchip RK3288 Quad core chipset. It supports Android 6.0-10.0 OS. Reinforced power-management circult, supports attached devices. Ample interfaces, steady performance. It can be used in smart remote control, such as Industrial, medical, Advertise-machine, education video terminal etc.
Feature
Strong anti-electromagnetic interference and Electromagnetic compatibility

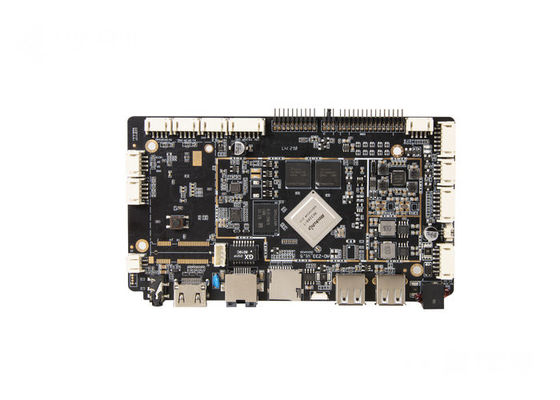

Product Picture
Sunchip-RK3288 High-Performance Platform
Sunchip-RK3288 is an all-in-one high-performance multi-core computing platform.
It features powerful graphics processing and video decoding ability, and support for Android 7-10 OS.
It will become extra ordinary with your creativity.
Basic specification of HW:
| CPU | Rockchip RK3288 Quad-Core Cortex-A17 Quad-Core GPU Mali-T764 |
| Frequency | 1.8 GHz |
| RAM | LPDDR3 2G/4G optional |
| Built-in storage capacity | EMMC 8GB/16G/32G/64G optional |
| Display interface | LVDS interface (single, 6-bit dual, 8-bit dual). Support maximum resolution 1920x1080, support 7"-84" display |
| EDP port | |
| Backlight Voltage | Support 3.3V / 5V / 12V optional |
| Touch screen |
Provides I2C interface (can support multi-point resistance touch, multi-point capacitive touch). Support USB multi-point infrared touch, multi-point sound wave touch, multi-point optical touch. |
| Internet | With RJ45 interface, support Ethernet. |
| With WIFI & BT module, support Wi-Fi 802.11b / g / n protocol. Support BT4.0 | |
| Image rotation | Support 0 degrees, 90 degrees, 180 degrees, 270 degrees manual / automatic rotation, support gravity sensing function |
|
Real Time Clock
|
Built-in real-time clock powered battery |
| Interface device | Support MIPI interface camera, up to 500W pixels |
| 4 USB HOST, 1 USB OTG (support USB camera@500W USB printer, U disk, mouse, keyboard, standard USB peripherals) | |
| 3 sets of serial ports. Support external serial device modules (NFC modules, printers, card readers, etc.) | |
| TF card, maximum support 32GB | |
| Class D amplifier: 3W*2 8 ohms, support microphone | |
| HDMI 2.0 output | |
| Audio | MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A,3GPP format |
| Video | Support H.264, VP8, RV, WMV, AVS, H.263, MPEG4 and other video formats 1080P decoding, YouTube and other online video, up to 1080P, HTML5 video playback, Flash10.1 play |
| Picture | Support JPG, BMP, PNG and other picture formats to browse and support the rotation / slide show / picture zoom |
| Power Adapter | Input:AC100-240V.50-60HZ, Output: DC12V 3A |
Basic Software specification
| Operating system | Android 6-10.0 |
| Basic software functions | Web browsing, web chat, email, e-books, explorer |
| Sound mode | Clock, Alarm, Calculator, Recording |
| Language support | multi-language |
| Recording | Support MP3,WMA format recording |
| Tool | Calendar |
| Alarm Clock | |
| calculator | |
| note | |
| weather + clock | |
| recording | |
| Document processing | EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT |
| E-book | PDF/TXT/CHM/DOC/EXCEL/EPUB/RTF/FB2 |
| Schedule | calendar |
| Input method | Standard Android keyboard, optional third-party input method (Chinese, Korean, Japanese, etc.) |
| Internet | Browser -Chrome Lite |
| GOOGLE Market | |
| Gmail | |
| Google talk | |
| System Management | Support OTA remote upgrade, U disk upgrade, SD upgrade (silent installation) |
| The original ecological Android system, open root permissions, can be customized for product development | |
| Customizable local or remote server management system | |
| Support a variety of third-party Android remote advertising publishing systems | |
| Support multi-channel serial devices, USB devices, IO control devices |
Application
RK3288 can be directly applied to a variety of products. Such as Computing Storage, Smart Robot, Game Equipment, Commercial Display, Medical Equipment, Vending Machine, Intelligent POS, Interactive Printer etc.
