Product Details:
|
| CPU: | Rockchip RK3288 Quad-Core Cortex-A17 Quad-Core | GPU: | GPU Mali-T764 |
|---|---|---|---|
| Diaplay Interface: | LVDS & EDP & HD | Touch Screen: | Supported |
| RAM: | LPDDR3 2G/4G Optional | EMMC: | EMMC 8GB/16G/32G/64G Optional |
| OS: | Android 7.1 Or Above | Network: | 2.4G WIFI (5G Wifi Optional) |
| Bluetooth: | 5.2 | LAN: | Support Ethernet |
| RTC: | YES | Support 4G Lte: | Yes, Available |
| Highlight: | WIFI Optional RK3288 Board,4G Optional RK3288 Board,BT Optional RK3288 Board |
||
(Model NO.:AD-Z33-V1.5)
Quad-Core High-Performance Board
Uses RK3288 quad-core Cortex-A17processor, supports 4K hardware decoding, has a rich expansion interface, as well as compatible with mainstream displays. It adopts the immersion gold processand has passed various pressure tests, which can be applied to the product directly.
High-performance Core Configuration
with RK3288 quad-core Cortex-A17 processor, frequency up to 1.8GHz, integrated quad-core Mali-T764 GPU. Its excellent performance makes products more possibilities.
Powerful Hardware Decoding Capability
It supports LVDS/EDP/HD-MI display interfaces, 4K hardware decoding, dual-screen identical display/dual-screen differential display, and can drive the mainstream 5~100 inch display directly.
The big board of intelligent industrial all-in-one machine adopts Rockchip RK3288 quad-core chip solution. Support Android8.0 and above system. Enhanced power management circuitry. Support common external devices. Rich interfaces and stable performance. Suitable for intelligent remote network control: industrial, medical, large advertising machines, educational video terminals and other equipment.
■Supports various LVDS interface displays from 7 inches to 84 inches
(point-to-point full HD display 1920*1080).
■Support EDP interface display.
■Multiple interactive mode interfaces:
capacitive touch, infrared touch, infrared remote control, USB mouse and keyboard, multi-point optical touch.
■Multiple network interfaces: Ethernet, Wireless Wifi, Bluetooth.
■Multi-channel USB interface, serial port.
■Strong anti-electromagnetic interference and electromagnetic compatibility.
| CPU | Rockchip RK3288 Quad-Core Cortex-A17 Quad-Core GPU Mali-T764 |
| Frequency | 1.8 GHz |
| RAM | LPDDR3 2G/4G optional |
| Built-in storage capacity | EMMC 8GB/16G/32G/64G optional |
| Display interface | LVDS interface (single, 6-bit dual, 8-bit dual). Support maximum resolution 1920x1080, support 7"-84" display |
| EDP port | |
| Backlight Voltage | Support 3.3V / 5V / 12V optional |
| Touch screen |
Provides I2C interface (can support multi-point resistance touch, multi-point capacitive touch). Support USB multi-point infrared touch, multi-point sound wave touch, multi-point optical touch. |
| Internet | With RJ45 interface, support Ethernet. |
| With WIFI & BT module, support Wi-Fi 802.11b / g / n protocol. Support BT4.0 | |
| Image rotation | Support 0 degrees, 90 degrees, 180 degrees, 270 degrees manual / automatic rotation, support gravity sensing function |
|
Real Time Clock
|
Built-in real-time clock powered battery |
| Interface device | Support MIPI interface camera, up to 500W pixels |
| 4 USB HOST, 1 USB OTG (support USB camera@500W USB printer, U disk, mouse, keyboard, standard USB peripherals) | |
| 3 sets of serial ports. Support external serial device modules (NFC modules, printers, card readers, etc.) | |
| TF card, maximum support 32GB | |
| Class D amplifier: 3W*2 8 ohms, support microphone | |
| HD-MI 2.0 output |
| Audio | MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A,3GPP format |
| Video | Support H.264, VP8, RV, WMV, AVS, H.263, MPEG4 and other video formats 1080P decoding, YouTube and other online video, up to 1080P, HTML5 video playback, Flash10.1 play |
| Picture | Support JPG, BMP, PNG and other picture formats to browse and support the rotation / slide show / picture zoom |
| Power Adapter | Input:AC100-240V.50-60HZ, Output: DC12V 3A |
| Operating system | Android 7.1 and above |
| Basic software functions | Web browsing, web chat, email, e-books, explorer |
| Sound mode | Clock, Alarm, Calculator, Recording |
| Language support | multi-language |
| Recording | Support MP3,WMA format recording |
| Tool | Calendar |
| Alarm Clock | |
| calculator | |
| note | |
| weather + clock | |
| recording | |
| Document processing | EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT |
| E-book | PDF/TXT/CHM/DOC/EXCEL/EPUB/RTF/FB2 |
| Schedule | calendar |
| Input method | Standard Android keyboard, optional third-party input method (Chinese, Korean, Japanese, etc.) |
| Internet | Browser -Chrome Lite |
| GOOGLE Market | |
| Gmail | |
| Google talk | |
| System Management | Support OTA remote upgrade, U disk upgrade, SD upgrade (silent installation) |
| The original ecological Android system, open root permissions, can be customized for product development | |
| Customizable local or remote server management system | |
| Support a variety of third-party Android remote advertising publishing systems | |
| Support multi-channel serial devices, USB devices, IO control devices |

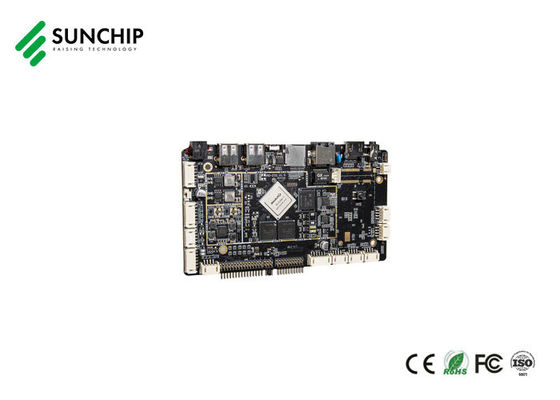

Android board images:
Application Scenarios:
3288 can be directly applied to a variety of products. Such as Computing Storage, Smart Robot, Game Equipment, Commercial Display, Medical Equipment, Vending Machine, Intelligent POS, Interactive Printer etc.
Support 4G lte network:
Sunchip introduction:
SUNCHIP mainly manufactures:
1, Android industrial Embedded ARM board: RK3588, RK3566, RK3568, RK3288, RK3399,
RK3328, RKPX30, RK3188, RK3128 etc.
2, 【4K】Android player box for digital signage advertising: RK3399, RK3288, RK3328 & RK3568.
3, 【8K】Android Player Box for Industrial-Control Application: RK3588.
4, Open frame LCD display signage: 8inch, 10.1inch, 13.3inch, 15.6inch, 21.5inch etc.
5, SKD Kit: Android board + LCD panel with touch or not:
7inch, 8inch, 10.1inch, 13.3inch, 15.6inch.
6, Other types of Wall Mounted / Floor Standing / Desktop LCD digital signage.
7, Embedded touch desk: such as 32inch.
8, Face recognition temperature detection terminal machine: such as 8inch.
[You can also tell us your detailed requirements, so that we advise you a matched solution]
