Rockchip RK3566 Develop Board ARM LVDS MIPI EDP Android Motherboard

Rockchip RK3566 Develop Board ARM LVDS MIPI EDP Android Motherboard
Rockchip RK3566 Develop Board ARM LVDS MIPI EDP Android Motherboard
Rockchip RK3566 Develop Board ARM LVDS MIPI EDP Android Motherboard Rockchip RK3566 Develop Board ARM LVDS MIPI EDP Android Motherboard Rockchip RK3566 Develop Board ARM LVDS MIPI EDP Android Motherboard

Large Image :  Rockchip RK3566 Develop Board ARM LVDS MIPI EDP Android Motherboard

Product Details:
Place of Origin: CHINA
Brand Name: SUNCHIP, ADW
Certification: CE FCC ROHS ISO9001
Model Number: AD-C36
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Negotiable
Packaging Details: Electrostatic bag for boards;
Delivery Time: Samples: 1-3 days; MP: 25 days;
Payment Terms: T/T, Western Union, PayPal
Supply Ability: 100000PCS/Month

Rockchip RK3566 Develop Board ARM LVDS MIPI EDP Android Motherboard

Product Name: Android Embedded ARM Board Cpu: Rockchip RK3566
Operating System: Android 11.0 Core: Quad-core A55, Up To 1.8GHz
RAM: 2G /4G DDR4 ROM: EMMC 16G/32G/64G Optional
Display: HD, LVDS, EDP, MIPI LAN: 10/100M Ethernet
WIFI AND BT: 2.4G WIFI & BT4.0 4G LTE: 4G Network Optional
G-Sensor: Auto-rotation & Rotate Manually USB Ports: Internal USB *4 + External USB *2
High Light:

RK3566 Develop Board


MIPI Android Motherboard


EDP Android Motherboard

Single Board Computer Sbc Rockchip RK3566 Develop Board Arm Lvds Mipi EDP Android Motherboard



Summary up:

Model: AD-C36

Product Name: Android 11 Embedded ARM Board

Application Scenario: Industrial, Medical, Advertising machine, LCD digital signage, Education etc.


-CPU: Rockchip RK3566 Quad-core A55, up to 1.8GHz


-ROM: EMMC 16G/32G/64G optional

-OS: Android 11



About RK3566 CHIP:

-Quad-core Cortex-A55
-Mali-G52 GPU
-4KP60 H.265/H.264/VP9 video decoder
-1080P60 H.264/H.265 video encoder

-1x8ch I2S/TDM, 1x8ch PDM, 2x2ch I2S


About AD-C36:


-LAN: 10/100M Ethernet

-WIFI/BT: 2.4G WIFI & BT4.0

-4G LTE: 4G Network Optional

-G-sensor: Auto-rotation & rotate manually

-RTC: Real-Time-Clock

-Touch: I2C and USB TP

-Serial ports: UART *3

-USB: internal USB *4 + external USB *2

-Extended Storage: TF Card Slot *1

-TYPE-C: OTG port




Product Model:




Product Overview:

  • Intelligent industrial all-in-one large board, using Rockchip RK3566 quad-core chip solution.
  • Support Android 11 system. Enhanced power management circuit.
  • Support common external devices.
  • Rich interface and stable performance.
  • Suitable for intelligent remote network control: class industrial, medical, large advertising machines, educational video terminals and other equipment.




Product Characteristic:

  • Support MIPI interface display + EDP interface display + LVDS interface display + HDMI 2.0 (4K display)
  • Multiple interaction mode interface: capacitive touch, infrared touch, USB keyboard and mouse, multi-point optical touch.
  • Multiple network interfaces: Ethernet, wireless Wifi, Bluetooth.
  • Multiple USB ports, serial ports.
  • Strong resistance to electromagnetic interference and electromagnetic compatibility.



Product Specifications:


Basic hardware specifications:


CPU Rockchip RK3566 Quad-core A55 architecture
Main frequency 1.8GHz
GPU ARM Mali-G52 2EE
OpenGL ES 1.1/2.0/3.2
Vulkan 1.1
OpenCL 2.0
Embedded with high performance 2D acceleration hardware
NPU 1TOPS computing power, support int8/int16
Built-in storage capacity EMMC 16G/32G/64G optional
Display Interface HDMI2.0(maximum support 4K@60FPS)
MIPI display interface (MIPI and LVDS can only be selected as one)
LVDS display interface (MIPI and LVDS can only be selected as one)
EDP display interface
Screen voltage 3.3V/5V/12V optional




Touch screen

Provide I2C interface (can support multi-point resistive touch, multi-point capacitive touch)

Support USB multi-point infrared touch, multi-point acoustic touch, multi-point optical touch.

Network With RJ45 interface, support 10/100M Ethernet.
With Wifi & BT module, support Wi-Fi 802.11b/g/n protocol. Support BT4.0
Image rotation Support 0 degrees, 90 degrees, 180 degrees, 270 degrees manual / automatic rotation, support gravity sensing function
Real-time clock Built-in real-time clock powered battery
Interface device Support MIPI interface camera, support up to 500W pixels
4 USB HOST 2.0, 1 USB HOST3.0, 1 USB OTG (support usb camera @ 500W usb printer, USB stick, mouse, keyboard standard usb peripherals)
2 groups of serial ports, support external serial device modules (NFC modules, printers, card swipes, etc.)
TF card, supports up to 32GB
Class D amplifier: 3W*2 8 ohms, microphone support



Support H.265/H.26/VP9 video decoding, up to 4K60FPS

Support H.264/H.265 video encoding, up to 4K30FPS

Picture Support JPG, BMP, PNG and other image formats to browse and support rotation / slideshow / image zoom function
Power adapter Input:AC100-240V.50-60HZ, output: DC12V 3A(Internal positive and external negative)



Basic software specifications:


Operating system Android 11 and above
Basic software functions Web browsing, web chat, email, e-book, resource manager
Sound mode Clock, alarm clock, calculator, recording
Language multi-lingual
recording Support MP3, WMA format recording
Tool Calendar
Alarm Clock
Weather + clock
schedule Calendar
Input Standard Android keyboard, optional third-party input method (Chinese, Korean, Japanese, etc.)
Internet Browser -Chrome Lite
Google talk
System Management Support OTA remote upgrade, U disk upgrade, SD upgrade (silent installation)
Original Android system with open root access for product customization and development
Customizable local or remote server management system
Support multiple third-party Android remote ad distribution systems
Support multi-channel serial devices, USB devices, IO control devices


Product Images:

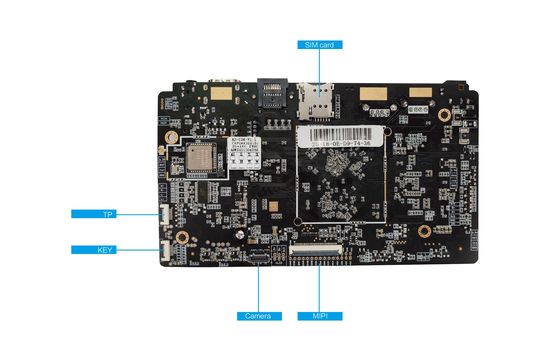

Rockchip RK3566 Develop Board ARM LVDS MIPI EDP Android Motherboard 0

Rockchip RK3566 Develop Board ARM LVDS MIPI EDP Android Motherboard 1Rockchip RK3566 Develop Board ARM LVDS MIPI EDP Android Motherboard 2







Product Size: 150*85mm
Packed with static bag
Rockchip RK3566 Develop Board ARM LVDS MIPI EDP Android Motherboard 3
