Product Details:
|
| CPU: | RK3588 8-core CPU 8nm Process 4 Cortex-A76 And 4 Cortex-A55 | OS: | Android 12 |
|---|---|---|---|
| USB3.0: | X 4 | RAM: | 8GB/16G (optional) |
| Display Port: | HD, DP, LVDS, | Material: | Metal Case |
| LAN: | Support 1000M Wired Network Network*2 | 4G LTE: | Support Wireless 4G Network |
| Highlight: | 8K Industrial Control Box,RS485 DP HD Mini PC,Android 12 Industrial Control Box |
||

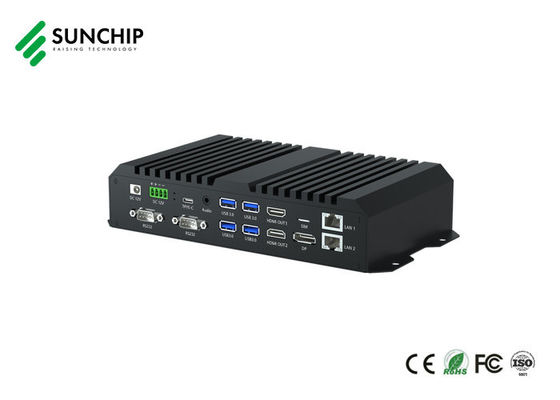

Product Model: AD-0160 BOX
Product Name: RK3588 Edge Computing Device
Main Features:
Product Features:
Product OverView:
Product Specification:
| System | CPU | RK3588 8-core CPU 8nm process 4 Cortex-A76 and 4 Cortex-A55 |
| GPU | ARM Mali G610 MP4 GPU | |
| NPU | 6Tops, int4/int8/int16/FP16 | |
| MCU | for low power control | |
| RAM | 8GB/16G (optional) | |
| Memory | 32GB/64GB/128GB/256GB (optional) | |
| Operating System | Android 12 | |
| Network | WiFi | IEEE 802.11 a/b/g/n/ac |
| Dual wired network | Support 1000M wired network network*2 | |
| Mobile Network | Support wireless 4G network | |
| Bluetooth | BT5.0 | |
| Motherboard Interface | TYPE_C | Standard Type_C*1 |
| DC holder*1 | Front 5.5/2.5mm | |
| DC terminal input interface*1 | 4PIN pitch 3.81 terminal power input port*1 | |
| Headphones | 3.5MM support stereo with MIC headphone output port | |
| USB 3.0 | USB 3.0_A port*2 | |
| HDMI_OUT A port | Support HDMI 2.1 _OUT*1 (maximum support 7680*4320 60HZ output for single HDMI display) | |
| SIM card | SIM card port*1 | |
| Wired network port | RJ45 network port*1 | |
| Horn | Dual channel 4 Europe 5W speaker interface 4PIN spacing 3.81 green terminals * 1 | |
| HDMI_IN | Support HDMI 2.0_4K input*1 | |
| Sub-board interface | RS232 COM port | RS232 output port DB9*2 |
| USB 3.0 | USB 3.0_A port*2 | |
| HDMI_OUT A port | Support HDMI 4K60HZ output*1 | |
| DP display interface | DP display output interface*1 7680x4320@30Hz output*1 | |
| Wired network port | RJ45 network port*1 | |
| M.2 internal SSD interface | M.2 built-in SSD expansion interface*1 | |
| RS485 | RS485 3PIN pitch 3.81 green terminal block*1 | |
| Environmental parameters | General working temperature/humidity | -20℃-60℃, 30%RH-60%RH |
| General storage temperature/humidity | 22±4℃ , 30%RH-60%RH | |
| Housing | Color | Black |
| Material | Profile | |
| Size | Motherboard Size | 200*125mm |
| Sub-board size | 200*125mm | |
| Whole machine size | 244*128*49.5mm | |
| Other | Indicator light | Red and blue 2 colors |
| Button | Upgrade key*1 | |
| Power adapter | DC:12V/3A |
Product Pictures:
About SUNCHIP:
SUNCHIP product list:
1, Android industrial Embedded board: RK3588, RK3566, RK3568, RK3288, RK3399,
RK3328, RKPX30, RK3188, RK3128 etc.
2, 【4K】Android media player box for digital signage advertising: RK3399, RK3288, RK3328.
3, 【8K】Android Player Box for Industrial-Control Application: RK3588.
4, Stretched lcd Display signage, support ODM.
5, Open frame LCD display signage: 8inch, 10.1inch, 13.3inch, 15.6inch, 21.5inch etc.
6, SKD Kit: Android board + LCD panel with touch or not:
7inch, 8inch, 10.1inch, 13.3inch, 15.6inch.
7, Other types of Wall Mounted / Floor Standing / Desktop LCD digital signage.
8, Embedded touch desk: such as 32inch.
9, Face recognition temperature detection terminal machine: such as 8inch.
