|CPU:||RK3399 Six Core Dual Core Cortex A72+quad Core Cortex A53||GPU:||Mali-T860 MP4|
|LVDS Diaplay Interface:||Single-channel, 6-bit Dual-channel, 8-bit Dual-channel). Support Maximum Resolution 1920x1080, Support 7"-84" Display||EDP Interface:||Support Resolution 1920*1080P,maximum Resolution 4K|
|Touch Screen:||I2C Interface , USB Touch||RJ45:||Support 10/100 Ethernet|
|WIFI/BT:||Supporting Wi-Fi 802.11a/b/g/n/ Ac Protocol. Support BT4.0||Image Rotation:||Support 0 Degree, 90 Degree, 180 Degree, 270 Degree Manual/auto Rotation, Gravity Sensor Function (optional)|
RK3399 Android Mainboard,
EDP LVDS Android Mainboard,
RK3399 Android RAM board

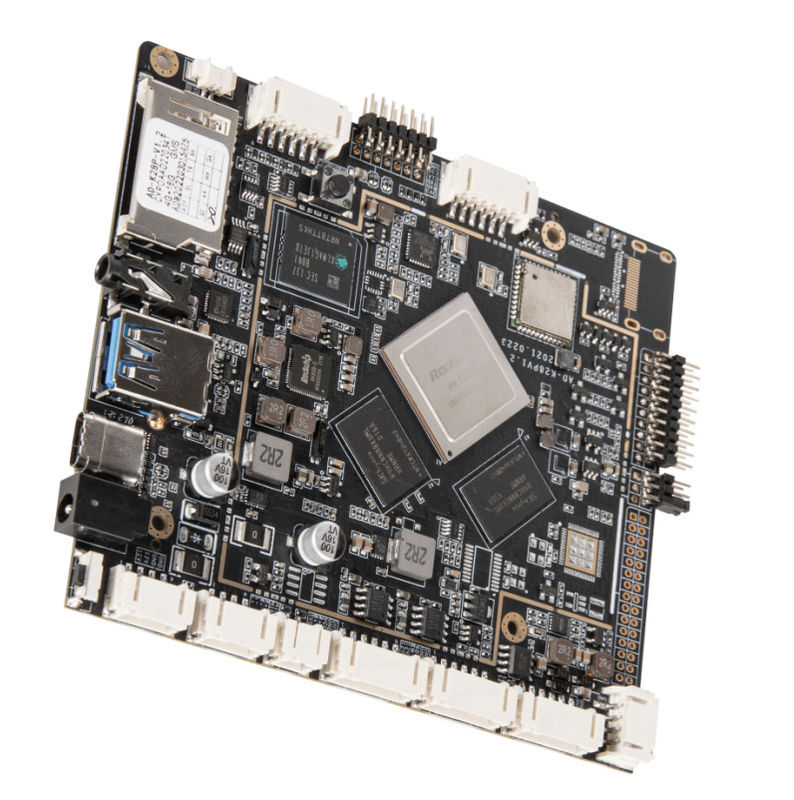

The Intelligent industrial all in one board, using Rockchip RK3399 six-core chip program, support Google Android7.1 or higher system. Powerful computing power. Support H.265 4K video playback. Rich interface and enhanced power management circuit. Suitable for intelligent remote network control: industrial, medical, large advertising, educational video terminals and other equipment.
1. It also supports 7-inch to 84-inch LVDS interface displays (point-to-point full HD display 1920*1080) and EDP interface display.
2. Multiple interactive mode interfaces: capacitive touch, infrared touch, infrared remote control, USB mouse and keyboard, multi-point optical touch.
3. A variety of network interfaces: Ethernet, 4G, WIFI, Bluetooth.
4. Multi-channel USB interface, serial output.
5. Support 4K video play with HDMI 2.0 HD output.
6. Strong anti-electromagnetic interference and electromagnetic compatibility.
|CPU||Rockchip RK3399 dual-core Cortex-A72+ quad-core Cortex-A53 CPU|
|GPU||ARM Mali-T860MP4 GPU|
|Run and save||LPDDR4 4G|
|Built-in storage capacity||EMMC 8GB/16G/32G/64G optional (label 16GB)|
|Display interface||LVDS interface (single-channel, 6-bit dual-channel, 8-bit dual-channel). Support maximum resolution 1920x1080, support 7"-84" display|
|EDP screen interface, maximum resolution 4K|
|MIPI screen interface, maximum resolution 1920*1080|
|Screen voltage||Support 3.3V/5V/12V optional|
Provide I2C interface (multi-point capacitive touch)
Support USB multi-point capacitive touch, multi-point infrared touch, multi-point acoustic wave touch, multi-point optical touch
|Network||With RJ45 interface, support 10/100 Ethernet|
|Equipped with Wifi&BT module, supporting Wi-Fi 802.11a/b/g/n/ ac protocol. Support BT4.0|
|Image rotation||Support 0 degree, 90 degree, 180 degree, 270 degree manual/auto rotation, gravity sensor function (optional)|
|Real Time Clock||External real-time clock power supply battery|
|Interface device||Support MIPI interface camera|
|6 USB HOST (support usb camera@500W usb printer, U disk, mouse, keyboard and standard usb peripherals)|
|2 groups of UART, 1 group of SPI or 1 group of UART, 2 groups of SPI. Support external serial devices (NFC module, printer, card reader, etc.)|
|SD card, maximum support 64GB|
|Class D power amplifier: 3W*2 8 ohms, support microphone|
|HDMI 2.0 output|
|Audio||MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP Format|
|Video||Support H.264, MPEG2, VP6, VP8, MVC and other video formats 2160P@24FPS decoding. YouTube and other online videos, up to 4K, HTML5 video playback, Flash 10.1 playback|
|Picture||Support JPG, BMP, PNG, GIF and other image formats to browse and support rotation/image enlargement function|
|Power Adapter||Input: AC100-240V.50-60HZ, output: DC12V 3A|
Basic software specifications:
|Operating system||Android 9.0|
|Basic software functions||Web browsing, email, e-book, resource manager|
|Sound effect mode||Clock, alarm clock, calculator, recording|
|Voice support||Multinational voice|
|Recording||Support MP3, WMA format recording|
|Weather + clock|
|File processing||EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT|
|Input||Standard Andriod keyboard, optional third-party input method (Chinese, Korean, Japanese, etc.)|
|System Management||APK installer|
|The original ecological Android system, open root permissions, can be customized product development|
|Real-time remote monitoring, self-recovery from system crashes, 7*24 hours unattended|
|Support OTA remote upgrade|
