|CPU Solution:||RK3568 Quad-Core||OS:||ANDROID 11|
|DDR/EMMC:||2GB RAM/16GB ROM||Display Interface:||LVDS/EDP/MIPI/HD OUT For Display|
|Serial Port:||3*Serial Port (UART3, UART4, UART7)||WIFI/BT:||2.4G WIFI & BT 4.0|
|Ethernet:||10/100/1000M Ethernet||Function:||WIFI, BT, Wlan, Audio, Speaker,etc.|
Vending Machine Industrial Control Board,
4K LVDS Android ARM Board,
Rk3568 Android ARM Board

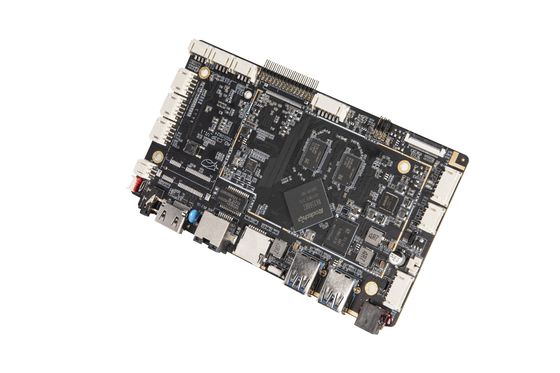

Vending Machine Industrial Control Boards Rk3568 Android Board Arm 4K Lvds Android 11 Board
Digital Signage RK3568 Android Motherboard Embedded Arm Board
Sunchip is a professional android board designer/manufacturer in Shenzhen, China.
We have a team that includes more than 150 people. In this team, R&D has more than 80 employees that involving hardware engineers (layout, debugging), software engineers (Driver, Kernel, testing, APK), ID designer and Mechanical Engineers.
Sunchip has more than 10-year experience on PCBA design and mass-production, also passed the ISO9001 certification. Our office &factory have more than 3500 square meters.
Sunchip can provide one-stop service, from PCB layout, prototype, production, PCBA SMT, testing, housing design, assembly, software customization, QC control, after-sale etc.
Quad-core RK3568 Android Decoding Driver Integrated Board Specification(Model No.:AD-C33P-V1.1)
■ Commercial advertising display machine
■ POS machine
■ Digital photo frame advertising machine
■ Touch all-in-one machine
■ Self-service vending machine
|CPU||Rockchip RK3568 quad-core 64-bit Cortex-A55, GPU Mali-G52|
|Main frequency||Up to 2.0 GHz|
|RAM||DDR4 2G/4G optional|
|Built-in storage capacity||EMMC 8GB/16G/32G/64G optional (label 16GB)|
|LVDS interface (single-channel, 6-bit dual-channel, 8-bit dual-channel). Support maximum resolution 1920x1080, support 7"-84" display|
|Screen voltage||Support 3.3V/5V/12V optional|
Provide I2C interface (can support multi-point resistive touch, multi-point capacitive touch).
Support USB multi-point infrared touch, multi-point acoustic wave touch, multi-point optical touch.
|With RJ45 interface, support 10/100/1000M Ethernet.|
|Equipped with WIFI &BT module, supporting Wi-Fi 802.11b/g/n protocol. Support BT4.0|
|Image rotation||Support 0-degree, 90-degree, 180-degree, 270-degree manual/auto rotation, support gravity sensor function|
|Real Time Clock||External real-time clock power supply battery|
|Support MIPI interface camera, up to 500W pixels|
|4 USB HOST, 1 USB OTG (support usb camera@500W usb printer, U disk, mouse, keyboard, standard usb peripherals)|
|3 groups of serial ports. Support external serial device module (NFC module, printer, card reader, etc.)|
|TF card, maximum support 32GB|
|Class D power amplifier: 3W*2 8 ohms, support microphone|
|HD 2.0 output|
|Audio||MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, 3GPP format|
|Video||Support 4K 60fps H.265/H.264/VP9 video decoding. Support 1080P 100fps H.265/H.264 video encoding. Support 8M ISP, support HDR.|
|Picture||Support JPG, BMP, PNG and other image format browsing and support rotation/slide show/picture zoom function|
|Power Adapter||Input: AC100-240V.50-60HZ, output: DC12V 3A|
Basic software specifications:
|Operating system||Android 11 system|
|Basic software functions||Web browsing, web chat, email, e-book, resource manager|
|Sound effect mode||Clock, alarm clock, calculator, recording|
|Recording||Support MP3, WMA format recording|
|Weather + clock|
|Word processing||EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT|
|Input||Standard Android keyboard, optional third-party input method (Chinese, Korean, Japanese, etc.)|
|Browser -Chrome Lite|
|System Management||Support OTA remote upgrade, U disk upgrade, SD upgrade (silent installation)|
|Original ecological Android system, open root permission, can carry out product customization development|
|Customizable local or remote server management system|
|Support a variety of third-party Android remote advertising systems|
|Support multiple serial devices, USB devices|
|Support dual-screen different display|
Rockchip RK3568 Solution: ANDROID 11 OS,
2GB RAM/16GB ROM, Only Main board (no Sub small board).
Quad-Core, LVDS/EDP/MIPI/HD OUT for display, 3*Serial Port (UART3, UART4, UART7),
2.4G WIFI & Bluetooth 4.0, 10/100/1000M Ethernet, Support 4G LTE MINI PCIE, 1*USB 3.0,
1*USB OTG, 3*4PIN USB, 12V/3A.
Support rotation by manually or automatically; RTC; Support touch;
WELCOME TO INQUIRY US ANY TIME. THANKS IN ADVANCE!
1. PCBA design
2. Housing design
3. Software and hardware customization
4. Logo print on housing
5. Software customization: Booting image, Boot animation,UI, Launcher, APP, Function
6. Good quality products
7. full after-sales service with technology support
8.100% QC check before shipping
Established in 2011, Shenzhen Sunchip Technology Co., Ltd. is a comprehensive enterprise integrating design, research, development and production in digital consumer electronics products and solution provider. Our factory is located in Baoan district, Shenzhen city, near with Baoan International airport, which has more than 3200 square meters of standardized office base. Our company has been committed to the R and D and innovation in the field of digital electronics, complete and scientific quality management system and professional R&D team, strong product research and development, production capacity and perfect service system, make the company always keep the lead in the related fields. We regards quality as life and already passed ISO international quality system certification ISO9001/ MFi / CE / RoHs / FCC.From raw materials procurement, product production, testing, packaging, marketing and so on each link are carried out in strict accordance with the national standard quality. Sunchip has a over 80 research and development engineers team,high efficiency sales team and competitive price superiority, and attract customers from all over the world, we export to over 40 countries, including USA, UK, Germany, Italy, Japan,Korea, Turkey, Russia, Mexico, Brazil, Thailand ,Middle east and South Africa. Our sales team attends major exhibitions every year to close the distance with customers. Based on the principle of customer first, sales engineers have assisted customers to complete many projects, which are well received by customers. We are looking forward to cooperating, growing and developing with you sincerely.
