8K HD Industrial Control Media Player Box Android 12.0 AI NPU 6T RK3588 Board AIoT Box

Certification
China Shenzhen Sunchip Technology Co., Ltd. certification
China Shenzhen Sunchip Technology Co., Ltd. certification
Customer Reviews
Awesome news! I know your team has worked hard, thanks for finish the project so quickly.

—— Brian Walker

I like your sample very much. Looking forward to growing our partnership

—— Jenny Westbrook

I'm Online Chat Now

8K HD Industrial Control Media Player Box Android 12.0 AI NPU 6T RK3588 Board AIoT Box

8K HD Industrial Control Media Player Box Android 12.0 AI NPU 6T RK3588 Board AIoT Box
8K HD Industrial Control Media Player Box Android 12.0 AI NPU 6T RK3588 Board AIoT Box
8K HD Industrial Control Media Player Box Android 12.0 AI NPU 6T RK3588 Board AIoT Box 8K HD Industrial Control Media Player Box Android 12.0 AI NPU 6T RK3588 Board AIoT Box 8K HD Industrial Control Media Player Box Android 12.0 AI NPU 6T RK3588 Board AIoT Box 8K HD Industrial Control Media Player Box Android 12.0 AI NPU 6T RK3588 Board AIoT Box 8K HD Industrial Control Media Player Box Android 12.0 AI NPU 6T RK3588 Board AIoT Box 8K HD Industrial Control Media Player Box Android 12.0 AI NPU 6T RK3588 Board AIoT Box

Large Image :  8K HD Industrial Control Media Player Box Android 12.0 AI NPU 6T RK3588 Board AIoT Box

Product Details:
Place of Origin: CHINA
Brand Name: SUNCHIP & ADW
Certification: CE FCC ROHS ISO9001 ISO14001
Model Number: AD-0160 BOX
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Negotiable
Packaging Details: Carton Box or Wooden Box
Delivery Time: Samples: 1-3 days; MP: 30 days;
Payment Terms: T/T, Western Union, PayPal
Supply Ability: 6000PCS/Month

8K HD Industrial Control Media Player Box Android 12.0 AI NPU 6T RK3588 Board AIoT Box

Description
CPU: RK3588 8-core CPU 8nm Process 4 Cortex-A76 And 4 Cortex-A55 GPU: ARM Mali G610 MP4 GPU
OS: Android 12 4G LTE: Support Wireless 4G Network
LAN: Support 1000M Wired Network Network*2 RAM: 8GB/16G (optional)
Material: Metal Case USB3.0: X 4
RS232: X 2 RS485: X 1
High Light:

8K Industrial Control Player Box

,

NPU 6T 8K Media Player Box

,

RK3588 Board Media Player Box

Octa Core 8K HD RK3588 AIoT Box 4GB+32GB Android 12.0 AI NPU 6T Industrial Control Player Box RK3588 Board



Product Model: AD-0160 BOX

Product Name: RK3588 Edge Computing Device

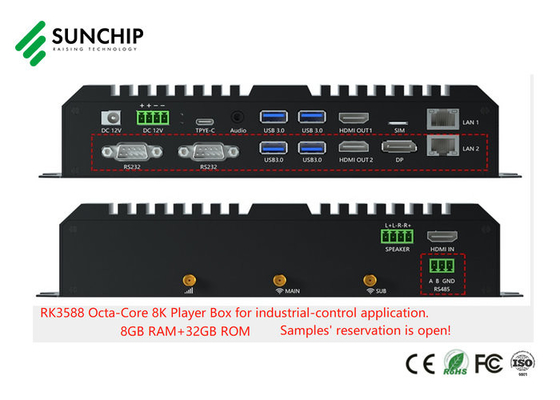

Based on Rockchip's new generation flagship RK3588 chip solution, AD-0160 , the first edge computing device were launched , with rich IO interfaces, display interface TYPE-C, DP, two HDMI outputs, one HDMI input, four USB3.0, RS485 interface, and dual RS232 interfaces, M.2 built-in SSD interface, dual-channel speaker interface, Dual-channel Gigabit Ethernet, supporting Wifi6, Bluetooth and 8K 60 fps visual display processing capability. Such of these hardware features suitable for edge computing, live broadcasters, intelligent remote network control, intelligent large screen, IPC, NVR and other devices.



Product OverView:

  • Intelligent industrial all-in-one large board, using Rockchip RK3588 octa-core chip solution.
  • Support Android 12 system. Enhanced power management circuit, support common external devices, rich interface, stable performance. 3, Suitable for intelligent remote network control: class industrial, medical, large advertising machines, educational video terminals and other equipment.





Main Features:

  • Octa-Core, 8K output, 4K hardware decoding;
  • Main frequency up to 2.4GhZ;
  • RK3588 performance is higher 3.3 times than RK3399
  • Android 12 OS;
  • Rich interfaces:
  • Network: 2.4G & 5G WIFI; Bluetooth 5.0; 4G LTE Optional; Dual 1000M LAN;
  • Build-in M.2 SSD Extended interface (SSD optional)







Product Features:

  • Support multiplexed display (single-port maximum support 7680*4320 60HZ)
  • Multiple interaction mode interface: capacitive touch, infrared remote control, USB keyboard and mouse, multi-point optical touch.
  • Multiple network interfaces: Ethernet, wireless WIFI, Bluetooth.
  • Multiple USB interfaces, RS3232, RS485 serial ports.
  • Strong resistance to electromagnetic interference and electromagnetic compatibility.







Product Specification:



System CPU RK3588 8-core CPU 8nm process 4 Cortex-A76 and 4 Cortex-A55
  GPU ARM Mali G610 MP4 GPU
  NPU INT4/INT8/INT16/FP16 mixed computing capability with up to 6TOPs of computing power (INT8)
  RAM 8GB/16G (optional)
  Memory 32GB/64GB/128GB/256GB (optional)
  Operating System Android 12



Network WiFi IEEE 802.11 a/b/g/n/ac
  Dual wired network Support 1000M wired network network*2
  Mobile Network Support wireless 4G network
  Bluetooth BT5.0



Motherboard Interface TYPE_C Standard Type_c*1
  DC holder*1 Front 5.5/2.5mm
  DC terminal input interface*1 4PIN pitch 3.81 terminal power input port*1
  Headphones 3.5MM support stereo with MIC headphone output port
  USB 3.0 USB 3.0_A port*2
  HDMI_OUT 1 Support HDMI 2.1 _OUT*1 (maximum support 7680*4320 60HZ output for single HDMI display)
  SIM card SIM card port*1
  Ethernet port Support 10/100/1000M Ethernet*1
  Horn Dual channel 4 Europe 5W speaker interface 4PIN spacing 3.81mm green terminals * 1
  HDMI_IN Support HDMI 2.0_4K input*1



Sub-board interface RS232 COM port RS232 output port DB9*2
  USB 3.0 USB 3.0_A port*2
  HDMI_OUT 2 HDMI 4K 60HZ output*1 (this interface does not work when HDMI_OUT 1 is selected to output 8K)
  DP display interface DP display output interface*1 7680x4320@30Hz output*1
  Ethernet port Support 10/100/1000M Ethernet*1
  M.2 internal SSD interface M.2 built-in SSD expansion interface*1
  RS485 RS485 3PIN pitch 3.81 green terminal block*1



Environmental parameters General working temperature/humidity Temperature:-20-60℃ Humidity 5%-85%RH(non-condensing)
  General storage temperature/humidity Temperature:-20-70℃ Humidity 5%-85%RH(non-condensing)
Housing Color Black
  Material Aluminum alloy + metal profile
Size Motherboard Size 200*125mm
  Sub-board size 200*125mm
  Whole machine size 244*128*49.5mm
Other Indicator light Red and blue 2 colors
  Button Upgrade key*1
  Power adapter DC:12V/3A





8K HD Industrial Control Media Player Box Android 12.0 AI NPU 6T RK3588 Board AIoT Box 0

8K HD Industrial Control Media Player Box Android 12.0 AI NPU 6T RK3588 Board AIoT Box 18K HD Industrial Control Media Player Box Android 12.0 AI NPU 6T RK3588 Board AIoT Box 2







About Sunchip :


SUNCHIP is an OEM / ODM factory, customizing products to tailor your needs is our strength and mission, over 130 employees’ team that including over 70 research and development engineers, who can provide services and solutions in electronic Android mainboard design for digital signage industries and domains as it is becoming a critical function in the product development life cycle, diverse categories of embedded systems such as industrial automation, consumer electronics, embedded digital signage devices and exhibition display screen.





We focus on Rockchip chipsets solution and in-depth development, also deep customization of Android OS; Specialized on LCD Digital Signage & Android ARM Board.





Sunchip is a national high-tech enterprise with various patents. Our factory runs under the ISO 9001 & ISO 14001 certification. Our products fully completely with CE, RoHS and FCC certifications.



Sunchip has become the ODM / OEM partner of a number of world-class companies. Our products have been exported to over eighty worldwide countries.We do the best we can consistently to provide excellent quality products and one-stop services for all customers.

We are looking forward to cooperating, developing and growing with you sincerely.





8K HD Industrial Control Media Player Box Android 12.0 AI NPU 6T RK3588 Board AIoT Box 3





We mainly manufacture



1, Android industrial Embedded board: RK3588, RK3566, RK3568, RK3288, RK3399,

RK3328, RKPX30, RK3188, RK3128 etc.

2, 【4K】Android media player box for digital signage advertising: RK3399, RK3288, RK3328.

3, 【8K】Android Player Box for Industrial-Control Application: RK3588.

4, Stretched lcd Display signage, support ODM.

5, Open frame LCD display signage: 8inch, 10.1inch, 13.3inch, 15.6inch, 21.5inch etc.

6, SKD Kit: Android board + LCD panel with touch or not:

7inch, 8inch, 10.1inch, 13.3inch, 15.6inch.

7, Other types of Wall Mounted / Floor Standing / Desktop LCD digital signage.

8, Embedded touch desk: such as 32inch.

9, Face recognition temperature detection terminal machine: such as 8inch.



[you can also tell us your requirements, so that we advise you a matched solution]
