Product Details:
|
| CPU: | RK3588 8-core CPU 8nm Process 4 Cortex-A76 And 4 Cortex-A55 | GPU: | ARM Mali G610 MP4 GPU |
|---|---|---|---|
| OS: | Android 12 | 4G LTE: | Support Wireless 4G Network |
| LAN: | Support 1000M Wired Network Network*2 | RAM: | 8GB/16G (optional) |
| Material: | Metal Case | USB3.0: | X 4 |
| High Light: | RS485 Industrial Mini PC,Industrial Control Box 8K,Rockchip RK3588 Industrial Control Box |
||
Product Model: AD-0160 BOX
Product Name: RK3588 Edge Computing Device

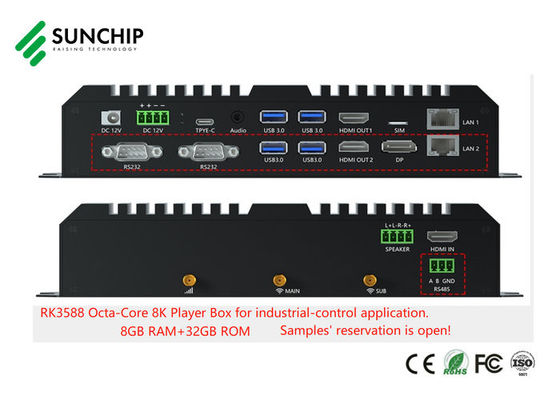

Based on Rockchip's new generation flagship RK3588 chip solution, AD-0160 , the first edge computing device were launched , with rich IO interfaces, display interface TYPE-C, DP, two HDMI outputs, one HDMI input, four USB3.0, RS485 interface, and dual RS232 interfaces, M.2 built-in SSD interface, dual-channel speaker interface, Dual-channel Gigabit Ethernet, supporting Wifi6, Bluetooth and 8K 60 fps visual display processing capability. Such of these hardware features suitable for edge computing, live broadcasters, intelligent remote network control, intelligent large screen, IPC, NVR and other devices.
Product OverView:
Main Features:
Product Features:
Product Specification:
| System | CPU | RK3588 8-core CPU 8nm process 4 Cortex-A76 and 4 Cortex-A55 |
| GPU | ARM Mali G610 MP4 GPU | |
| NPU | 6Tops, int4/int8/int16/FP16 | |
| MCU | for low power control | |
| RAM | 8GB/16G (optional) | |
| Memory | 32GB/64GB/128GB/256GB (optional) | |
| Operating System | Android 12 | |
| Network | WiFi | IEEE 802.11 a/b/g/n/ac |
| Dual wired network | Support 1000M wired network network*2 | |
| Mobile Network | Support wireless 4G network | |
| Bluetooth | BT5.0 | |
| Motherboard Interface | TYPE_C | Standard Type_C*1 |
| DC holder*1 | Front 5.5/2.5mm | |
| DC terminal input interface*1 | 4PIN pitch 3.81 terminal power input port*1 | |
| Headphones | 3.5MM support stereo with MIC headphone output port | |
| USB 3.0 | USB 3.0_A port*2 | |
| HDMI_OUT A port | Support HDMI 2.1 _OUT*1 (maximum support 7680*4320 60HZ output for single HDMI display) | |
| SIM card | SIM card port*1 | |
| Wired network port | RJ45 network port*1 | |
| Horn | Dual channel 4 Europe 5W speaker interface 4PIN spacing 3.81 green terminals * 1 | |
| HDMI_IN | Support HDMI 2.0_4K input*1 |
| Sub-board interface | RS232 COM port | RS232 output port DB9*2 |
| USB 3.0 | USB 3.0_A port*2 | |
| HDMI_OUT A port | Support HDMI 4K60HZ output*1 | |
| DP display interface | DP display output interface*1 7680x4320@30Hz output*1 | |
| Wired network port | RJ45 network port*1 | |
| M.2 internal SSD interface | M.2 built-in SSD expansion interface*1 | |
| RS485 | RS485 3PIN pitch 3.81 green terminal block*1 | |
| Environmental parameters | General working temperature/humidity | -20℃-60℃, 30%RH-60%RH |
| General storage temperature/humidity | 22±4℃ , 30%RH-60%RH | |
| Housing | Color | Black |
| Material | Profile | |
| Size | Motherboard Size | 200*125mm |
| Sub-board size | 200*125mm | |
| Whole machine size | 244*128*49.5mm | |
| Other | Indicator light | Red and blue 2 colors |
| Button | Upgrade key*1 | |
| Power adapter | DC:12V/3A |
SUNCHIP is an OEM / ODM factory, customizing products to tailor your needs is our strength and mission, over 130 employees’ team that including over 70 research and development engineers, who can provide services and solutions in electronic Android mainboard design for digital signage industries and domains as it is becoming a critical function in the product development life cycle, diverse categories of embedded systems such as industrial automation, consumer electronics, embedded digital signage devices and exhibition display screen.
We focus on Rockchip chipsets solution and in-depth development, also deep customization of Android OS; Specialized on LCD Digital Signage & Android ARM Board.
Sunchip is a national high-tech enterprise with various patents. Our factory runs under the ISO 9001 & ISO 14001 certification. Our products fully completely with CE, RoHS and FCC certifications.
Sunchip has become the ODM / OEM partner of a number of world-class companies. Our products have been exported to over eighty worldwide countries.We do the best we can consistently to provide excellent quality products and one-stop services for all customers.
We are looking forward to cooperating, developing and growing with you sincerely.
We mainly manufacture
1, Android industrial Embedded board: RK3588, RK3566, RK3568, RK3288, RK3399,
RK3328, RKPX30, RK3188, RK3128 etc.
2, 【4K】Android media player box for digital signage advertising: RK3399, RK3288, RK3328.
3, 【8K】Android Player Box for Industrial-Control Application: RK3588.
4, Stretched lcd Display signage, support ODM.
5, Open frame LCD display signage: 8inch, 10.1inch, 13.3inch, 15.6inch, 21.5inch etc.
6, SKD Kit: Android board + LCD panel with touch or not:
7inch, 8inch, 10.1inch, 13.3inch, 15.6inch.
7, Other types of Wall Mounted / Floor Standing / Desktop LCD digital signage.
8, Embedded touch desk: such as 32inch.
9, Face recognition temperature detection terminal machine: such as 8inch.
[you can also tell us your requirements, so that we advise you a matched solution]
