Sunchip Android Embedded ARM Board RTC UART POE LAN 1000M USB TF Pcb Circuit Motherboard

Sunchip Android Embedded ARM Board RTC UART POE LAN 1000M USB TF Pcb Circuit Motherboard
Sunchip Android Embedded ARM Board RTC UART POE LAN 1000M USB TF Pcb Circuit Motherboard Sunchip Android Embedded ARM Board RTC UART POE LAN 1000M USB TF Pcb Circuit Motherboard Sunchip Android Embedded ARM Board RTC UART POE LAN 1000M USB TF Pcb Circuit Motherboard Sunchip Android Embedded ARM Board RTC UART POE LAN 1000M USB TF Pcb Circuit Motherboard Sunchip Android Embedded ARM Board RTC UART POE LAN 1000M USB TF Pcb Circuit Motherboard

Large Image :  Sunchip Android Embedded ARM Board RTC UART POE LAN 1000M USB TF Pcb Circuit Motherboard

Product Details:
Place of Origin: CHINA
Brand Name: SUNCHIP, ADW
Certification: CE FCC ROHS ISO9001
Model Number: AD-C36
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Negotiable
Packaging Details: Electrostatic bag for boards;
Delivery Time: Samples: 1-3 days; MP: 25 days;
Payment Terms: T/T, Western Union, PayPal
Supply Ability: 100000PCS/Month

Sunchip Android Embedded ARM Board RTC UART POE LAN 1000M USB TF Pcb Circuit Motherboard

Description
Product Name: Android Embedded ARM Board Cpu: Rockchip RK3566 Quad-core A55, Up To 1.8GHz
Operating System: Android 11.0 Application Scenario: Industrial, Medical, Advertising Machine, LCD Digital Signage, Education Etc.
RAM: 2G DDR4 ROM: EMMC 16G/32G/64G Optional
Display: HD, LVDS, EDP, MIPI LAN: 10/100M Ethernet
WIFI AND BT: 2.4G WIFI & BT4.0 4G LTE: 4G Network Optional
G-Sensor: Auto-rotation & Rotate Manually USB Ports: Internal USB *4 + External USB *2
Highlight:

Sunchip Android Embedded ARM Board

,

1000M Pcb Circuit Motherboard

,

2G DDR4 Embedded ARM Board





Sunchip Android Embedded ARM Board support industrial RTC UART POE LAN 1000M USB TF pcb circuit custom motherboard ADW





Summary up:



Product Name: Android Embedded ARM Board

Application Scenario: Industrial, Medical, Advertising machine, LCD digital signage, Education etc.



Model: AD-C36

CPU: Rockchip RK3566 Quad-core A55, up to 1.8GHz

RAM: 2G DDR4

ROM: EMMC 16G/32G/64G optional

OS: Android 11



Display: HD, LVDS, EDP, MIPI

LAN: 10/100M Ethernet

WIFI/BT: 2.4G WIFI & BT4.0

4G LTE: 4G Network Optional

G-sensor: Auto-rotation & rotate manually

RTC: Real-Time-Clock

Touch: I2C and USB TP



Serial ports: UART *3

USB: internal USB *4 + external USB *2

Extended Storage: TF Card Slot *1

TYPE-C: OTG port







Product Model:AD-C36-V1.1

Quad-core RK3566 Android Decoding Driver Integrated Board







Product Overview:

  • Intelligent industrial all-in-one large board, using Rockchip RK3566 quad-core chip solution.
  • Support Android 11 system. Enhanced power management circuit.
  • Support common external devices.
  • Rich interface and stable performance.
  • Suitable for intelligent remote network control: class industrial, medical, large advertising machines, educational video terminals and other equipment.







Product Characteristic:

  • Support MIPI interface display + EDP interface display + LVDS interface display + HDMI 2.0 (4K display)
  • Multiple interaction mode interface: capacitive touch, infrared touch, USB keyboard and mouse, multi-point optical touch.
  • Multiple network interfaces: Ethernet, wireless Wifi, Bluetooth.
  • Multiple USB ports, serial ports.
  • Strong resistance to electromagnetic interference and electromagnetic compatibility.









Product Images:

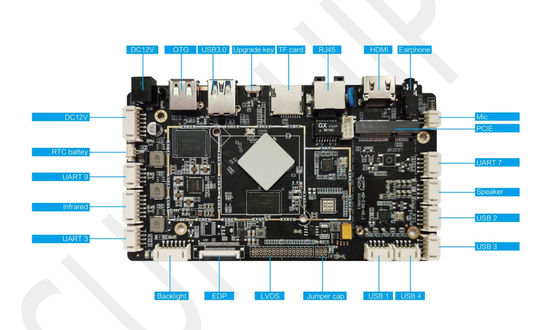

Sunchip Android Embedded ARM Board RTC UART POE LAN 1000M USB TF Pcb Circuit Motherboard 0

Sunchip Android Embedded ARM Board RTC UART POE LAN 1000M USB TF Pcb Circuit Motherboard 1











Product Specifications:



Basic hardware specifications:



CPU Rockchip RK3566 Quad-core A55 architecture
Main frequency 1.8GHz
GPU ARM Mali-G52 2EE
OpenGL ES 1.1/2.0/3.2
Vulkan 1.1
OpenCL 2.0
Embedded with high performance 2D acceleration hardware
NPU 1TOPS computing power, support int8/int16
RAM 2G DDR4
Built-in storage capacity EMMC 16G/32G/64G optional
Display Interface HDMI2.0(maximum support 4K@60FPS)
MIPI display interface (MIPI and LVDS can only be selected as one)
LVDS display interface (MIPI and LVDS can only be selected as one)
EDP display interface
Screen voltage 3.3V/5V/12V optional







Touch screen

Provide I2C interface (can support multi-point resistive touch, multi-point capacitive touch)

Support USB multi-point infrared touch, multi-point acoustic touch, multi-point optical touch.

Network With RJ45 interface, support 10/100M Ethernet.
With Wifi & BT module, support Wi-Fi 802.11b/g/n protocol. Support BT4.0
Image rotation Support 0 degrees, 90 degrees, 180 degrees, 270 degrees manual / automatic rotation, support gravity sensing function
Real-time clock Built-in real-time clock powered battery
Interface device Support MIPI interface camera, support up to 500W pixels
4 USB HOST 2.0, 1 USB HOST3.0, 1 USB OTG (support usb camera @ 500W usb printer, USB stick, mouse, keyboard standard usb peripherals)
2 groups of serial ports, support external serial device modules (NFC modules, printers, card swipes, etc.)
TF card, supports up to 32GB
Class D amplifier: 3W*2 8 ohms, microphone support



Audio MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A,3GPP
Video

Support H.265/H.26/VP9 video decoding, up to 4K60FPS

Support H.264/H.265 video encoding, up to 4K30FPS

Picture Support JPG, BMP, PNG and other image formats to browse and support rotation / slideshow / image zoom function
Power adapter Input:AC100-240V.50-60HZ, output: DC12V 3A(Internal positive and external negative)





Basic software specifications:



Operating system Android 11 and above
Basic software functions Web browsing, web chat, email, e-book, resource manager
Sound mode Clock, alarm clock, calculator, recording
Language multi-lingual


recording Support MP3, WMA format recording
Tool Calendar
Alarm Clock
Calculator
Note
Weather + clock
Recording
Word processing EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT
E-book PDF/TXT/CHM/DOC/EXCEL/EPUB/RTF/FB2
schedule Calendar
Input Standard Android keyboard, optional third-party input method (Chinese, Korean, Japanese, etc.)
Internet Browser -Chrome Lite
GOOGLE Market
Email
Gmail
Google talk


System Management Support OTA remote upgrade, U disk upgrade, SD upgrade (silent installation)
Original Android system with open root access for product customization and development
Customizable local or remote server management system
Support multiple third-party Android remote ad distribution systems
Support multi-channel serial devices, USB devices, IO control devices




Product Size: 150*85mm
Packed with static bag



Sunchip Android Embedded ARM Board RTC UART POE LAN 1000M USB TF Pcb Circuit Motherboard 2


Sunchip Android Embedded ARM Board RTC UART POE LAN 1000M USB TF Pcb Circuit Motherboard 3

Sunchip Office:
Sunchip Android Embedded ARM Board RTC UART POE LAN 1000M USB TF Pcb Circuit Motherboard 4





FAQ:

Q1: I need large quantities, so, can I have lower price?

A: We will lower your cost if you can order large quantities at a time, please contact our us for details.



Q2: Can you modify the standard product?

A: Sure, please submit your technical requirement and order quantity, we will modify the

product after audit.



Q3: Can we cooperate for customized project?

A: Yes. Sunchip is a company which support OEM/ODM service. We often deal with special case.



Q4: Can I pre-install APPs?

A: Sure, we can pre-install customers’ APP into the Android System.

Except for pre-install APPs, Sunchip also support to customize the boot logo and animation, revise the system model number and build number, set defaulted time zone and language etc.



Q5: How is the stability of product?

A: Our Android LCD is usually used in retailing and industrial grade/application;

It can work 7*24h without crash.

The 4G or Wi-Fi or Ethernet can also work stable for long time.



Q6: Any optional version for the product?

A: Yes, such as the android board models, RAM/ROM, OS Version, LCD module size, touch or not, brightness, WIFI/BT LAN and 4G, GPS etc.



Q7: How is your warranty policy?

A: 12-month.











SUNCHIP product list:

1, Android industrial Embedded board: RK3588, RK3566, RK3568, RK3288, RK3399,

RK3328, RKPX30, RK3188, RK3128 etc.

2, 【4K】Android media player box for digital signage advertising: RK3399, RK3288, RK3328.

3, 【8K】Android Player Box for Industrial-Control Application: RK3588.

4, Stretched lcd Display signage, support ODM.

5, Open frame LCD display signage: 8inch, 10.1inch, 13.3inch, 15.6inch, 21.5inch etc.

6, SKD Kit: Android board + LCD panel with touch or not:

7inch, 8inch, 10.1inch, 13.3inch, 15.6inch.

7, Other types of Wall Mounted / Floor Standing / Desktop LCD digital signage.

8, Embedded touch desk: such as 32inch.

9, Face recognition temperature detection terminal machine: such as 8inch.



[you can also tell us your requirements, so that we advise you a matched solution]
