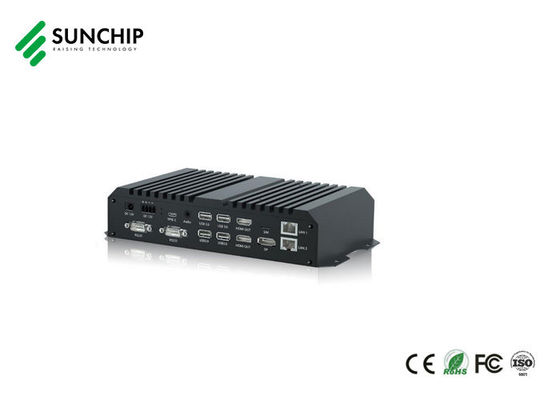

Octa Board Media Player Box ADW 8K RK3588 Dual LAN 5G WIFI BT5.0 HD DP LVDS Embedded

Octa Board Media Player Box ADW 8K RK3588 Dual LAN 5G WIFI BT5.0 HD DP LVDS Embedded
Octa Board Media Player Box ADW 8K RK3588 Dual LAN 5G WIFI BT5.0 HD DP LVDS Embedded Octa Board Media Player Box ADW 8K RK3588 Dual LAN 5G WIFI BT5.0 HD DP LVDS Embedded Octa Board Media Player Box ADW 8K RK3588 Dual LAN 5G WIFI BT5.0 HD DP LVDS Embedded Octa Board Media Player Box ADW 8K RK3588 Dual LAN 5G WIFI BT5.0 HD DP LVDS Embedded Octa Board Media Player Box ADW 8K RK3588 Dual LAN 5G WIFI BT5.0 HD DP LVDS Embedded Octa Board Media Player Box ADW 8K RK3588 Dual LAN 5G WIFI BT5.0 HD DP LVDS Embedded

Large Image :  Octa Board Media Player Box ADW 8K RK3588 Dual LAN 5G WIFI BT5.0 HD DP LVDS Embedded

Product Details:
Place of Origin: CHINA
Brand Name: SUNCHIP & ADW
Certification: CE FCC ROHS ISO9001
Model Number: AD-0160 BOX
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Negotiable
Packaging Details: Carton Box or Wooden Box
Delivery Time: Samples: 1-3 days; MP: 30 days;
Payment Terms: T/T, Western Union, PayPal
Supply Ability: 6000PCS/Month

Octa Board Media Player Box ADW 8K RK3588 Dual LAN 5G WIFI BT5.0 HD DP LVDS Embedded

Description
CPU: RK3588 8-core CPU 8nm Process 4 Cortex-A76 And 4 Cortex-A55 GPU: ARM Mali G610 MP4 GPU
OS: Android 12 USB3.0: X 4
Display Port: HD, DP, LVDS, Material: Metal Case
LAN: Support 1000M Wired Network Network*2 4G LTE: Support Wireless 4G Network
High Light:

Octa Board Media Player Box

,

WIFI BT5.0 Media Player Box

,

RK3588 Dual LAN Media Player Box





ADW 8K Media Player Box Octa board RK3588 Android12 Dual LAN 5G WIFI BT5.0 HD DP LVDS Embedded Industrial Control player





Product Model: AD-0160 BOX

Product Name: RK3588 Edge Computing Device







Main Features:

1, Octa-Core, 8K output, 4K hardware decoding;

2, Main frequency up to 2.4GhZ;

3, RK3588 performance is higher 3.3 times than RK3399

4, Double-layer board;

5, Android 12 OS;

6, RAM: 8GB/16GB optional

7, ROM: 32GB/64GB/128GB/256GB optional

8, Dimension 244*128*49.5mm



9, Rich interfaces:

HDMI output *2; DP output *1; HDMI input *1;

USB 3.0 *4; RS232 *2; RS485 *1; DC-IN *2; Audio *1; Type-C *1; Speaker *1;

1000M Ethernet *2; 4G SIM Card Slot *1;



10, Network: 2.4G & 5G WIFI; Bluetooth 5.0; 4G LTE Optional; Dual 1000M LAN;

Build-in M.2 SSD Extended interface (SSD optional)





Product OverView:

  • 1, Intelligent industrial all-in-one large board, using Rockchip RK3588 octa-core chip solution.
  • 2, Support Android 12 system. Enhanced power management circuit, support common external devices, rich interface, stable performance. 3, Suitable for intelligent remote network control: class industrial, medical, large advertising machines, educational video terminals and other equipment.









RK3588 Octa-Core 8K output 4K hardware decoding Android 12 Embedded System board WIFI 5G BT 5.0 SSD Industrial Media box





Product Features:

  • 1, Support multiplexed display (single-port maximum support 7680*4320 60HZ)
  • 2, Multiple interaction mode interface: capacitive touch, infrared remote control, USB keyboard and mouse, multi-point optical touch.
  • 3, Multiple network interfaces: Ethernet, wireless WIFI, Bluetooth.
  • 4, Multiple USB interfaces, RS3232, RS485 serial ports.
  • 5, Strong resistance to electromagnetic interference and electromagnetic compatibility.







Product Specification:



System CPU RK3588 8-core CPU 8nm process 4 Cortex-A76 and 4 Cortex-A55
GPU ARM Mali G610 MP4 GPU
NPU 6Tops, int4/int8/int16/FP16
MCU for low power control
RAM 8GB/16G (optional)
Memory 32GB/64GB/128GB/256GB (optional)
Operating System Android 12



























Network WiFi IEEE 802.11 a/b/g/n/ac
Dual wired network Support 1000M wired network network*2
Mobile Network Support wireless 4G network
Bluetooth BT5.0









Motherboard Interface TYPE_C Standard Type_C*1
DC holder*1 Front 5.5/2.5mm
DC terminal input interface*1 4PIN pitch 3.81 terminal power input port*1
Headphones 3.5MM support stereo with MIC headphone output port
USB 3.0 USB 3.0_A port*2
HDMI_OUT A port Support HDMI 2.1 _OUT*1 (maximum support 7680*4320 60HZ output for single HDMI display)
SIM card SIM card port*1
Wired network port RJ45 network port*1
Horn Dual channel 4 Europe 5W speaker interface 4PIN spacing 3.81 green terminals * 1
HDMI_IN Support HDMI 2.0_4K input*1







































Sub-board interface RS232 COM port RS232 output port DB9*2
USB 3.0 USB 3.0_A port*2
HDMI_OUT A port Support HDMI 4K60HZ output*1
DP display interface DP display output interface*1 7680x4320@30Hz output*1
Wired network port RJ45 network port*1
M.2 internal SSD interface M.2 built-in SSD expansion interface*1
RS485 RS485 3PIN pitch 3.81 green terminal block*1

























Environmental parameters General working temperature/humidity -20℃-60℃, 30%RH-60%RH
General storage temperature/humidity 22±4℃ , 30%RH-60%RH
Housing Color Black
Material Profile
Size Motherboard Size 200*125mm
Sub-board size 200*125mm
Whole machine size 244*128*49.5mm
Other Indicator light Red and blue 2 colors
Button Upgrade key*1
  Power adapter DC:12V/3A



























Product Pictures:
