Product Details:
|
| CPU&GPU: | Rockchip RK3568 Quad-core 64-bit Cortex-A55, GPU Mali-G52 | Frequency: | Up To 2.0 GHz |
|---|---|---|---|
| RAM: | DDR4 2G/4G Optional | Internal Memory: | EMMC 8GB/16G/32G/64G Optional (label 16GB) |
| Display Interface: | LVDS/MIPI/EDP | Screen Voltage: | Support 3.3V/5V/12V Optional |
| Operating System: | Android 11 | Language: | Multi-language |
| Highlight: | RK3568 ARM development board,EDP arm development board,LVDS arm microcontroller board |
||

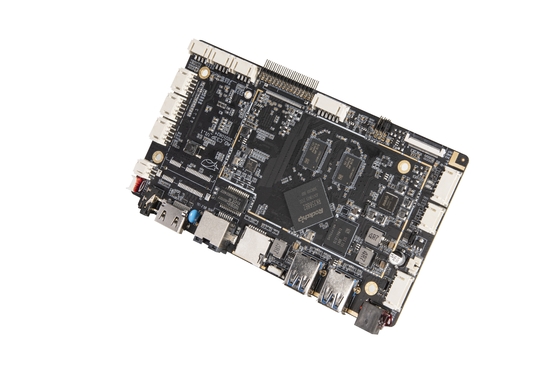

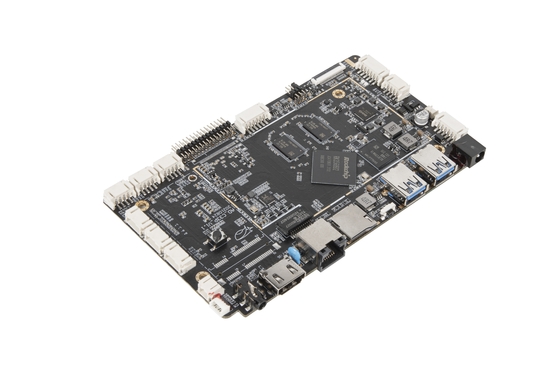

Android 11 RK3568 Android Decoding Driver DDR4 LVDS EDP MIPI 4K Development ARM Board
Model No: AD-C33P-V1.1
Sunchip is one of Apple's provider.We have provided advertising screen to Apple.
We are professional manufacturer and designer of LCD digital signage and Android board which was established in 2012,
we have more than 80 engineers focus on Android mainboard's software and hardware R & D, commercial media player/box(support Android and Linux OS), also provide SKD parts for LCD digital signage.
The large board of the intelligent industrial all-in-one machine adopts the Rockchip RK3568 quad-core chip solution. Support Android 11 system. Enhanced power management circuit. Support commonly used external devices. Rich interfaces and stable performance. Suitable for intelligent remote network control: equipment such as industrial, medical, large advertising machines, educational video terminals and other equipment.
Basic hardware specifications
| CPU | Rockchip RK3568 quad-core 64-bit Cortex-A55, GPU Mali-G52 |
| Main frequency | Up to 2.0 GHz |
| RAM | DDR4 2G/4G optional |
| Built-in storage capacity | EMMC 8GB/16G/32G/64G optional (label 16GB) |
Display interface
| LVDS interface (single-channel, 6-bit dual-channel, 8-bit dual-channel). Support maximum resolution 1920x1080, support 7"-84" display |
| MIPI interface | |
| EDP interface | |
| Screen voltage | Support 3.3V/5V/12V optional |
| Touch screen | Provide I2C interface (can support multi-point resistive touch, multi-point capacitive touch). |
The internet
| With RJ45 interface, support 10/100/1000M Ethernet. |
| Equipped with Wifi&BT module, supporting Wi-Fi 802.11b/g/n protocol. Support BT4.0 | |
| Image rotation | Support 0 degree, 90 degree, 180 degree, 270 degree manual/auto rotation, support gravity sensor function |
| Real Time Clock | External real-time clock power supply battery |
Interface device
| Support MIPI interface camera, up to 500W pixels |
| 4 USB HOST, 1 USB OTG (support usb camera@500W usb printer, U disk, mouse, keyboard, standard usb peripherals) | |
| 3 groups of serial ports. Support external serial device module (NFC module, printer, card reader, etc.) | |
| TF card, maximum support 32GB | |
| Class D power amplifier: 3W*2 8 ohms, support microphone | |
| HDMI 2.0 output | |
| Audio | MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, 3GPP format |
| Video | Support 4K 60fps H.265/H.264/VP9 video decoding. Support 1080P 100fps H.265/H.264 video encoding. Support 8M ISP, support HDR. |
| Picture | Support JPG, BMP, PNG and other image format browsing and support rotation/slide show/picture zoom function |
| Power Adapter | Input: AC100-240V.50-60HZ, output: DC12V 3A |
Basic software specifications
| Operating system | Android 11 system |
| Basic software functions | Web browsing, web chat, email, e-book, resource manager |
| Sound effect mode | Clock, alarm clock, calculator, recording |
| Language support | Multi-lingual |
| Recording | Support MP3, WMA format recording |
Tool
| Calendar |
| Alarm Clock | |
| Calculator | |
| Note | |
| Weather + clock | |
| Recording | |
| Word processing | EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT |
| Ebook | PDF/TXT/CHM/DOC/EXCEL/EPUB/RTF/FB2 |
| Schedule | Calendar |
| Input | Standard Andriod keyboard, optional third-party input method (Chinese, Korean, Japanese, etc.) |
Network
| Browser -ChromeLite |
| GOOGLE Market | |
| Gmail | |
| Google talk | |
| System Management | Support OTA remote upgrade, U disk upgrade, SD upgrade (silent installation) |
| Original ecological Android system, open root permission, can carry out product customization development | |
| Customizable local or remote server management system | |
| Support a variety of third-party Android remote advertising systems | |
| Support multiple serial devices, USB devices | |
| Support dual-screen different display |
