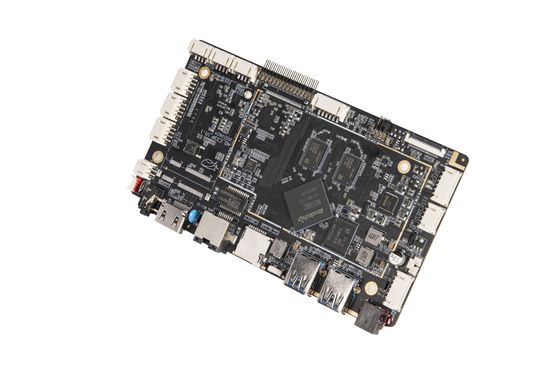

Quad Core RK3568 Android Decoding Driver DDR4 LVDS EDP MIPI 4K Embedded Integrated Board

Quad Core RK3568 Android Decoding Driver DDR4 LVDS EDP MIPI 4K Embedded Integrated Board
Quad Core RK3568 Android Decoding Driver DDR4 LVDS EDP MIPI 4K Embedded Integrated Board Quad Core RK3568 Android Decoding Driver DDR4 LVDS EDP MIPI 4K Embedded Integrated Board Quad Core RK3568 Android Decoding Driver DDR4 LVDS EDP MIPI 4K Embedded Integrated Board Quad Core RK3568 Android Decoding Driver DDR4 LVDS EDP MIPI 4K Embedded Integrated Board Quad Core RK3568 Android Decoding Driver DDR4 LVDS EDP MIPI 4K Embedded Integrated Board

Large Image :  Quad Core RK3568 Android Decoding Driver DDR4 LVDS EDP MIPI 4K Embedded Integrated Board

Product Details:
Place of Origin: CN
Brand Name: ADW
Certification: CE, ROHS, FCC, ISO9001
Model Number: AD-C33P
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: USD51~USD71/pc
Packaging Details: Carton / Wooden case
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1,000,000 Pieces per Month

Quad Core RK3568 Android Decoding Driver DDR4 LVDS EDP MIPI 4K Embedded Integrated Board

Description
CPU&GPU: Rockchip RK3568 Quad-core 64-bit Cortex-A55, GPU Mali-G52 Frequency: Up To 2.0 GHz
RAM: DDR4 2G/4G Optional Internal Memory: EMMC 8GB/16G/32G/64G Optional (label 16GB)
Display Interface: LVDS/MIPI/EDP Screen Voltage: Support 3.3V/5V/12V Optional
Operating System: Android 11 Language: Multi-language
High Light:

RK3568 Android Decoding Driver

,

EDP Android Decoding Driver

,

MIPI 4K Embedded Integrated Board


Rockchip Quad-core RK3568 Android Decoding Driver DDR4 LVDS EDP MIPI 4K Embedded Integrated Board

Model No: AD-C33P-V1.1


Sunchip is one of Apple's provider.We have provided advertising screen to Apple.
We are professional manufacturer and designer of LCD digital signage and Android board which was established in 2012,
we have more than 80 engineers focus on Android mainboard's software and hardware R & D, commercial media player/box(support Android and Linux OS), also provide SKD parts for LCD digital signage.


Overview:

The large board of the intelligent industrial all-in-one machine adopts the Rockchip RK3568 quad-core chip solution. Support Android 11 system. Enhanced power management circuit. Support commonly used external devices. Rich interfaces and stable performance. Suitable for intelligent remote network control: equipment such as industrial, medical, large advertising machines, educational video terminals and other equipment.



Characteristic:

  • Support 7-inch to 84-inch various LVDS interface displays (point-to-point full HD display 1920*1080).
  • Support EDP interface display screen.
  • Support MIPI interface display screen.
  • Multiple network interfaces: Ethernet, wireless Wifi, Bluetooth, 4G.uMultiple interactive mode interfaces: capacitive touch, infrared touch, infrared remote control, USB keyboard and mouse, multi-point optical touch.
  • Multi-channel USB interface, serial port.
  • Strong anti-electromagnetic interference and electromagnetic compatibility.


Basic hardware specifications


CPURockchip RK3568 quad-core 64-bit Cortex-A55, GPU Mali-G52
Main frequencyUp to 2.0 GHz
RAMDDR4 2G/4G optional
Built-in storage capacityEMMC 8GB/16G/32G/64G optional (label 16GB)

Display interface





LVDS interface (single-channel, 6-bit dual-channel, 8-bit dual-channel). Support maximum resolution 1920x1080, support 7"-84" display
MIPI interface
EDP interface
Screen voltageSupport 3.3V/5V/12V optional
Touch screen

Provide I2C interface (can support multi-point resistive touch, multi-point capacitive touch).
Support USB multi-point infrared touch, multi-point acoustic wave touch, multi-point optical touch.

The internet



With RJ45 interface, support 10/100/1000M Ethernet.
Equipped with Wifi&BT module, supporting Wi-Fi 802.11b/g/n protocol. Support BT4.0
Image rotationSupport 0 degree, 90 degree, 180 degree, 270 degree manual/auto rotation, support gravity sensor function
Real Time ClockExternal real-time clock power supply battery





Interface device







Support MIPI interface camera, up to 500W pixels
4 USB HOST, 1 USB OTG (support usb camera@500W usb printer, U disk, mouse, keyboard, standard usb peripherals)
3 groups of serial ports. Support external serial device module (NFC module, printer, card reader, etc.)
TF card, maximum support 32GB
Class D power amplifier: 3W*2 8 ohms, support microphone
HDMI 2.0 output
AudioMP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, 3GPP format
VideoSupport 4K 60fps H.265/H.264/VP9 video decoding. Support 1080P 100fps H.265/H.264 video encoding. Support 8M ISP, support HDR.
PictureSupport JPG, BMP, PNG and other image format browsing and support rotation/slide show/picture zoom function
Power AdapterInput: AC100-240V.50-60HZ, output: DC12V 3A



Basic software specifications


Operating systemAndroid 11 system
Basic software functionsWeb browsing, web chat, email, e-book, resource manager
Sound effect modeClock, alarm clock, calculator, recording
Language supportMulti-lingual
RecordingSupport MP3, WMA format recording





Tool







Calendar
Alarm Clock
Calculator
Note
Weather + clock
Recording
Word processingEPUB, WORD, EXCEL, POWERPOINT, PDF, TXT
EbookPDF/TXT/CHM/DOC/EXCEL/EPUB/RTF/FB2
ScheduleCalendar
InputStandard Andriod keyboard, optional third-party input method (Chinese, Korean, Japanese, etc.)



Network





Browser -ChromeLite
GOOGLE Market
Email
Gmail
Google talk
System ManagementSupport OTA remote upgrade, U disk upgrade, SD upgrade (silent installation)
Original ecological Android system, open root permission, can carry out product customization development
Customizable local or remote server management system
Support a variety of third-party Android remote advertising systems
Support multiple serial devices, USB devices
Support dual-screen different display


Quad Core RK3568 Android Decoding Driver DDR4 LVDS EDP MIPI 4K Embedded Integrated Board 0Quad Core RK3568 Android Decoding Driver DDR4 LVDS EDP MIPI 4K Embedded Integrated Board 1

Quad Core RK3568 Android Decoding Driver DDR4 LVDS EDP MIPI 4K Embedded Integrated Board 2Quad Core RK3568 Android Decoding Driver DDR4 LVDS EDP MIPI 4K Embedded Integrated Board 3Quad Core RK3568 Android Decoding Driver DDR4 LVDS EDP MIPI 4K Embedded Integrated Board 4
