Product Details:
Place of Origin: CHINA
Brand Name: SUNCHIP ADW
Certification: CE ROHS FCC
Model Number: AD-C33P
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Bubble bag
Delivery Time: Samples: 1-3 days; MP: 25 days;
Payment Terms: T/T, Western Union, PayPal
Supply Ability: 30,000PCS

Android 11 Embedded ARM Board Mini PCIE UART Resolution 1920x1080P RK3568 From Sunchip

Description
CPU Solution: RK3568 Quad-Core OS: ANDROID 11
DDR/EMMC: 2GB RAM/16GB ROM Display Interface: LVDS/EDP/MIPI/HD OUT For Display
Serial Port: 3*Serial Port (UART3, UART4, UART7) WIFI/Bluetooth: 2.4G WIFI & Bluetooth 4.0
Ethernet: 10/100/1000M Ethernet 4G Network: Support 4G LTE MINI PCIE
USB: 1*USB 3.0, 1*USB OTG, 3*4PIN USB RTC: YES
G-Sensor: YES Touch: Support Touch Interface
High Light:

Android 11 Embedded ARM Board

,

RK3568 Embedded ARM Board

,

1920x1080P Embedded ARM Board



Android 11 Embedded ARM Board Mini PCIE UART Resolution 1920x1080P RK3568 system board from Sunchip



Sunchip has more than 10-year experience on PCBA design and mass-production, also passed the ISO9001 certification. Our office &factory have more than 3500 square meters.

Sunchip can provide one-stop service, from PCB layout, prototype, production, PCBA SMT, testing, housing design, assembly, software customization, QC control, after-sale etc.



Quad-core RK3568 Android Decoding Driver Integrated Board Specification(Model No.:AD-C33P-V1.1)

Overview:
The large board of the intelligent industrial all-in-one machine adopts the
Rockchip RK3568 quad-core chip solution. Support Android 11 system.
Enhanced power management circuit. Support commonly used external devices.
Rich interfaces and stable performance. Suitable for intelligent remote network
control: equipment such as industrial, medical, large advertising machines,
educational video terminals and other equipment.

Characteristic:
1, Support 7-inch to 84-inch various LVDS interface displays (point-to-point
full HD display 1920*1080).

2, Support EDP interface display screen.
3, Support MIPI interface display screen.

4, Multiple network interfaces: Ethernet, wireless Wifi, Bluetooth, 4G.
5, Multiple interactive mode interfaces: capacitive touch, infrared touch,
infrared remote control, USB keyboard and mouse, multi-point optical
touch.

6, Multi-channel USB interface, serial port.

7, Strong anti-electromagnetic interference and electromagnetic
compatibility

Basic hardware specifications:
CPU Rockchip RK3568 quad-core 64-bit Cortex-A55, GPU Mali-G52
Main frequency Up to 2.0 GHz
RAM DDR4 2G/4G optional
Built-in storage capacity EMMC 8GB/16G/32G/64G optional (label 16GB)

Display interface





LVDS interface (single-channel, 6-bit dual-channel, 8-bit dual-channel). Support maximum resolution 1920x1080, support 7"-84" display
MIPI interface
EDP interface
Screen voltage Support 3.3V/5V/12V optional
Touch screen

Provide I2C interface (can support multi-point resistive touch, multi-point capacitive touch).

Support USB multi-point infrared touch, multi-point acoustic wave touch, multi-point optical touch.

The internet



With RJ45 interface, support 10/100/1000M Ethernet.
Equipped with WIFI &BT module, supporting Wi-Fi 802.11b/g/n protocol. Support BT4.0
Image rotation Support 0-degree, 90-degree, 180-degree, 270-degree manual/auto rotation, support gravity sensor function
Real Time Clock External real-time clock power supply battery





Interface device







Support MIPI interface camera, up to 500W pixels
4 USB HOST, 1 USB OTG (support usb camera@500W usb printer, U disk, mouse, keyboard, standard usb peripherals)
3 groups of serial ports. Support external serial device module (NFC module, printer, card reader, etc.)
TF card, maximum support 32GB
Class D power amplifier: 3W*2 8 ohms, support microphone
HD 2.0 output
Audio MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, 3GPP format
Video Support 4K 60fps H.265/H.264/VP9 video decoding. Support 1080P 100fps H.265/H.264 video encoding. Support 8M ISP, support HDR.
Picture Support JPG, BMP, PNG and other image format browsing and support rotation/slide show/picture zoom function
Power Adapter Input: AC100-240V.50-60HZ, output: DC12V 3A



Basic software specifications:



Operating system Android 11 system
Basic software functions Web browsing, web chat, email, e-book, resource manager
Sound effect mode Clock, alarm clock, calculator, recording
Language support Multi-lingual
Recording Support MP3, WMA format recording





Tool







Calendar
Alarm Clock
Calculator
Note
Weather + clock
Recording
Word processing EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT
E-book PDF/TXT/CHM/DOC/EXCEL/EPUB/RTF/FB2
Schedule Calendar
Input Standard Android keyboard, optional third-party input method (Chinese, Korean, Japanese, etc.)



Network





Browser -Chrome Lite
GOOGLE Market
Email
Gmail
Google talk
System Management Support OTA remote upgrade, U disk upgrade, SD upgrade (silent installation)
Original ecological Android system, open root permission, can carry out product customization development
Customizable local or remote server management system
Support a variety of third-party Android remote advertising systems
Support multiple serial devices, USB devices
Support dual-screen different display

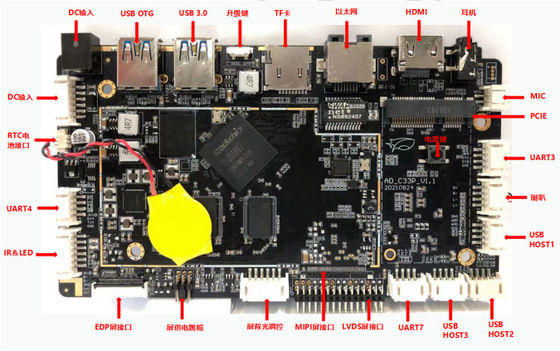

Android board pictures:

Android 11 Embedded ARM Board Mini PCIE UART Resolution 1920x1080P RK3568 From Sunchip 0


Android 11 Embedded ARM Board Mini PCIE UART Resolution 1920x1080P RK3568 From Sunchip 1





Rockchip RK3568 Solution: ANDROID 11 OS,

2GB RAM/16GB ROM, Only Main board (no Sub small board).

Quad-Core, LVDS/EDP/MIPI/HD OUT for display, 3*Serial Port (UART3, UART4, UART7),

2.4G WIFI & Bluetooth 4.0, 10/100/1000M Ethernet, Support 4G LTE MINI PCIE, 1*USB 3.0,

1*USB OTG, 3*4PIN USB, 12V/3A.

Support rotation by manually or automatically; RTC; Support touch;
