|Place Of Origin:||Guangdong, China||Model Number:||AD-B02 BOX|
|Network:||Support 4G Mobile Network||Resolution:||1920*1080|
|Warranty:||1 Year||Product Name:||Advertising Media Player Box|
|RAM ROM:||2GB 8GB||OSD Language:||Multi-language Support|
Multi Language Media Player Box,
Support 4G Media Player Box
Mini Android HD Media Player Box Multi Language Support 4G LTE Optional
The network controller of information release system is based on the network platform B / S architecture. Its unique distributed area management technology truly realizes the communication mode of different terminals to distinguish audiences in the same system, so that the broadcast of advertisements can distinguish different audiences, and carry out targeted broadcast of advertisements and release of multi-media information. Through the information release management software, thousands of network advertising machines distributed on the network platform can be managed and controlled remotely, which has broad application prospects in the advertising broadcasting and information release markets such as building TV, banks, communities, stations and airports.

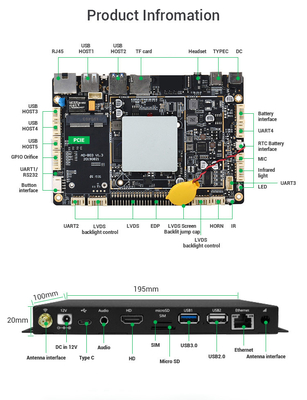

|System||CPU||RK3288 quad-core Cortex-A17 @1.8G GPU Mali T764|
|Operation system||Android 6.0 (Linux optional)|
|Network||WiFi||802.11b/g/n (2.4G/5G optional)|
|Mobile network||Support full Netcom 4G (optional)|

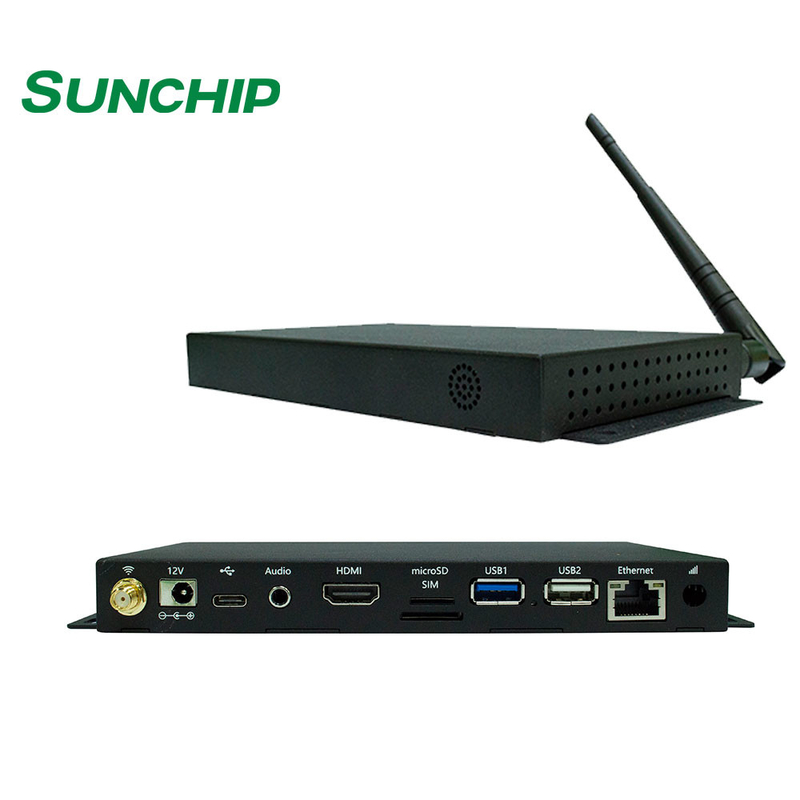

|Interface||USB interface||Support USB host*2|
|Micro USB||USB_Debug interface*1|
|DC||DC power 12V input|
|SD card||Maximum support 64GB|
|HD||Support HD output|
|Screen interface||EDP screen interface / LVDS screen interface(optional)|
|Speaker||8Ω*5W * 2(optional)|
|Infrared remote control||Support infrared remote control|
|USB port expander||USB port expandert*1(optional)|
|Headset||3.5mm stereo headphone output|
|Media play||Video format||MPEG-1,MPEG-2,MPEG-4,H.263,H.264,H.265,VC1,VP8,RV etc.,support up to 3840x2160|
|Audio format||MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP etc.|
|Text processing||EPUB, WORD, EXCEL, POWERPOINT, PDF,|
|APK install||APK installer|
|Root permission||Original ecological Android system, open root permissions, customizable development|
|Remote control||Real-time remote monitoring, system crash self recovery, 7*24 hours unattended|
|OTA upgrade||Support OTA remote upgrades|
|Other||Double screen display||Support Double screen display(optional)|
|Gravity induction||Support 0°90°180°270°manual automatic rotation|
