Product Details:
|
| Place Of Origin: | Guangdong, China | Model Number: | AD-B03BOX |
|---|---|---|---|
| CPU: | Rockchip RK3399 | Material: | Metal |
| Network: | Support 4G Mobile Network | Resolution: | 4K |
| Warranty: | 1 Year | Product Name: | Advertising Media Player Box |
| RAM ROM: | 2GB 4GB 8GB Optional | OSD Language: | Multi-language Support |
| High Light: | RK3399 Android Media Player Box,Media Player Box,RK3399 Android 10.1 Commercial Advertising Player |
||

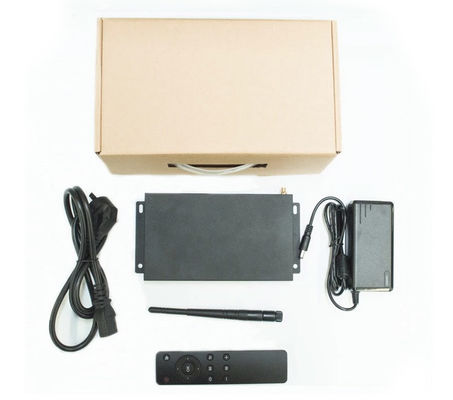

RK3399 Android 10.1 HD Media Player Box Commercial Advertising Player
The digital signage system is a brand-new media concept, which refers to the public places where large shopping malls, supermarkets, hotel lobbies, restaurants, cinemas and others converge, through large-screen terminal display devices, to publish multimedia information of business, finance and entertainment. Professional audio-visual system. Its purpose is to broadcast advertising information to a specific group of people in a specific physical place and a specific time period, so that it has the effect of advertising.
Features:
1. Authority management. Different users have different rights to use and control terminal display devices.
2. Element (media content) management. Through this function, users can add, modify, and delete elements.
3. Download or streaming media management. Through this function, users can add, modify, delete media files or streaming media download or real-time playback.
4. Playlist management. Through this function, users can customize the play time sequence of media and schedule play and so on.
5. Play terminal management. Through this function, users can manage the playback, stop, pause, volume adjustment, IP address, timing switch time, video layout or other media playback layout of the network advertising machine terminal, etc., and it should be dynamically changeable.
6. The status of the playback terminal is displayed. It should be possible to know the playback status, disk information, playback sequence, download status, etc. of the playback terminal (network advertising player) online.
| System | CPU | RK3399 dual core Cortex-A72+quad core Cortex-A53,GPU ARM Mali-T860MP4 | ||||||||||
| RAM | LPDDR4 4GB/8GB(optional) | |||||||||||
| Flash | 16GB/32GB/64GB(optional) | |||||||||||
| Operation System | Android 7.1 (Linux OS optional) | |||||||||||
| Network | WiFi | 802.11a/b/g/n/ ac (2.4G/5G optional) | ||||||||||
| Cellular | 4G LTE FDD/LTE TDD/WCDMA/GSM (optional) | |||||||||||
| Bluetooth | Bluetooth 4.0 | |||||||||||
| Ethernet | 10M/100M/1000M Ethernet | |||||||||||
| Interface | USB port | Support USB2.0 host*1 | ||||||||||
| USB port | Support USB3.0 host*1 | |||||||||||
| Type-c interface | type-c*1 | |||||||||||
| DC | DC power supply 12V in | |||||||||||
| SD Card | TF Card (micro SD card), up to 64GB | |||||||||||
| HD | Support HD_4K 2.0 out | |||||||||||
| Display interface | EDP interface_2K output /LVDS interface_1080P output(optional) | |||||||||||
| Speaker interface | 8Ω 5W*2(optional) | |||||||||||
| UART interface | UART2 interface*1(optional) | |||||||||||
| IR Remote Control | Support IR Remote Control | |||||||||||
| USB extension port | Support USB extension host*1(optional) | |||||||||||
| RJ45 | Ethernet port | |||||||||||
| AUDIO Out | 1*3.5mm Jack Stereo headphone output | |||||||||||
FAQ
1. who are we?
We are based in Guangdong, China, start from 2011,sell to Domestic Market(40.00%),North America(21.00%),Western Europe(8.00%),Eastern Asia(6.00%),Northern Europe(6.00%),Southeast Asia(5.00%),South America(3.00%),Eastern Europe(2.00%),Oceania(2.00%),Mid East(2.00%),Central America(2.00%),Africa(00.00%),Southern Europe(00.00%),South Asia(00.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Digital Signage/Advertising Machine,Commercial Media Box,ARM Board
4. why should you buy from us not from other suppliers?
1. Long histroy OEM&ODM service to branded customers 2. More than 100 R&D rngineers 3. products are compliant with CE, FCC and RoHS standards 4. Fully experience in design and manufature Andriod based customized products.
