|CPU Solution:||RK3568 Quad-Core||OS:||ANDROID 11|
|DDR/EMMC:||2GB RAM/16GB ROM||Display Interface:||LVDS/EDP/MIPI/HD OUT For Display|
|Serial Port:||3*Serial Port (UART3, UART4, UART7)||WIFI/Bluetooth:||2.4G WIFI & Bluetooth 4.0|
|Ethernet:||10/100/1000M Ethernet||4G Network:||Support 4G LTE MINI PCIE|
|USB:||1*USB 3.0, 1*USB OTG, 3*4PIN USB||RTC:||YES|
|G-Sensor:||YES||Touch:||Support Touch Interface|
1920x1080P RK3568 Embedded ARM Board,
2GB RAM Android Embedded Board,
Multi channel Embedded ARM Board

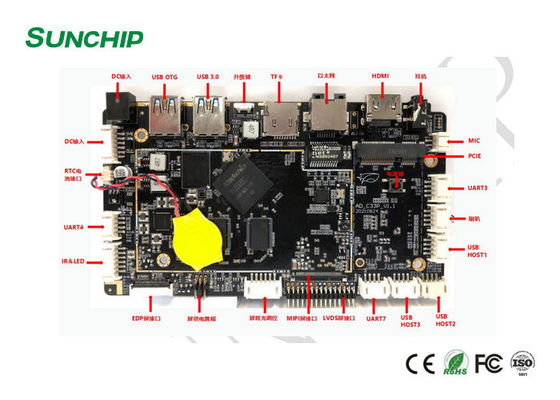

Android 11 Embedded ARM Board Mini PCIE UART Resolution 1920x1080P RK3568 system board from Sunchip
Sunchip is a professional android board designer/manufacturer in Shenzhen, China.
We have a team that includes more than 150 people. In this team, R&D has more than 80 employees that involving hardware engineers (layout, debugging), software engineers (Driver, Kernel, testing, APK), ID designer and Mechanical Engineers.
Sunchip has more than 10-year experience on PCBA design and mass-production, also passed the ISO9001 certification. Our office &factory have more than 3500 square meters.
Sunchip can provide one-stop service, from PCB layout, prototype, production, PCBA SMT, testing, housing design, assembly, software customization, QC control, after-sale etc.
|CPU||Rockchip RK3568 quad-core 64-bit Cortex-A55, GPU Mali-G52|
|Main frequency||Up to 2.0 GHz|
|RAM||DDR4 2G/4G optional|
|Built-in storage capacity||EMMC 8GB/16G/32G/64G optional (label 16GB)|
|LVDS interface (single-channel, 6-bit dual-channel, 8-bit dual-channel). Support maximum resolution 1920x1080, support 7"-84" display|
|Screen voltage||Support 3.3V/5V/12V optional|
Provide I2C interface (can support multi-point resistive touch, multi-point capacitive touch).
Support USB multi-point infrared touch, multi-point acoustic wave touch, multi-point optical touch.
|With RJ45 interface, support 10/100/1000M Ethernet.|
|Equipped with WIFI &BT module, supporting Wi-Fi 802.11b/g/n protocol. Support BT4.0|
|Image rotation||Support 0-degree, 90-degree, 180-degree, 270-degree manual/auto rotation, support gravity sensor function|
|Real Time Clock||External real-time clock power supply battery|
|Support MIPI interface camera, up to 500W pixels|
|4 USB HOST, 1 USB OTG (support usb camera@500W usb printer, U disk, mouse, keyboard, standard usb peripherals)|
|3 groups of serial ports. Support external serial device module (NFC module, printer, card reader, etc.)|
|TF card, maximum support 32GB|
|Class D power amplifier: 3W*2 8 ohms, support microphone|
|HD 2.0 output|
|Audio||MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, 3GPP format|
|Video||Support 4K 60fps H.265/H.264/VP9 video decoding. Support 1080P 100fps H.265/H.264 video encoding. Support 8M ISP, support HDR.|
|Picture||Support JPG, BMP, PNG and other image format browsing and support rotation/slide show/picture zoom function|
|Power Adapter||Input: AC100-240V.50-60HZ, output: DC12V 3A|
Basic software specifications:
|Operating system||Android 11 system|
|Basic software functions||Web browsing, web chat, email, e-book, resource manager|
|Sound effect mode||Clock, alarm clock, calculator, recording|
|Recording||Support MP3, WMA format recording|
|Weather + clock|
|Word processing||EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT|
|Input||Standard Android keyboard, optional third-party input method (Chinese, Korean, Japanese, etc.)|
|Browser -Chrome Lite|
|System Management||Support OTA remote upgrade, U disk upgrade, SD upgrade (silent installation)|
|Original ecological Android system, open root permission, can carry out product customization development|
|Customizable local or remote server management system|
|Support a variety of third-party Android remote advertising systems|
|Support multiple serial devices, USB devices|
|Support dual-screen different display|
Rockchip RK3568 Solution: ANDROID 11 OS,
2GB RAM/16GB ROM, Only Main board (no Sub small board).
Quad-Core, LVDS/EDP/MIPI/HD OUT for display, 3*Serial Port (UART3, UART4, UART7),
2.4G WIFI & Bluetooth 4.0, 10/100/1000M Ethernet, Support 4G LTE MINI PCIE, 1*USB 3.0,
1*USB OTG, 3*4PIN USB, 12V/3A.
Support rotation by manually or automatically; RTC; Support touch;
We mainly manufacture
WELCOME TO INQUIRY US ANY TIME. THANKS IN ADVANCE!
SUNCHIP mainly manufactures:
1, Android industrial Embedded ARM board: RK3588, RK3566, RK3568, RK3288, RK3399,
RK3328, RKPX30, RK3188, RK3128 etc.
2, 【4K】Android player box for digital signage advertising: RK3399, RK3288, RK3328 & RK3568.
3, 【8K】Android Player Box for Industrial-Control Application: RK3588.
4, Open frame LCD display signage: 8inch, 10.1inch, 13.3inch, 15.6inch, 21.5inch etc.
5, SKD Kit: Android board + LCD panel with touch or not:
7inch, 8inch, 10.1inch, 13.3inch, 15.6inch.
6, Other types of Wall Mounted / Floor Standing / Desktop LCD digital signage.
7, Embedded touch desk: such as 32inch.
8, Face recognition temperature detection terminal machine: such as 8inch.
[You can also tell us your detailed requirements, so that we advise you a matched solution]
